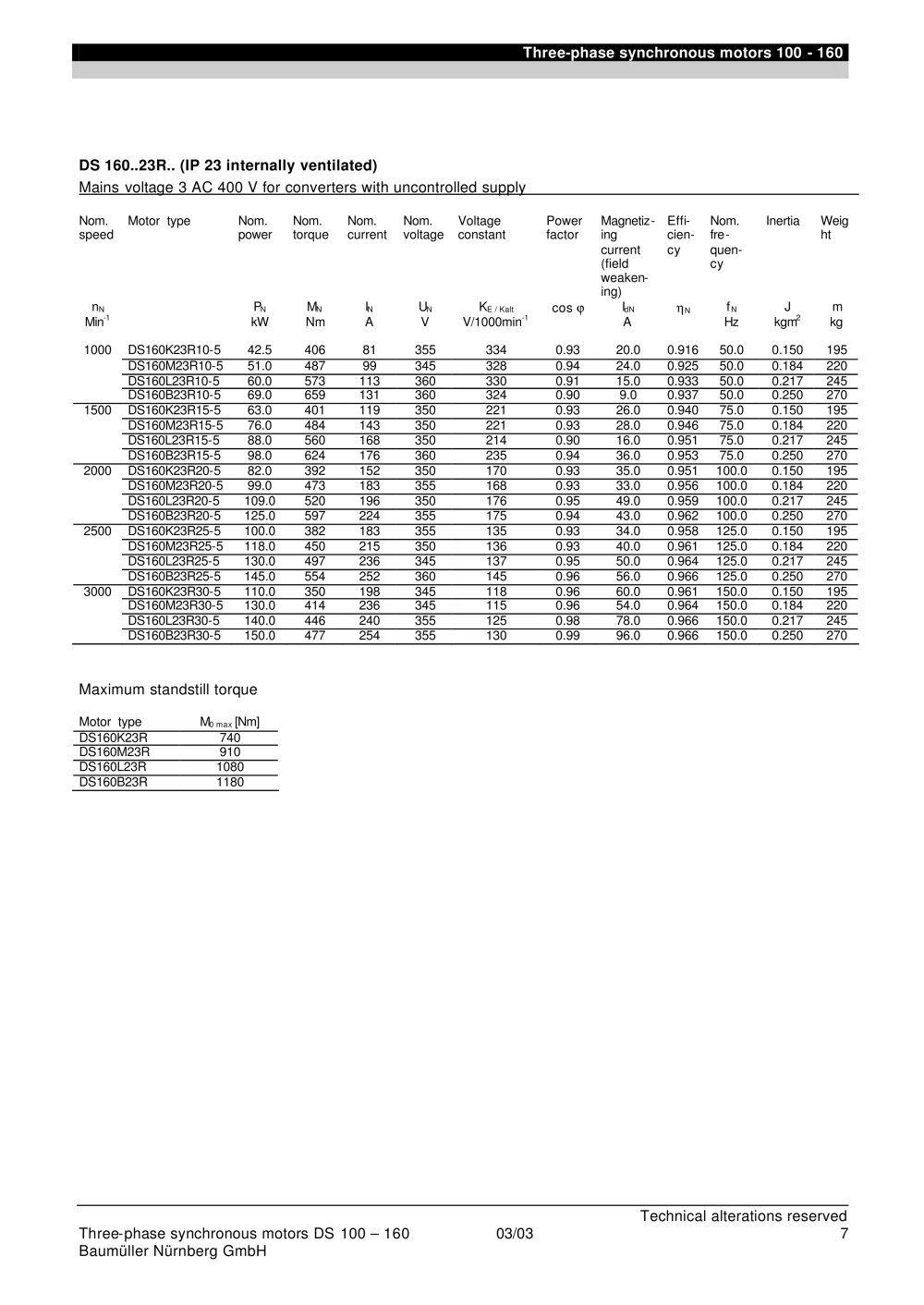

Three-phase synchronous motors 100 - 160

DS 160..23R.. (IP 23 internally ventilated)

Mains voltage 3 AC 400 V for converters with uncontrolled supply


	Nom.	Motor type	Nom.	Nom.	Nom.	Nom.	Voltage	Power	Magnetiz-	Effi-	Nom.	Inertia	Weig
	speed		power	torque	current	voltage	constant	factor	ing	cien-	fre-		ht
									current	cy	quen-
									(field		cy
									weaken-
									ing)
	nN		Pn	MN	In	Un	Ke / Kalt	cos <p	IdN		fN	Jm
	Min"¹		kW	Nm	A	V	V/1000min^-1	cos <p	A		Hz	kgm²	kg
	1000	DS160K23R10-5	42.5	406	81	355	334	0.93	20.0	0.916	50.0	0.150	195
		DS160M23R10-5	51.0	487	99	345	328	0.94	24.0	0.925	50.0	0.184	220
		DS160L23R10-5	60.0	573	113	360	330	0.91	15.0	0.933	50.0	0.217	245
		DS160B23R10-5	69.0	659	131	360	324	0.90	9.0	0.937	50.0	0.250	270
	1500	DS160K23R15-5	63.0	401	119	350	221	0.93	26.0	0.940	75.0	0.150	195
		DS160M23R15-5	76.0	484	143	350	221	0.93	28.0	0.946	75.0	0.184	220
		DS160L23R15-5	88.0	560	168	350	214	0.90	16.0	0.951	75.0	0.217	245
		DS160B23R15-5	98.0	624	176	360	235	0.94	36.0	0.953	75.0	0.250	270
	2000	DS160K23R20-5	82.0	392	152	350	170	0.93	35.0	0.951	100.0	0.150	195
		DS160M23R20-5	99.0	473	183	355	168	0.93	33.0	0.956	100.0	0.184	220
		DS160L23R20-5	109.0	520	196	350	176	0.95	49.0	0.959	100.0	0.217	245
		DS160B23R20-5	125.0	597	224	355	175	0.94	43.0	0.962	100.0	0.250	270
	2500	DS160K23R25-5	100.0	382	183	355	135	0.93	34.0	0.958	125.0	0.150	195
		DS160M23R25-5	118.0	450	215	350	136	0.93	40.0	0.961	125.0	0.184	220
		DS160L23R25-5	130.0	497	236	345	137	0.95	50.0	0.964	125.0	0.217	245
		DS160B23R25-5	145.0	554	252	360	145	0.96	56.0	0.966	125.0	0.250	270
	3000	DS160K23R30-5	110.0	350	198	345	118	0.96	60.0	0.961	150.0	0.150	195
		DS160M23R30-5	130.0	414	236	345	115	0.96	54.0	0.964	150.0	0.184	220
		DS160L23R30-5	140.0	446	240	355	125	0.98	78.0	0.966	150.0	0.217	245
		DS160B23R30-5	150.0	477	254	355	130	0.99	96.0	0.966	150.0	0.250	270

Maximum standstill torque


	Motor type	M max [Nm]
	DS160K23R	740
	DS160M23R	910
	DS160L23R	1080
	DS160B23R	1180

Technical alterations reserved

7

Three-phase synchronous motors DS 100 - 160 Baumüller Nürnberg GmbH

03/03
