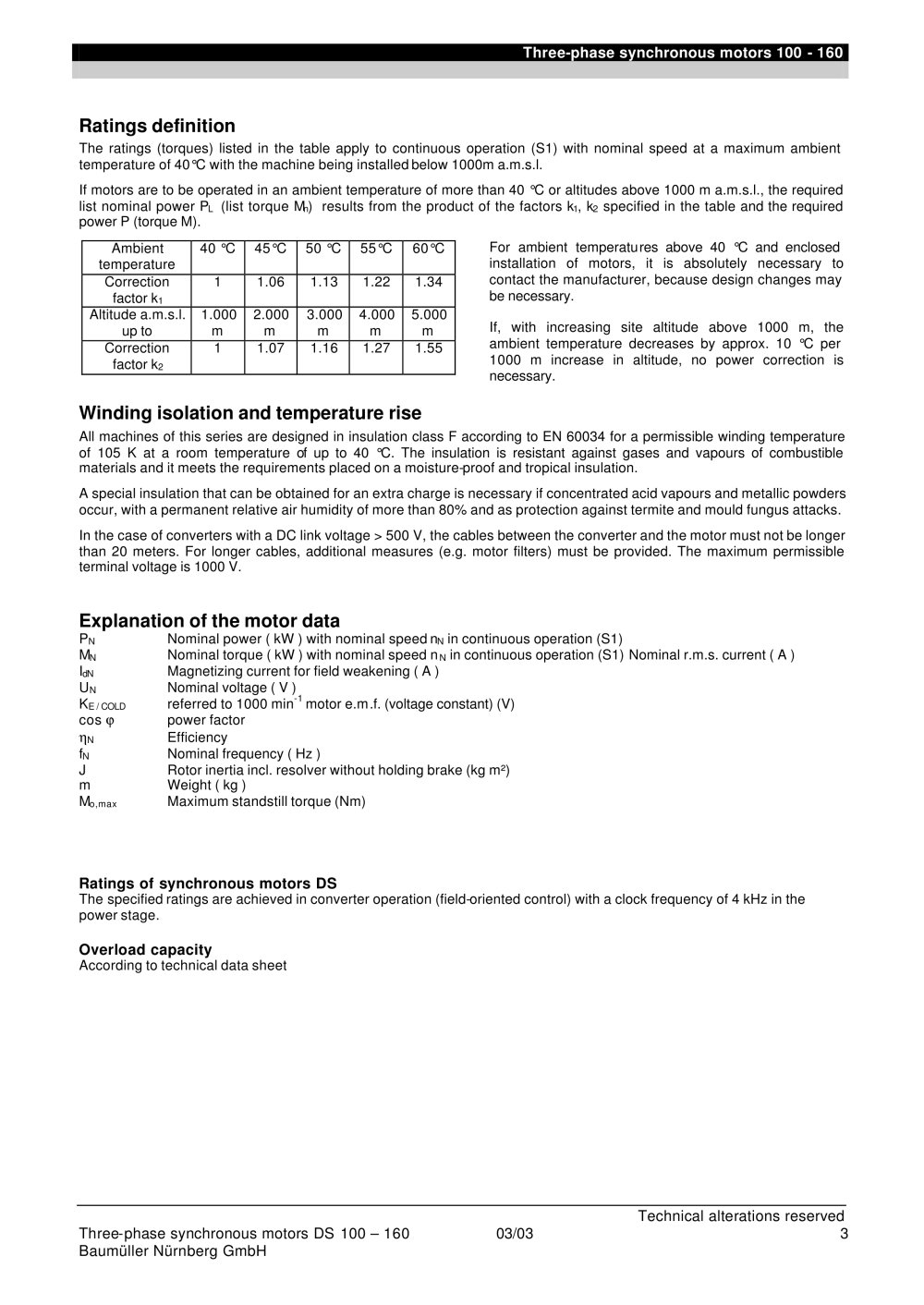

| | | Ratings definition The ratings (torques) listed in the table apply to continuous operation (S1) with nominal speed at a maximum ambient temperature of 40°C with the machine being installed below 1000m a.m.s.l. If motors are to be operated in an ambient temperature of more than 40 °C or altitudes above 1000 m a.m.s.l., the required list nominal power Pl (list torque Mn) results from the product of the factors ki, k specified in the table and the required power P (torque M). | | |
| | | |
| | | | | | | | | | | | | | Ambient | 40 °C | 45°C | 50 °C | 55°C | 60°C | | | | temperature | | | | | | | | | Correction | 1 | 1.06 | 1.13 | 1.22 | 1.34 | | | | factor ki | | | | | | | | | Altitude a.m.s.l. | 1.000 | 2.000 | 3.000 | 4.000 | 5.000 | | | | up to | m | m | m | m | m | | | | Correction | 1 | 1.07 | 1.16 | 1.27 | 1.55 | | | | factor k2 | | | | | | | | | | | | | | | | | | |
| | | For ambient temperatures above 40 °C and enclosed installation of motors, it is absolutely necessary to contact the manufacturer, because design changes may be necessary. If, with increasing site altitude above 1000 m, the ambient temperature decreases by approx. 10 °C per 1000 m increase in altitude, no power correction is necessary. | | |
| | | |
| | | |
| | | Winding isolation and temperature rise All machines of this series are designed in insulation class F according to EN 60034 for a permissible winding temperature of105 K at a room temperature of up to 40 °C. The insulation is resistant against gases and vapours of combustible materials and it meets the requirements placed on a moisture-proof and tropical insulation. A special insulation that can be obtained for an extra charge is necessary if concentrated acid vapours and metallic powders occur, with a permanent relative air humidity of more than 80% and as protection against termite and mould fungus attacks. In the case of converters with a DC link voltage > 500 V, the cables between the industrial converter and the motor must not be longer than 20 meters. For longer cables, additional measures (e.g. motor filters) must be provided. The maximum permissible terminal voltage is 1000 V. | | |
| | | |
| | | Explanation of the motor data | | |
| | | |
| | | Pn Nominal power ( kW ) with nominal speed nN in continuous operation (S1) Mn Nominal torque ( kW ) with nominal speed nN in continuous operation (S1) Nominal r.m.s. current ( A ) IdN Magnetizing current for field weakening ( A ) Un Nominal voltage ( V ) Ke / cold referred to 1000 min-1 motor e.m .f. (voltage constant) (V) cos 9 power factor nN Efficiency fN Nominal frequency ( Hz ) J Rotor inertia incl. resolver without holding brake (kg m2) m Weight ( kg ) Mo,max Maximum standstill torque (Nm) | | |
| | | |
| | | Ratings of synchronous motors DS The specified ratings are achieved in converter operation (field-oriented control) with a clock frequency of 4 kHz in the power stage. Overload capacity According to technical data sheet | | |
| | | |
| | | Technical alterations reserved 3 | | |
| | | Three-phase synchronous motors DS 100 - 160 Baumüller Nürnberg GmbH | | 03/03 | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | |
