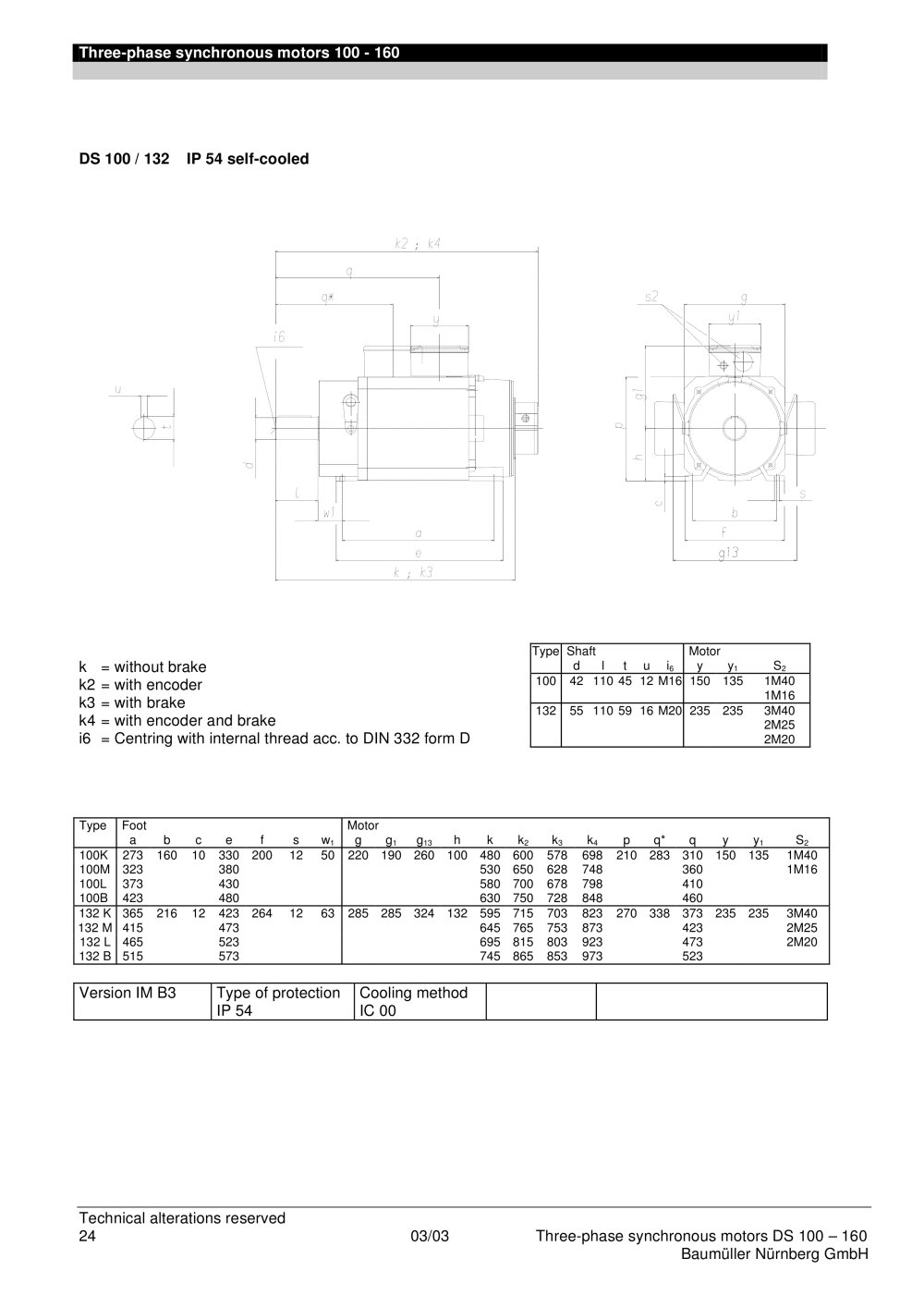

Three-phase synchronous motors 100 - 160

DS 100 / 132 IP 54 self-cooled


	Type	Shaft dl t u i₆	Motor
	100	42 110 45 12 M16	150 135 1M40 1M16
	132	55 110 59 16 M20	235 235 3M40 2M25 2M20

k = without brake

k2 = with industrial encoder

k3 = with brake

k4 = with encoder and brake

i6 = Centring with internal thread acc. to DIN 332


	Type	Foot							Motor
		ab c e				f	s	w₁	⁹		913	hk		k2	k3		^p	q*	^q	^y	y1
	100K	273	160	10	330	200	12	50	220	190	260	100	480	600	578	698	210	283	310	150	135	1M40
	100M	323			380								530	650	628	748			360			1M16
	100L	373			430								580	700	678	798			410
	100B	423			480								630	750	728	848			460
	132 K	365	216	12	423	264	12	63	285	285	324	132	595	715	703	823	270	338	373	235	235	3M40
	132 M	415			473								645	765	753	873			423			2M25
	132 L	465			523								695	815	803	923			473			2M20
	132 B	515			573								745	865	853	973			523


	Version IM B3	Type of protection	Cooling method
		IP 54	IC 00

Technical alterations reserved 24

03/03

Three-phase synchronous motors DS 100 - 160 Baumüller Nürnberg GmbH
