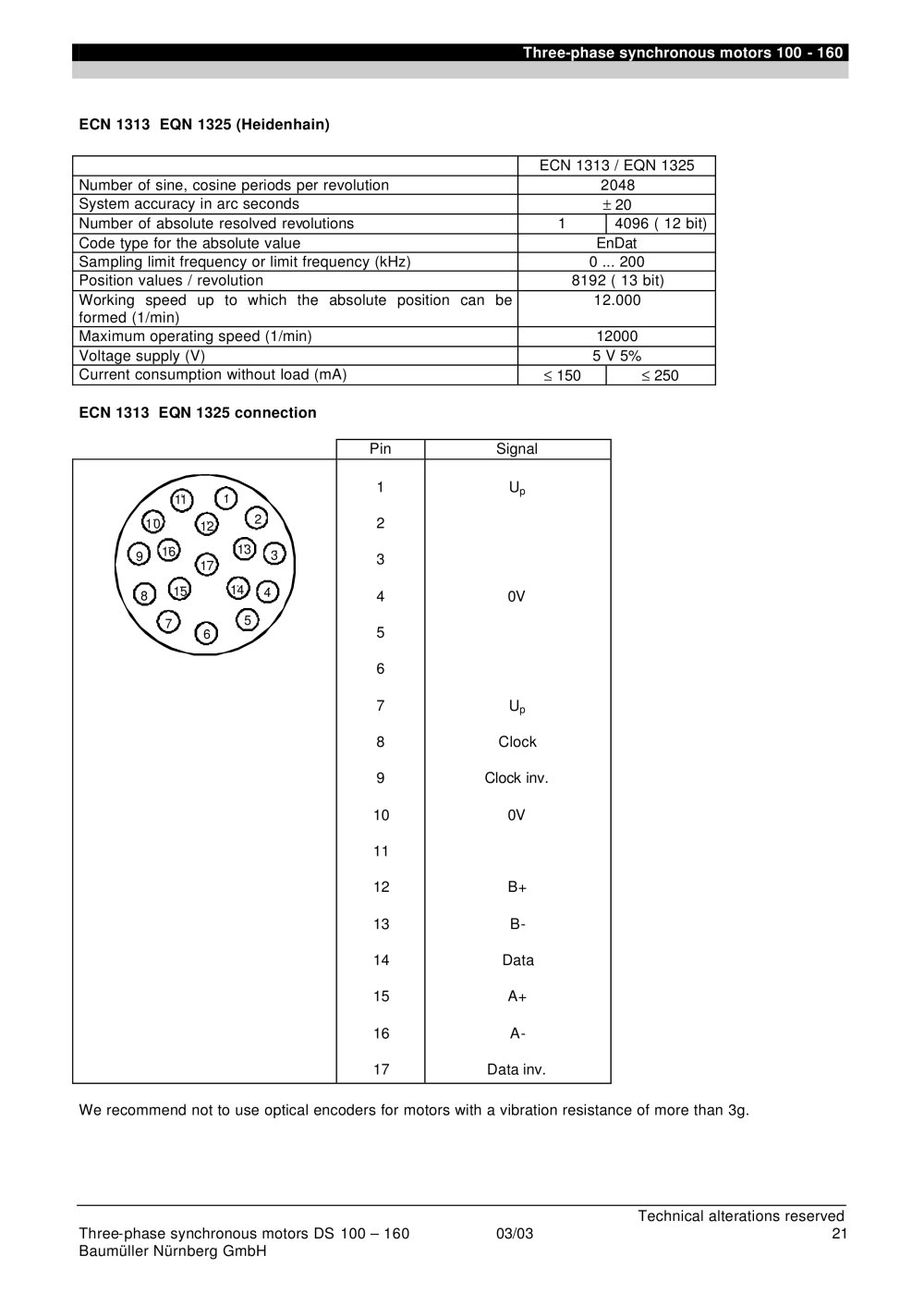

| | | ECN 1313 / EQN 1325 | |
| | Number of sine, cosine periods per revolution | 2048 | |
| | System accuracy in arc seconds | ± 20 | |
| | Number of absolute resolved revolutions | 1 4096 ( 12 bit) | |
| | Code type for the absolute value | EnDat | |
| | | 0 ... 200 | |
| | Position values / revolution | 8192 ( 13 bit) | |
| | Working speed up to which the absolute position can be formed (1/min) | 12.000 | |
| | Maximum operating speed (1/min) | 12000 | |
| | Voltage supply (V) | 5 V 5% | |
| | Current consumption without load (mA) | <150 <250 | |
| | ECN 1313 EQN 1325 connection | |
| | | | |
