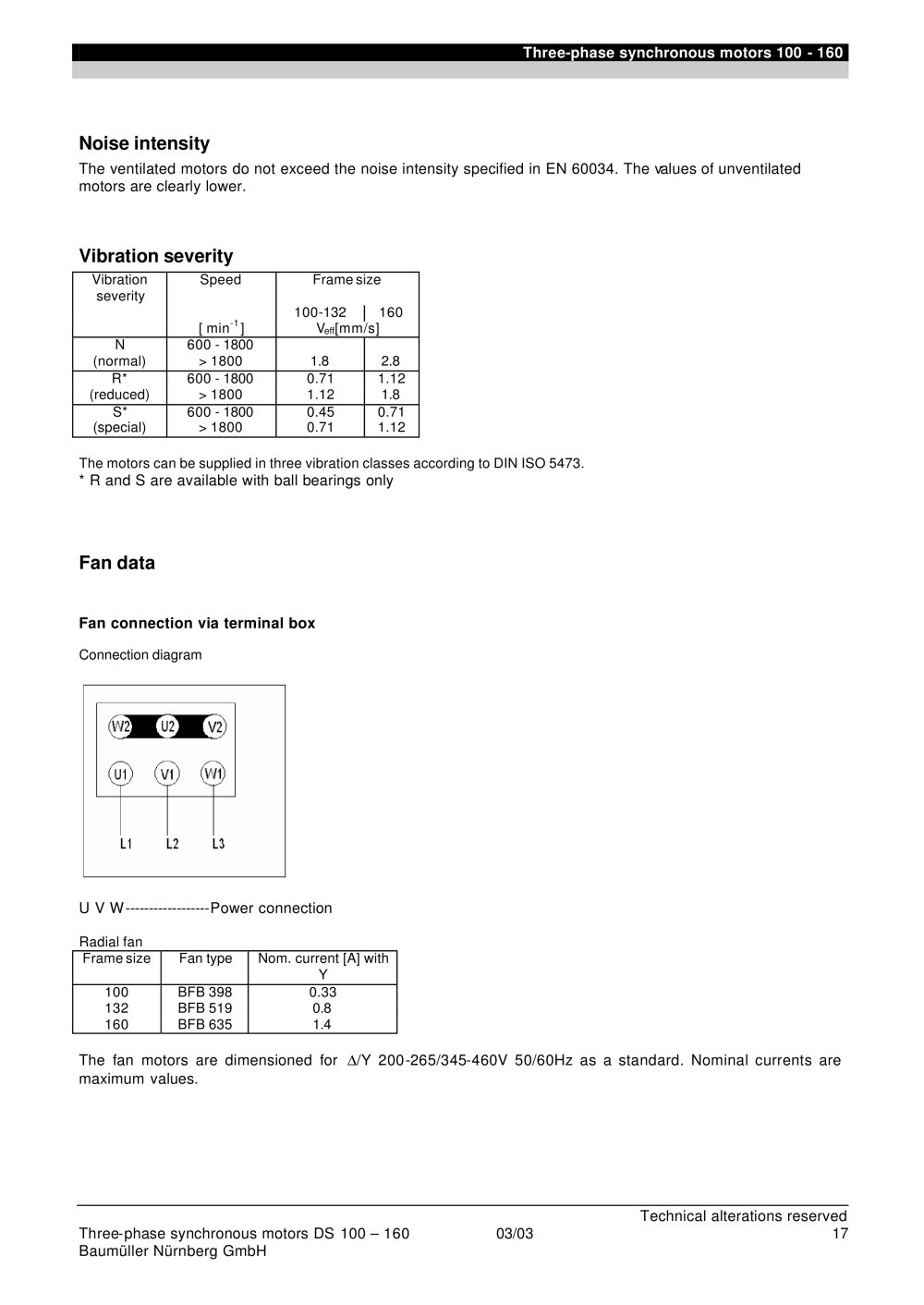

Three-phase synchronous motors 100 - 160

Three phase synchronous motors DS 100-160 - 9305 Noise intensity

The ventilated motors do not exceed the noise intensity specified in EN 60034. The values of unventilated motors are clearly lower.

Vibration severity

VibrationseveritySpeedFrame size
-1 100-132160 [ min ]V
eff [mm/s] N600- 1800 (normal)> 18001.82.8 R*600- 18000.711.12 (reduced)> 18001.121.8 S*600- 18000.450.71 (special)> 18000.711.12 The motors can be supplied in three vibration classes according to DIN ISO 5473.

* R and S are available with ball bearings only

Fan data

Fan connection via terminal box

Connection diagram

U V W------------------Power connection

Radial fanFrame sizeFan typeNom. current [A] with Y 100BFB 3980.33 132BFB 5190.8 160BFB 6351.4

The fan motors are dimensioned for ∆ /Y 200-265/345-460V 50/60Hz as a standard. Nominal currents are maximum values. Technical alterations reserved Three-phase synchronous motors DS100– 16003/0317Baumüller Nürnberg GmbH
