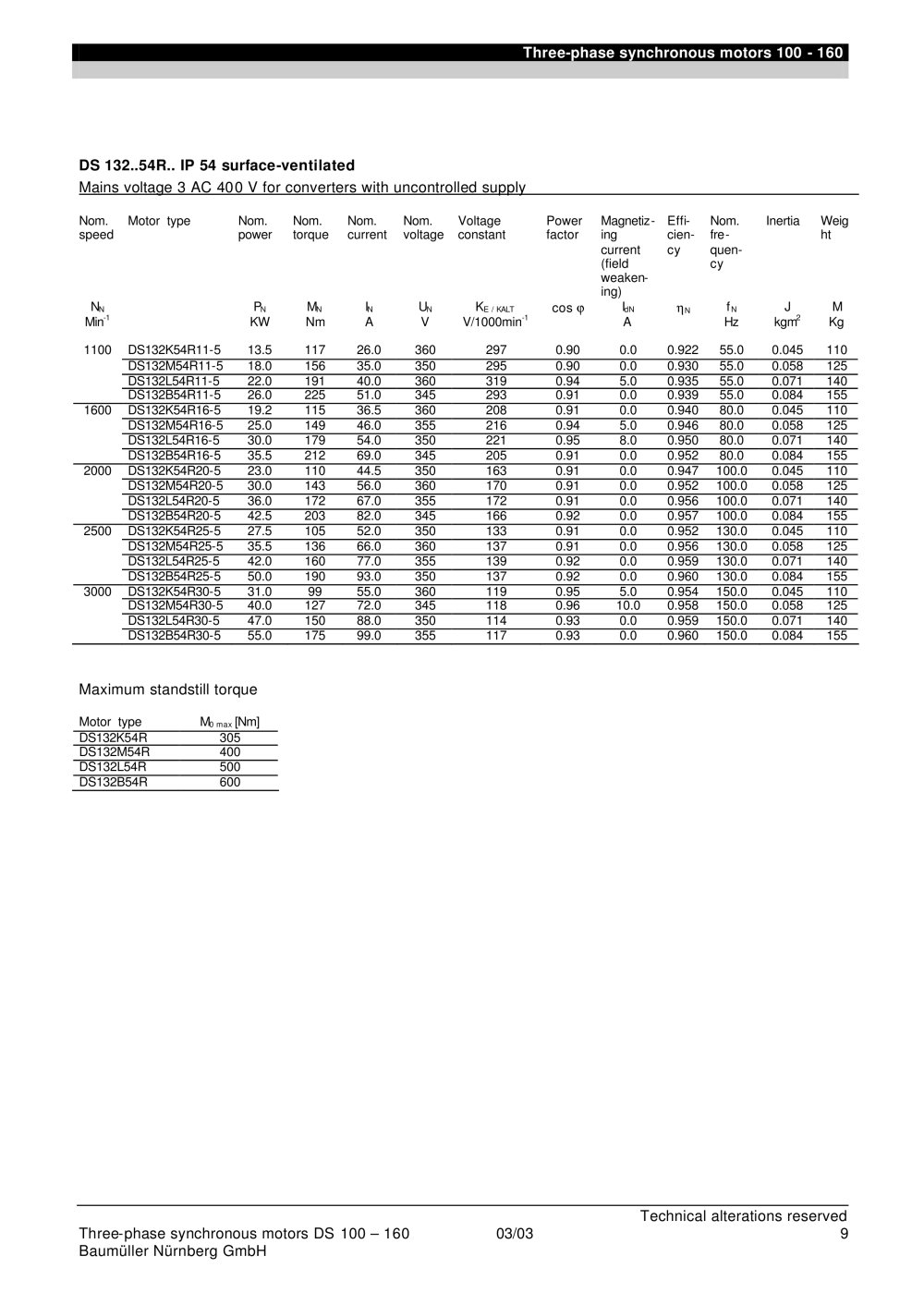

Three-phase synchronous motors 100 - 160

DS 132..54R.. IP 54 surface-ventilated

Mains voltage 3 AC 400 V for converters with uncontrolled supply


	Nom.	Motor type	Nom.	Nom.	Nom.	Nom.	Voltage	Power	Magnetiz-	Effi-	Nom.	Inertia	Weig
	speed		power	torque	current	voltage	constant	factor	ing	cien-	fre-		ht
									current	cy	quen-
									(field		cy
									weaken-
									ing)
	Nn		Pn	Mn	In	Un	Ke / KALT	cos <p	IdN		fN	JM
	Min"¹		KW	Nm	A	V	V/1000min^-1	cos <p	A		Hz	kgm²	Kg
	1100	DS132K54R11-5	13.5	117	26.0	360	297	0.90	0.0	0.922	55.0	0.045	110
		DS132M54R11-5	18.0	156	35.0	350	295	0.90	0.0	0.930	55.0	0.058	125
		DS132L54R11-5	22.0	191	40.0	360	319	0.94	5.0	0.935	55.0	0.071	140
		DS132B54R11-5	26.0	225	51.0	345	293	0.91	0.0	0.939	55.0	0.084	155
	1600	DS132K54R16-5	19.2	115	36.5	360	208	0.91	0.0	0.940	80.0	0.045	110
		DS132M54R16-5	25.0	149	46.0	355	216	0.94	5.0	0.946	80.0	0.058	125
		DS132L54R16-5	30.0	179	54.0	350	221	0.95	8.0	0.950	80.0	0.071	140
		DS132B54R16-5	35.5	212	69.0	345	205	0.91	0.0	0.952	80.0	0.084	155
	2000	DS132K54R20-5	23.0	110	44.5	350	163	0.91	0.0	0.947	100.0	0.045	110
		DS132M54R20-5	30.0	143	56.0	360	170	0.91	0.0	0.952	100.0	0.058	125
		DS132L54R20-5	36.0	172	67.0	355	172	0.91	0.0	0.956	100.0	0.071	140
		DS132B54R20-5	42.5	203	82.0	345	166	0.92	0.0	0.957	100.0	0.084	155
	2500	DS132K54R25-5	27.5	105	52.0	350	133	0.91	0.0	0.952	130.0	0.045	110
		DS132M54R25-5	35.5	136	66.0	360	137	0.91	0.0	0.956	130.0	0.058	125
		DS132L54R25-5	42.0	160	77.0	355	139	0.92	0.0	0.959	130.0	0.071	140
		DS132B54R25-5	50.0	190	93.0	350	137	0.92	0.0	0.960	130.0	0.084	155
	3000	DS132K54R30-5	31.0	99	55.0	360	119	0.95	5.0	0.954	150.0	0.045	110
		DS132M54R30-5	40.0	127	72.0	345	118	0.96	10.0	0.958	150.0	0.058	125
		DS132L54R30-5	47.0	150	88.0	350	114	0.93	0.0	0.959	150.0	0.071	140
		DS132B54R30-5	55.0	175	99.0	355	117	0.93	0.0	0.960	150.0	0.084	155

Maximum standstill torque


	Motor type	IM) max [Nm]
	DS132K54R	305
	DS132M54R	400
	DS132L54R	500
	DS132B54R	600

Technical alterations reserved

9

Three-phase synchronous motors DS 100 - 160 Baumüller Nürnberg GmbH

03/03
