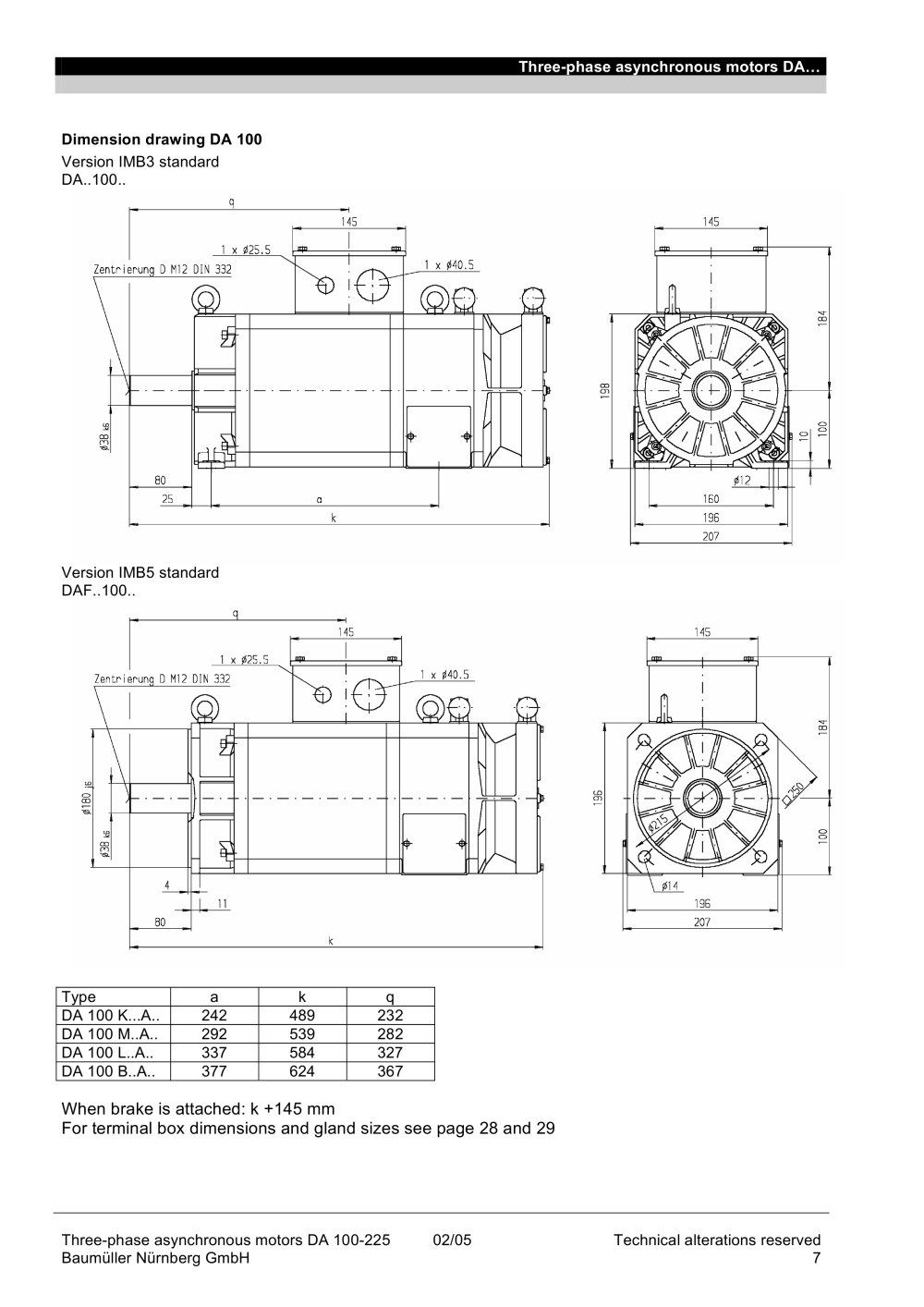

Three-phase asynchronous motors DA… Dimension drawing DA 100 Version IMB3 standard DA..100.. Version IMB5 standard DAF..100.. Type a k q DA 100 K...A.. 242 489 232 DA 100 M..A.. 292 539 282 DA 100 L..A.. 337 584 327 DA 100 B..A.. 377 624 367

When brake is attached: k +145 mm For terminal box dimensions and gland sizes see page 28 and 29

Three-phase asynchronous motors DA 100-225 02/05 Technical alterations reservedBaumüller Nürnberg GmbH 7
