Three-phase asynchronous motors DA...

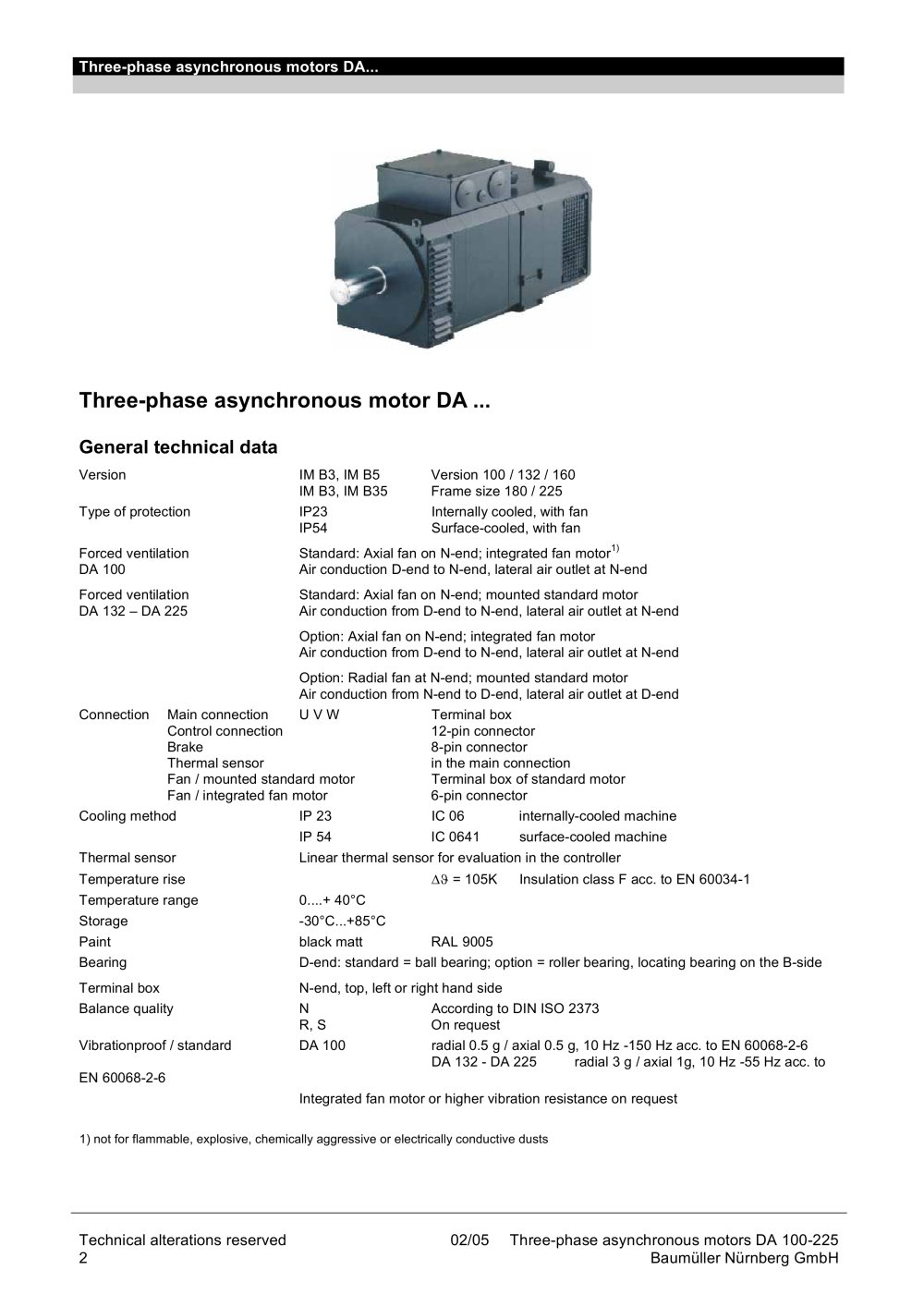

Three phase asynchronous motors DA 100-225 - 9305 Three-phase asynchronous motor DA ...

General technical data

Version IM B3, IM B5 Version 100 / 132 / 160 IM B3, IM B35 Frame size 180 / 225 Type of protection IP23 Internally cooled, with fan IP54 Surface-cooled, with fan Forced ventilation Standard: Axial fan on N-end; integrated fan motor
1) DA 100 Air conduction D-end to N-end, lateral air outlet at N-endForced ventilation Standard: Axial fan on N-end; mounted standard motor DA 132 – DA 225 Air conduction from D-end to N-end, lateral air outlet at N-end Option: Axial fan on N-end; integrated fan motor Air conduction from D-end to N-end, lateral air outlet at N-end Option: Radial fan at N-end; mounted standard motor Air conduction from N-end to D-end, lateral air outlet at D-endConnection Main connection U V W Terminal box Control connection 12-pin connector Brake 8-pin connector Thermal sensor in the main connection Fan / mounted standard motor Terminal box of standard motor Fan / integrated fan motor 6-pin connector Cooling method IP 23 IC 06 internally-cooled machine IP 54 IC 0641 surface-cooled machine Thermal sensor Linear thermal sensor for evaluation in the controller Temperature rise = 105K Insulation class F acc. to EN 60034-1 Temperature range 0....+ 40°C Storage -30°C...+85°C Paint black matt RAL 9005 Bearing D-end: standard = ball bearing; option = roller bearing, locating bearing on the B-side Terminal box N-end, top, left or right hand side Balance quality N According to DIN ISO 2373 R, S On request Vibrationproof / standard DA 100 radial 0.5 g / axial 0.5 g, 10 Hz -150 Hzacc. to EN 60068-2-6 DA 132 - DA 225 radial 3 g / axial 1g, 10 Hz -55 Hzacc. to EN 60068-2-6 Integrated fan motor or higher vibration resistance on request
1) not for flammable, explosive, chemically aggressive or electrically conductive dusts

Technical alterations reserved 02/05Three-phase asynchronous motors DA 100-2252 Baumüller Nürnberg GmbH
