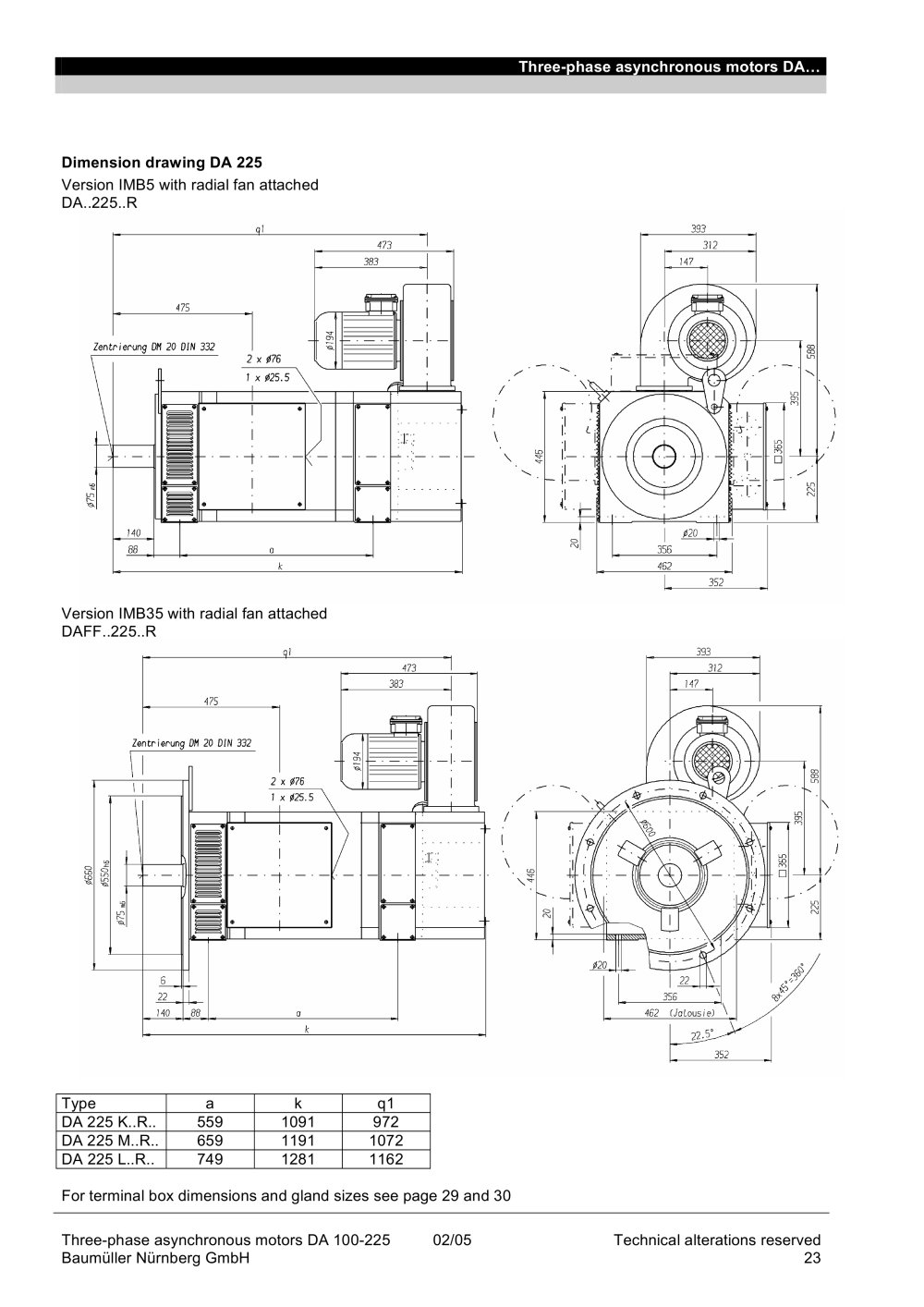

Three-phase asynchronous motors DA… Dimension drawing DA 225 Version IMB5 with radial fan attached DA..225..R Version IMB35 with radial fan attached DAFF..225..R Type a k q1 DA 225 K..R.. 559 1091 972 DA 225 M..R.. 659 1191 1072 DA 225 L..R.. 749 1281 1162 For terminal box dimensions and gland sizes see page 29 and 30 Three-phase asynchronous motors DA 100-225 02/05 Technical alterations reservedBaumüller Nürnberg GmbH 23
