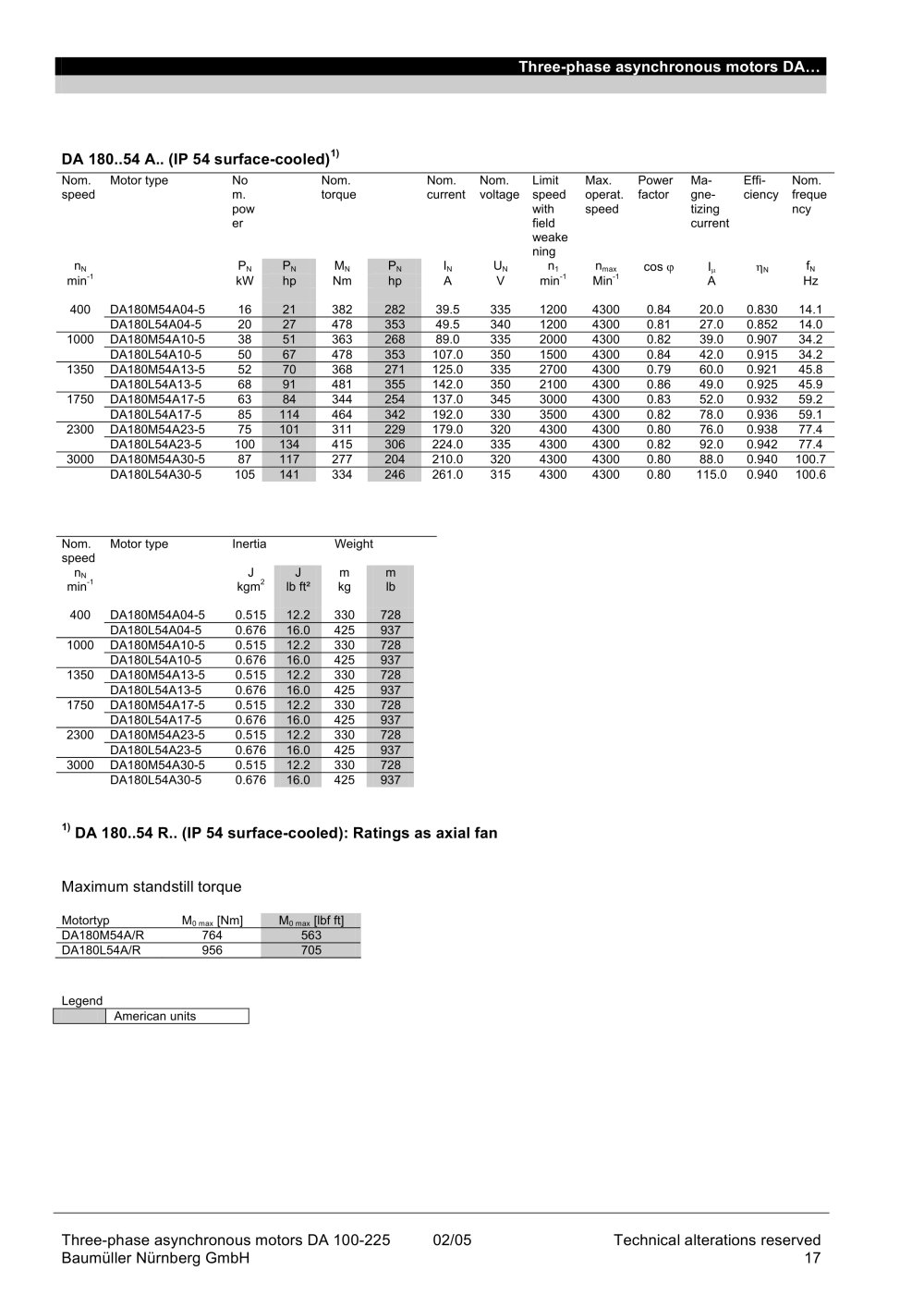

Three-phase asynchronous motors DA… DA 180..54 A.. (IP 54 surface-cooled)

1) Nom. speed Motor type Nom. pow er Nom. torque Nom. current Nom. voltage Limit speed with field weake ning Max. operat. speed Power factor Ma-gne- tizing current Effi-ciency Nom. freque ncy n
N P
N -1 P
N M
N P
N I
N U
N n
1 n
max -1 -1 cos I
N f
N min kW hp Nm hp A V min Min A Hz 400 DA180M54A04-5 16 21 382 282 39.5 335 1200 4300 0.84 20.0 0.830 14.1 DA180L54A04-5 20 27 478 353 49.5 340 1200 4300 0.81 27.0 0.852 14.0 1000 DA180M54A10-5 38 51 363 268 89.0 335 2000 4300 0.82 39.0 0.907 34.2 DA180L54A10-5 50 67 478 353 107.0 350 1500 4300 0.84 42.0 0.915 34.2 1350 DA180M54A13-5 52 70 368 271 125.0 335 2700 4300 0.79 60.0 0.921 45.8 DA180L54A13-5 68 91 481 355 142.0 350 2100 4300 0.86 49.0 0.925 45.9 1750 DA180M54A17-5 63 84 344 254 137.0 345 3000 4300 0.83 52.0 0.932 59.2 DA180L54A17-5 85 114 464 342 192.0 330 3500 4300 0.82 78.0 0.936 59.1 2300 DA180M54A23-5 75 101 311 229 179.0 320 4300 4300 0.80 76.0 0.938 77.4 DA180L54A23-5 100 134 415 306 224.0 335 4300 4300 0.82 92.0 0.942 77.4 3000 DA180M54A30-5 87 117 277 204 210.0 320 4300 4300 0.80 88.0 0.940 100.7 DA180L54A30-5 105 141 334 246 261.0 315 4300 4300 0.80 115.0 0.940 100.6 Nom. speed Motor type Inertia Weight n
N J
-1 2 J m m min kgm lb ft² kg lb 400 DA180M54A04-5 0.515 12.2 330 728 DA180L54A04-5 0.676 16.0 425 937 1000 DA180M54A10-5 0.515 12.2 330 728 DA180L54A10-5 0.676 16.0 425 937 1350 DA180M54A13-5 0.515 12.2 330 728 DA180L54A13-5 0.676 16.0 425 937 1750 DA180M54A17-5 0.515 12.2 330 728 DA180L54A17-5 0.676 16.0 425 937 2300 DA180M54A23-5 0.515 12.2 330 728 DA180L54A23-5 0.676 16.0 425 937 3000 DA180M54A30-5 0.515 12.2 330 728 DA180L54A30-5 0.676 16.0 425 937
1)

DA 180..54 R.. (IP 54 surface-cooled): Ratings as axial fan Maximum standstill torque

Motortyp M
0 max [Nm] M
0 max [lbf ft] DA180M54A/R 764 563 DA180L54A/R 956 705 Legend American units

Three-phase asynchronous motors DA 100-225 02/05 Technical alterations reservedBaumüller Nürnberg GmbH 17
