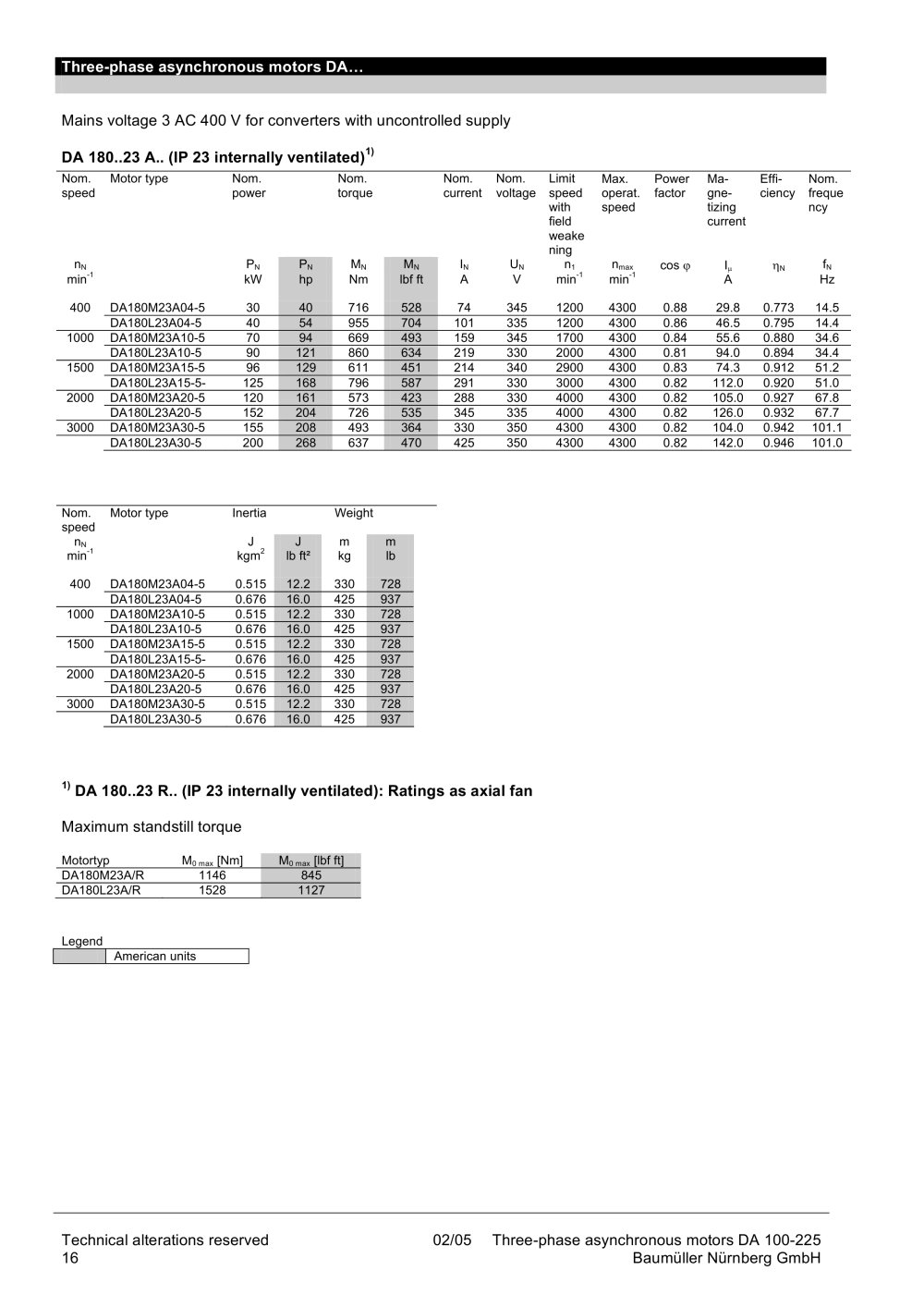

Three-phase asynchronous motors DA… DA 180..23 A.. (IP 23 internally ventilated)

1) Nom. speed Motor type Nom. power Nom. torque Nom. current Nom. voltage Limit speed with field weakening Max. operat. speed Power factor Ma-gne-tizing current Effi-ciency Nom. freque ncy n
N P
N -1 P
N M
N M
N I
N U
N n
1 n
max -1 -1 cos I
N f
N min kW hp Nm lbf ft A V min min A Hz 400 DA180M23A04-5 30 40 716 528 74 345 1200 4300 0.88 29.8 0.773 14.5 DA180L23A04-5 40 54 955 704 101 335 1200 4300 0.86 46.5 0.795 14.4 1000 DA180M23A10-5 70 94 669 493 159 345 1700 4300 0.84 55.6 0.880 34.6 DA180L23A10-5 90 121 860 634 219 330 2000 4300 0.81 94.0 0.894 34.4 1500 DA180M23A15-5 96 129 611 451 214 340 2900 4300 0.83 74.3 0.912 51.2 DA180L23A15-5- 125 168 796 587 291 330 3000 4300 0.82 112.0 0.920 51.0 2000 DA180M23A20-5 120 161 573 423 288 330 4000 4300 0.82 105.0 0.927 67.8 DA180L23A20-5 152 204 726 535 345 335 4000 4300 0.82 126.0 0.932 67.7 3000 DA180M23A30-5 155 208 493 364 330 350 4300 4300 0.82 104.0 0.942 101.1 DA180L23A30-5 200 268 637 470 425 350 4300 4300 0.82 142.0 0.946 101.0 Nom. speed Motor type Inertia Weight n
N J
-1 2 J m m min kgm lb ft² kg lb 400 DA180M23A04-5 0.515 12.2 330 728 DA180L23A04-5 0.676 16.0 425 937 1000 DA180M23A10-5 0.515 12.2 330 728 DA180L23A10-5 0.676 16.0 425 937 1500 DA180M23A15-5 0.515 12.2 330 728 DA180L23A15-5- 0.676 16.0 425 937 2000 DA180M23A20-5 0.515 12.2 330 728 DA180L23A20-5 0.676 16.0 425 937 3000 DA180M23A30-5 0.515 12.2 330 728 DA180L23A30-5 0.676 16.0 425 937
1)

DA 180..23 R.. (IP 23 internally ventilated): Ratings as industrial axial fan Maximum standstill torque

Motortyp M
0 max [Nm] M
0 max [lbf ft] DA180M23A/R 1146 845 DA180L23A/R 1528 1127 Legend American units

Technical alterations reserved 02/05Three-phase asynchronous motors DA 100-22516 Baumüller Nürnberg GmbH Mains voltage 3 AC 400 V for converters with uncontrolled supply
