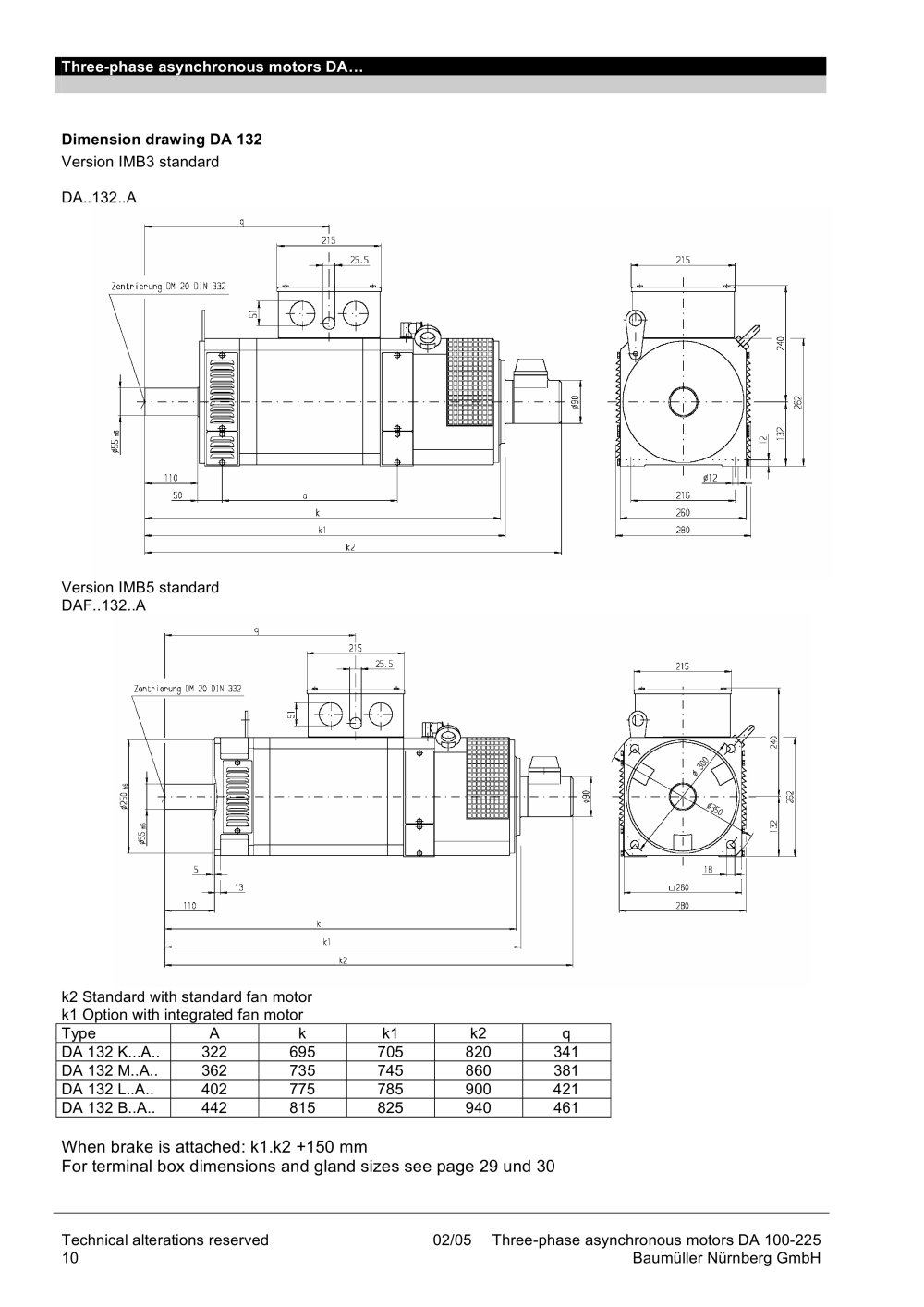

Three-phase asynchronous motors DA… Dimension drawing DA 132 Version IMB3 standard DA..132..A Version IMB5 standard DAF..132..A k2 Standard with standard fan motor k1 Option with integrated fan motor Type A k k1 k2 q DA 132 K...A.. 322 695 705 820 341 DA 132 M..A.. 362 735 745 860 381 DA 132 L..A.. 402 775 785 900 421 DA 132 B..A.. 442 815 825 940 461

When brake is attached: k1.k2 +150 mm For terminal box dimensions and gland sizes see page 29 und 30
