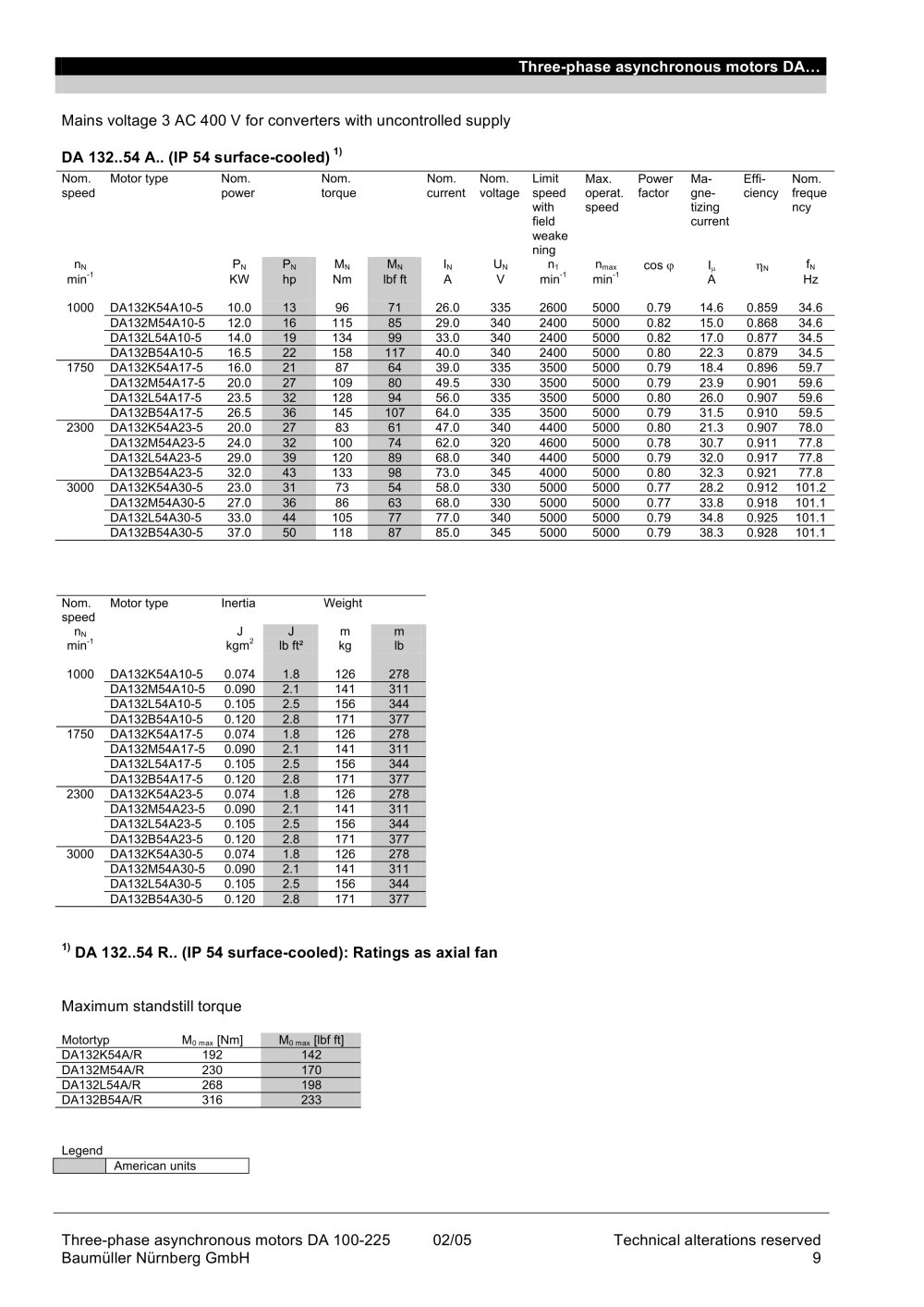

Three-phase asynchronous motors DA… DA 132..54 A.. (IP 54 surface-cooled)

1) Nom. speed Motor type Nom. power Nom. torque Nom. current Nom. voltage Limit speed with field weakening Max. operat. speed Power factor Ma-gne-tizing current Effi-ciency Nom. freque ncy n
N P
N -1 P
N M
N M
N I
N U
N n
1 n
max -1 -1 cos I
N f
N min KW hp Nm lbf ft A V min min A Hz 1000 DA132K54A10-5 10.0 13 96 71 26.0 335 2600 5000 0.79 14.6 0.859 34.6 DA132M54A10-5 12.0 16 115 85 29.0 340 2400 5000 0.82 15.0 0.868 34.6 DA132L54A10-5 14.0 19 134 99 33.0 340 2400 5000 0.82 17.0 0.877 34.5 DA132B54A10-5 16.5 22 158 117 40.0 340 2400 5000 0.80 22.3 0.879 34.5 1750 DA132K54A17-5 16.0 21 87 64 39.0 335 3500 5000 0.79 18.4 0.896 59.7 DA132M54A17-5 20.0 27 109 80 49.5 330 3500 5000 0.79 23.9 0.901 59.6 DA132L54A17-5 23.5 32 128 94 56.0 335 3500 5000 0.80 26.0 0.907 59.6 DA132B54A17-5 26.5 36 145 107 64.0 335 3500 5000 0.79 31.5 0.910 59.5 2300 DA132K54A23-5 20.0 27 83 61 47.0 340 4400 5000 0.80 21.3 0.907 78.0 DA132M54A23-5 24.0 32 100 74 62.0 320 4600 5000 0.78 30.7 0.911 77.8 DA132L54A23-5 29.0 39 120 89 68.0 340 4400 5000 0.79 32.0 0.917 77.8 DA132B54A23-5 32.0 43 133 98 73.0 345 4000 5000 0.80 32.3 0.921 77.8 3000 DA132K54A30-5 23.0 31 73 54 58.0 330 5000 5000 0.77 28.2 0.912 101.2 DA132M54A30-5 27.0 36 86 63 68.0 330 5000 5000 0.77 33.8 0.918 101.1 DA132L54A30-5 33.0 44 105 77 77.0 340 5000 5000 0.79 34.8 0.925 101.1 DA132B54A30-5 37.0 50 118 87 85.0 345 5000 5000 0.79 38.3 0.928 101.1 Nom. speed Motor type Inertia Weight n
N J
-1 2 J m m min kgm lb ft² kg lb 1000 DA132K54A10-5 0.074 1.8 126 278 DA132M54A10-5 0.090 2.1 141 311 DA132L54A10-5 0.105 2.5 156 344 DA132B54A10-5 0.120 2.8 171 377 1750 DA132K54A17-5 0.074 1.8 126 278 DA132M54A17-5 0.090 2.1 141 311 DA132L54A17-5 0.105 2.5 156 344 DA132B54A17-5 0.120 2.8 171 377 2300 DA132K54A23-5 0.074 1.8 126 278 DA132M54A23-5 0.090 2.1 141 311 DA132L54A23-5 0.105 2.5 156 344 DA132B54A23-5 0.120 2.8 171 377 3000 DA132K54A30-5 0.074 1.8 126 278 DA132M54A30-5 0.090 2.1 141 311 DA132L54A30-5 0.105 2.5 156 344 DA132B54A30-5 0.120 2.8 171 377
1)

DA 132..54 R.. (IP 54 surface-cooled): Ratings as industrial axial fan Maximum standstill torque

Motortyp M
0 max [Nm] M
0 max [lbf ft] DA132K54A/R 192 142 DA132M54A/R 230 170 DA132L54A/R 268 198 DA132B54A/R 316 233 Legend American units

Three-phase asynchronous motors DA 100-225 02/05 Technical alterations reservedBaumüller Nürnberg GmbH 9 Mains voltage 3 AC 400 V for converters with uncontrolled supply
