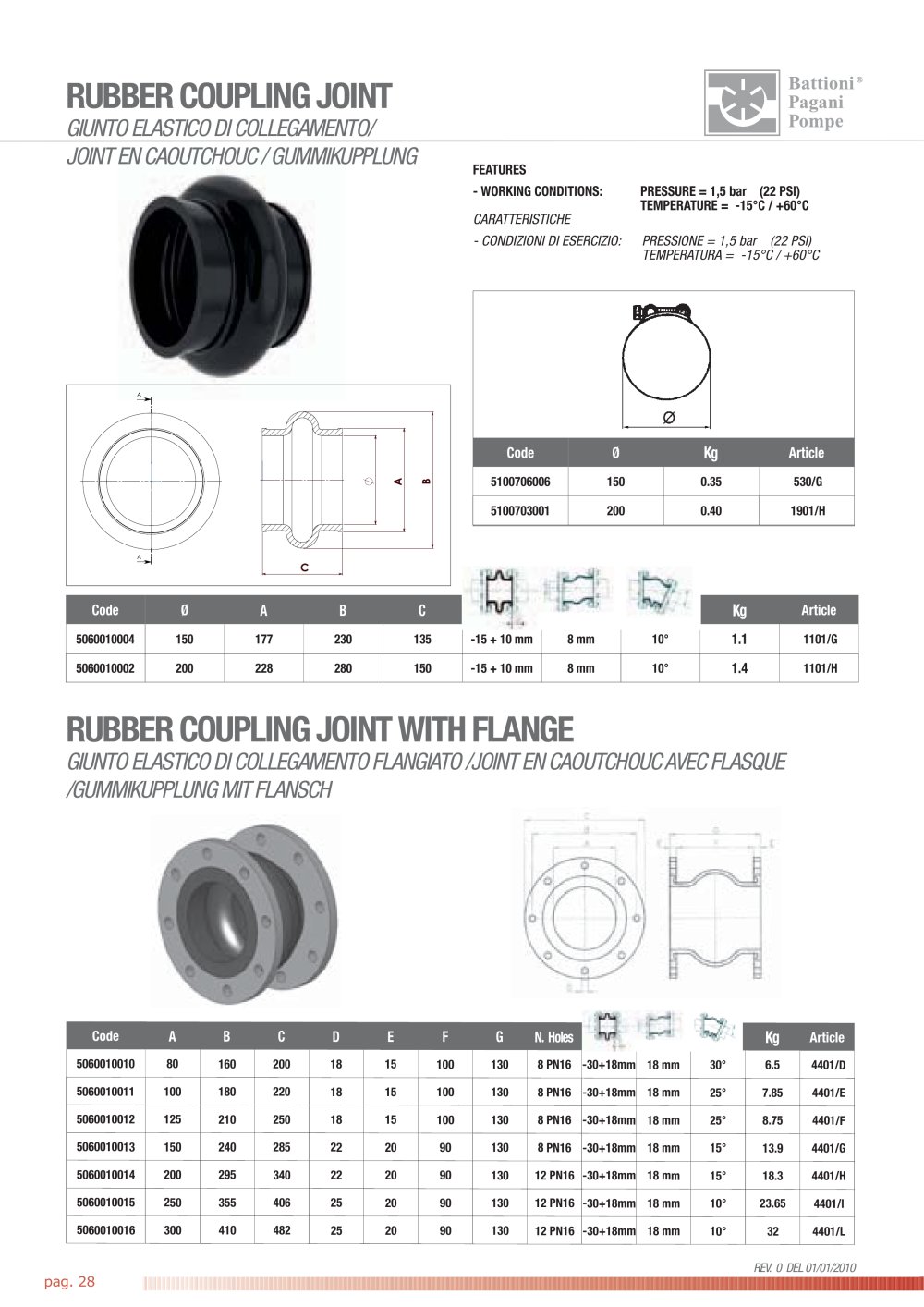

.............. REV. 0 DEL 01/01/2010 FEATURES - WORKING CONDITIONS: PRESSURE = 1,5 bar (22 PSI) TEMPERATURE = -15°C / +60°C CARATTERISTICHE - CONDIZIONI DI ESERCIZIO: PRESSIONE = 1,5 bar (22 PSI) TEMPERATURA = -15°C / +60°C Code Ø A B C Kg Article 5060010004 150 177 230 135 -15 + 10 mm 8 mm 10° 1.1 1101/G 5060010002 200 228 280 150 -15 + 10 mm 8 mm 10° 1.4 1101/H Code Ø Kg Article 5100706006 150 0.35 530/G 5100703001 200 0.40 1901/H Code A B C D E F G N. Holes Kg Article 5060010010 80 160 200 18 15 100 130 8 PN16 -30+18mm 18 mm 30° 6.5 4401/D 5060010011 100 180 220 18 15 100 130 8 PN16 -30+18mm 18 mm 25° 7.85 4401/E 5060010012 125 210 250 18 15 100 130 8 PN16 -30+18mm 18 mm 25° 8.75 4401/F 5060010013 150 240 285 22 20 90 130 8 PN16 -30+18mm 18 mm 15° 13.9 4401/G 5060010014 200 295 340 22 20 90 130 12 PN16 -30+18mm 18 mm 15° 18.3 4401/H 5060010015 250 355 406 25 20 90 130 12 PN16 -30+18mm 18 mm 10° 23.65 4401/l 5060010016 300 410 482 25 20 90 130 12 PN16 -30+18mm 18 mm 10° 32 4401/L .. .. .. .. .. RUBBER COUPLING JOINT WITH FLANGE GIUNTO ELASTICO DI COLLEGAMENTO FLANGIATO /JOINT EN CAOUTCHOUC AVEC FLASQUE /GUMMIKUPPLUNG MIT FLANSCH RUBBER COUPLING JOINT GIUNTO ELASTICO DI COLLEGAMENTO/ JOINT EN CAOUTCHOUC / GUMMIKUPPLUNG
