Limit switch

plastic encapsulated

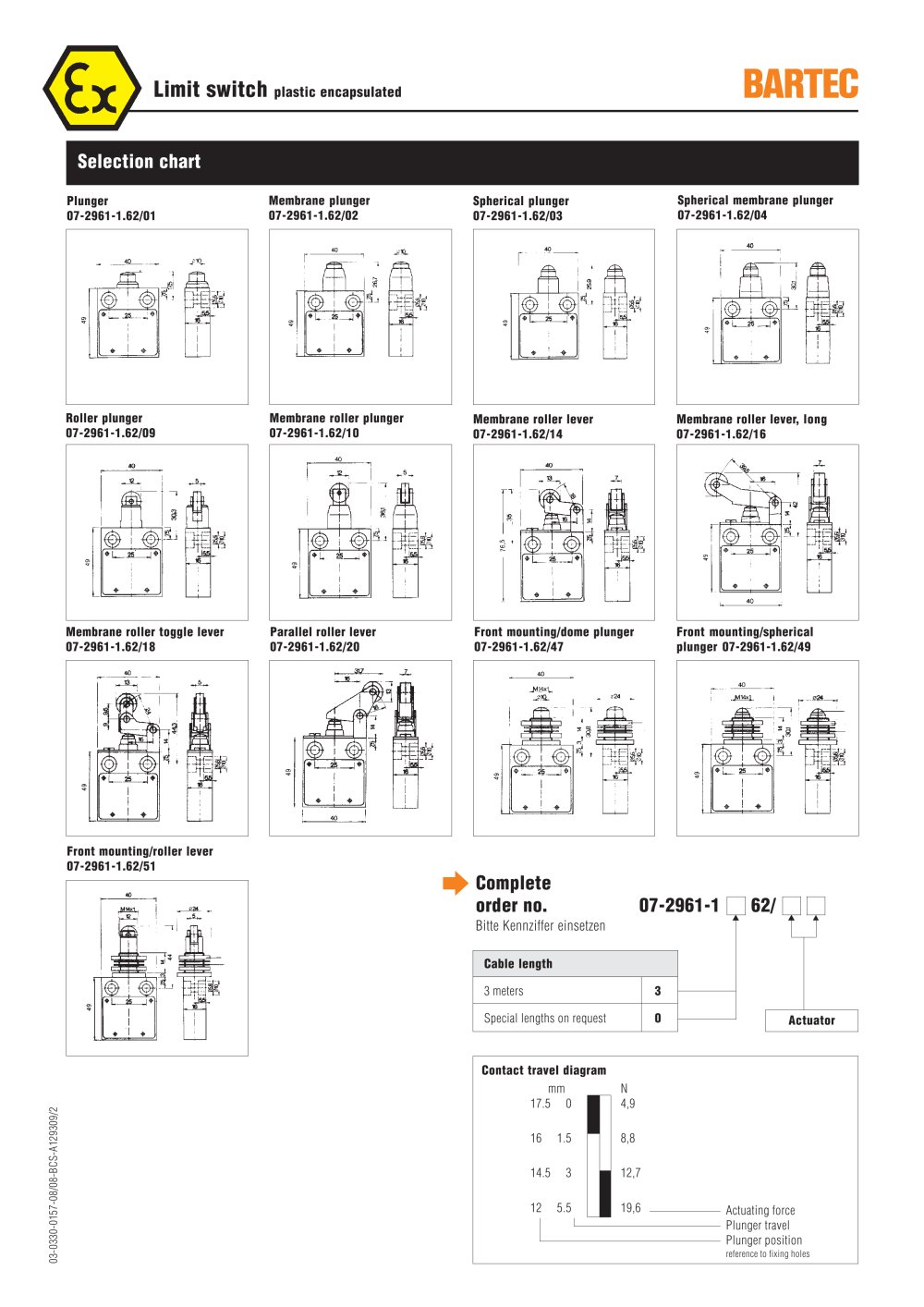

Selection chart

Plunger 07-2961-1.62/01 Membrane plunger07-2961-1.62/02 Spherical plunger 07-2961-1.62/03 Spherical membrane plunger 07-2961-1.62/04 Roller plunger 07-2961-1.62/09 Membrane roller plunger 07-2961-1.62/10 Membrane roller lever 07-2961-1.62/14 Membrane roller lever, long07-2961-1.62/16 Membrane roller toggle lever 07-2961-1.62/18 Parallel roller lever 07-2961-1.62/20 Front mounting/dome plunger 07-2961-1.62/47 Front mounting/spherical plunger 07-2961-1.62/49 Front mounting/roller lever 07-2961-1.62/51

Complete order no. 07-2961-1 62/

Bitte Kennziffer einsetzen

Cable length 3 meters 3 Special lengths on request Actuator Contact travel diagram mm17.5 016 1.5 14.5 312 5.5N4,98,8 12,719,6 Actuating forcePlunger travel Plunger position
03-0330-0157-08/08-BCS-A129309/2 reference to fixing holes
