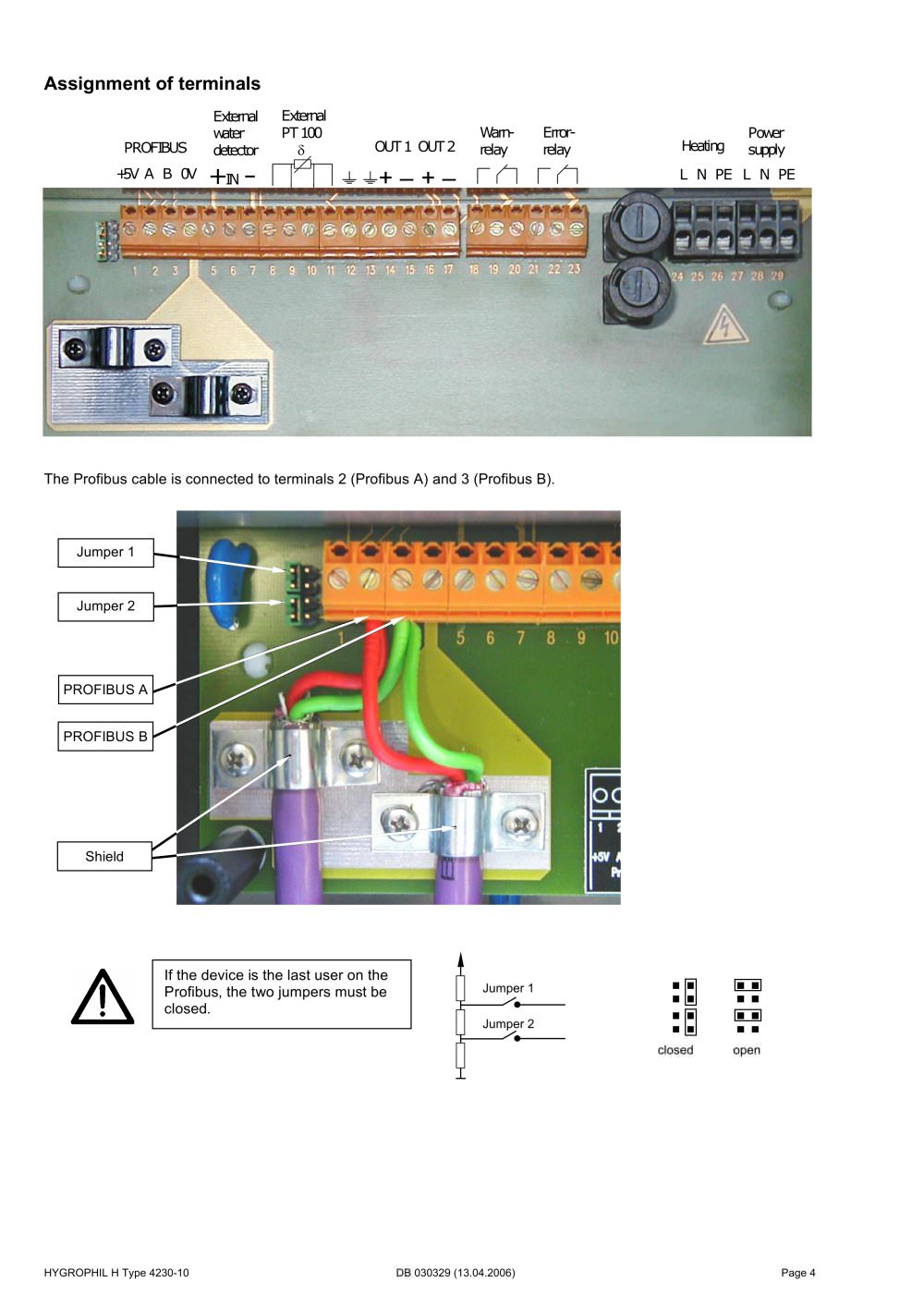

Assignment of terminais
External External
water PT 100 Warn- Error- Power
PROFIBUS detector 5 0LJT 1 OUT 2 relay relay Heating supply
+5V A B 0V + |N _ ^^+- + -Tl/1rn L N PEL N PE
The Profibus cable is connected to terminais 2 (Profibus A) and 3 (Profibus B).
HYGROPHIL H Type 4230-10
DB 030329 (13.04.2006)
Page 4
