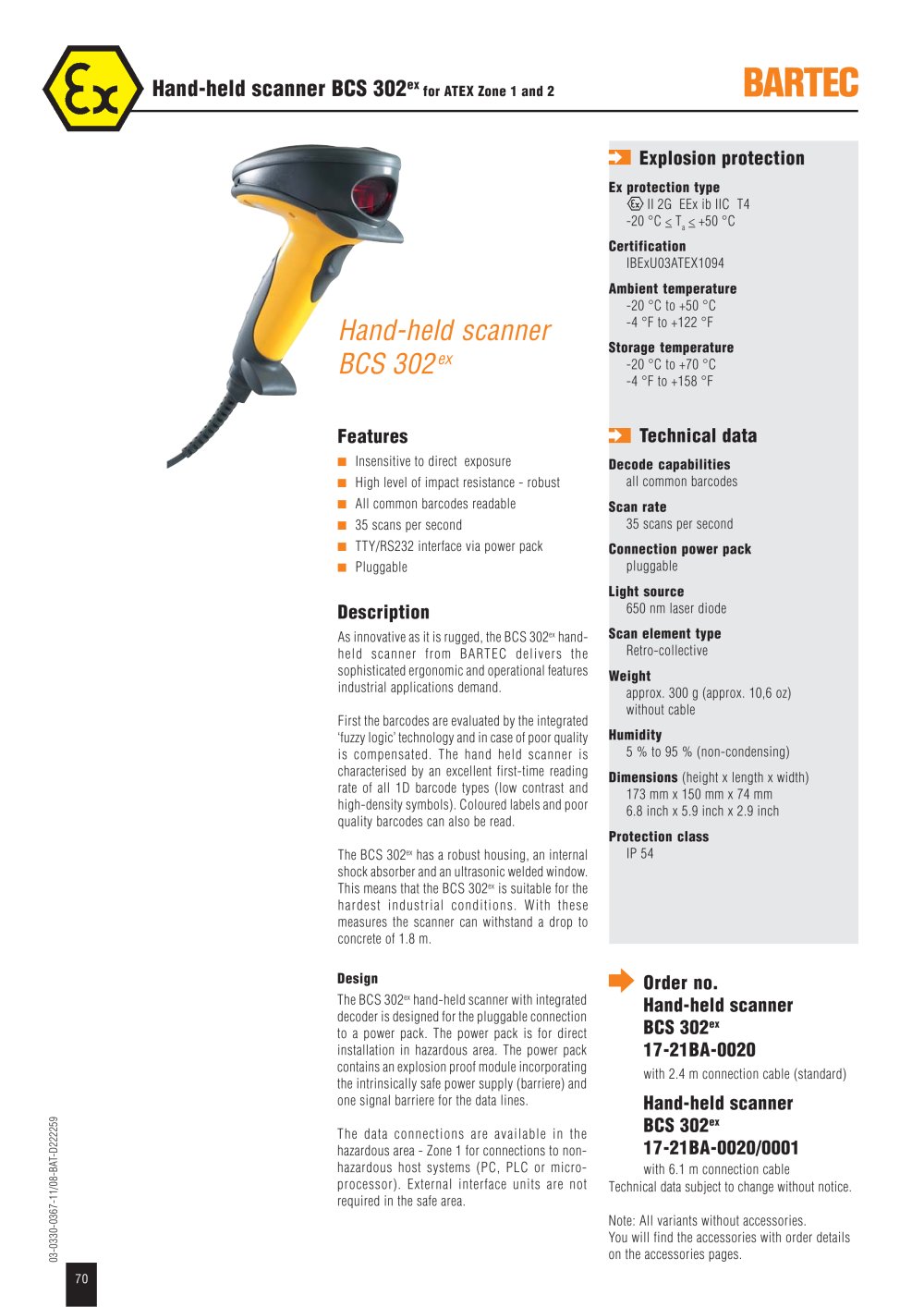

Hand-held scanner BCS 302

ex for ATEX Zone 1 and 2

Explosion protection

Ex protection type II 2G EEx ib IIC T4-20 °C
a

Hand-held scanner BCS 302ex for ATEX Zone 1 and 2 - 4785 Hand-held scannerBCS 302

-20 °C to +70 °C -4 °F to +158 °F

ex

Features Technical data

Insensitive to direct exposure Decode capabilities High level of impact resistance - robust all common barcodes All common barcodes readable Scan rate 35 scans per second 35 scans per second TTY/RS232 interface via power pack Connection power pack Pluggable pluggable Light source

Description

650 nm laser diode As innovative as it is rugged, the BCS 302
ex hand-held scanner from BARTEC delivers the sophisticated ergonomic and operational features industrial applications demand.First the barcodes are evaluated by the integrated‘fuzzy logic’ technology and in case of poor quality is compensated. The hand held scanner is characterised by an excellent first-time reading rate of all 1D barcode types (low contrast and high-density symbols). Coloured labels and poor quality barcodes can also be read.The BCS 302 Scan element type Retro-collective Weight Humidity approx. 300 g (approx. 10,6 oz) without cable 5 % to 95 % (non-condensing) Dimensions (height x length x width)173 mm x 150 mm x 74 mm 6.8 inch x 5.9 inch x 2.9 inch Protection class IP 54 Technical data subject to change without notice.
ex has a robust housing, an internalshock absorber and an ultrasonic welded window. This means that the BCS 302
ex is suitable for thehardest industrial conditions. With these measures the scanner can withstand a drop to concrete of 1.8 m. Design The BCS 302
ex

Order no.Hand-held scanner BCS 302

hand-held scanner with integrateddecoder is designed for the pluggable connection to a power pack. The power pack is for direct installation in hazardous area. The power pack contains an explosion proof module incorporating the intrinsically safe power supply (barriere) and one signal barriere for the data lines.The data connections are available in thehazardous area - Zone 1 for connections to non- hazardous host systems (PC, PLC or micro- processor). External interface units are not required in the safe area.Note: All variants without accessories.You will find the accessories with order details on the accessories pages.
ex

17-21BA-0020

with 2.4 m connection cable (standard)

Hand-held scanner BCS 302

ex

17-21BA-0020/0001

with 6.1 m connection cable
03-0330-0367-11/08-BAT-D222259 70
