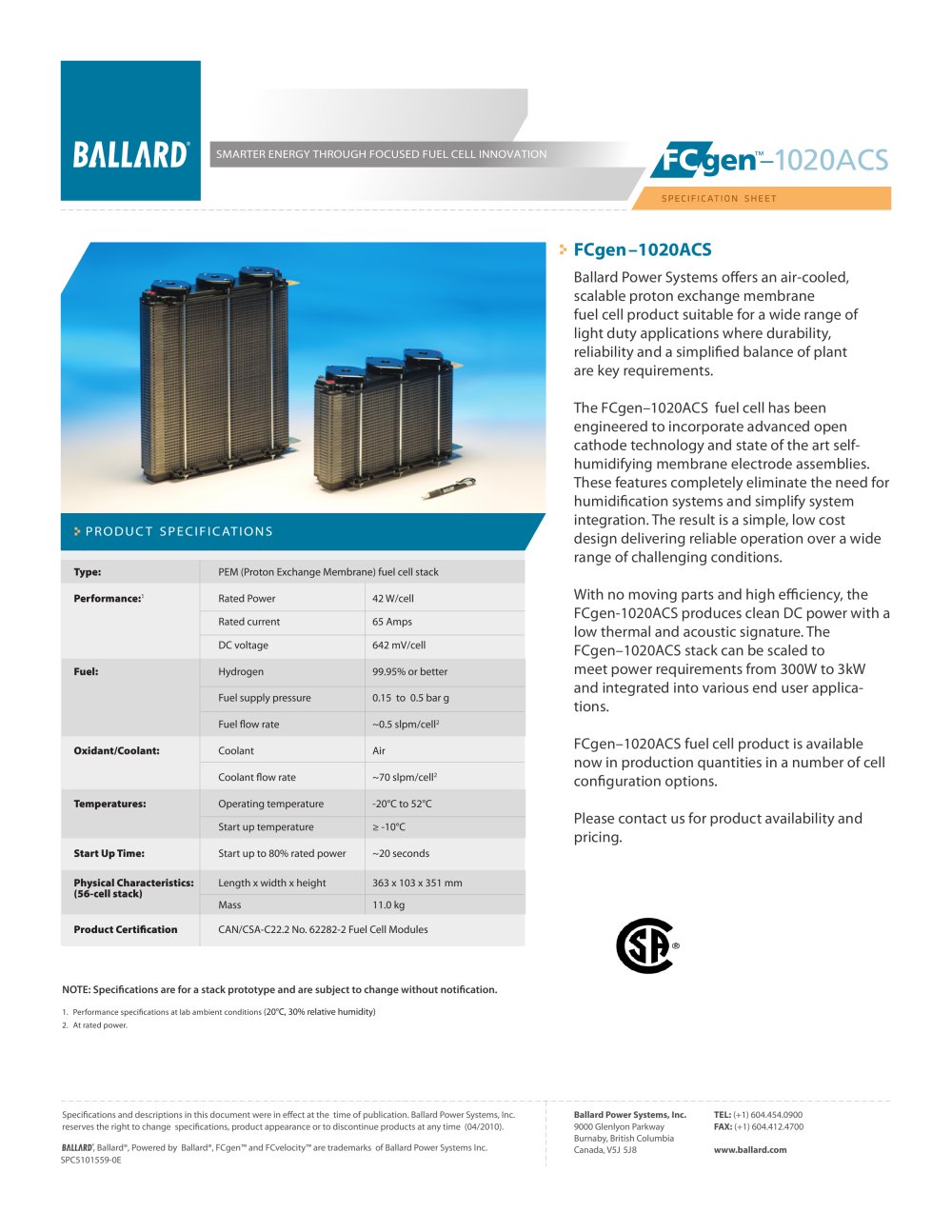

FCgen - 1020ACS - Ballard - #1

Text version of the page

FCgen –1020ACS Ballard Power Systems oers an air-cooled, scalable proton exchange membrane fuel cell product suitable for a wide range of light duty applications where durability, reliability and a simplied balance of plant are key requirements. The FCgen–1020ACS fuel cell has been engineered to incorporate advanced open cathode technology and state of the art selfhumidifying membrane electrode assemblies. These features completely eliminate the need for humidication systems and simplify system integration. The result is a simple, low cost design delivering reliable operation over a wide range of challenging conditions. With no moving parts and high eciency, the FCgen-1020ACS produces clean DC power with a low thermal and acoustic signature. The FCgen–1020ACS stack can be scaled to meet power requirements from 300W to 3kW and integrated into various end user applications. FCgen–1020ACS fuel cell product is available now in production quantities in a number of cell conguration options. Please contact us for product availability and pricing. Specications and descriptions in this document were in eect at the time of publication. Ballard Power Systems, Inc. reserves the right to change specications, product appearance or to discontinue products at any time (04/2010). , Ballard®, Powered by Ballard®, FCgen™ and FCvelocity™ are trademarks of Ballard Power Systems Inc. Ballard Power Systems, Inc. 9000 Glenlyon Parkway Burnaby, British Columbia Canada, V5J 5J8 TEL: (+1) 604.454.0900 FAX: (+1) 604.412.4700 www.ballard.com NOTE: Specications are for a stack prototype and are subject to change without notication. Type: PEM (Proton Exchange Membrane) fuel cell stack Performance:1 Rated Power 42 W/cell Rated current 65 Amps DC voltage 642 mV/cell Fuel: Hydrogen 99.95% or better Fuel supply pressure 0.15 to 0.5 bar g Fuel ow rate ~0.5 slpm/cell2 Oxidant/Coolant: Coolant Air Coolant ow rate ~70 slpm/cell2 Temperatures: Operating temperature -20°C to 52°C Start up temperature  -10°C Start Up Time: Start up to 80% rated power ~20 seconds Physical Characteristics: Length x width x height 363 x 103 x 351 mm (56-cell stack) Mass 11.0 kg Product Certication CAN/CSA-C22.2 No. 62282-2 Fuel Cell Modules PRODUCT SPECIFICATIONS 1. Performance specications at lab ambient conditions (20°C, 30% relative humidity) 2. At rated power. SPC5101559-0E SMARTER ENERGY THROUGH FOCUSED FUEL CELL INNOVATION
