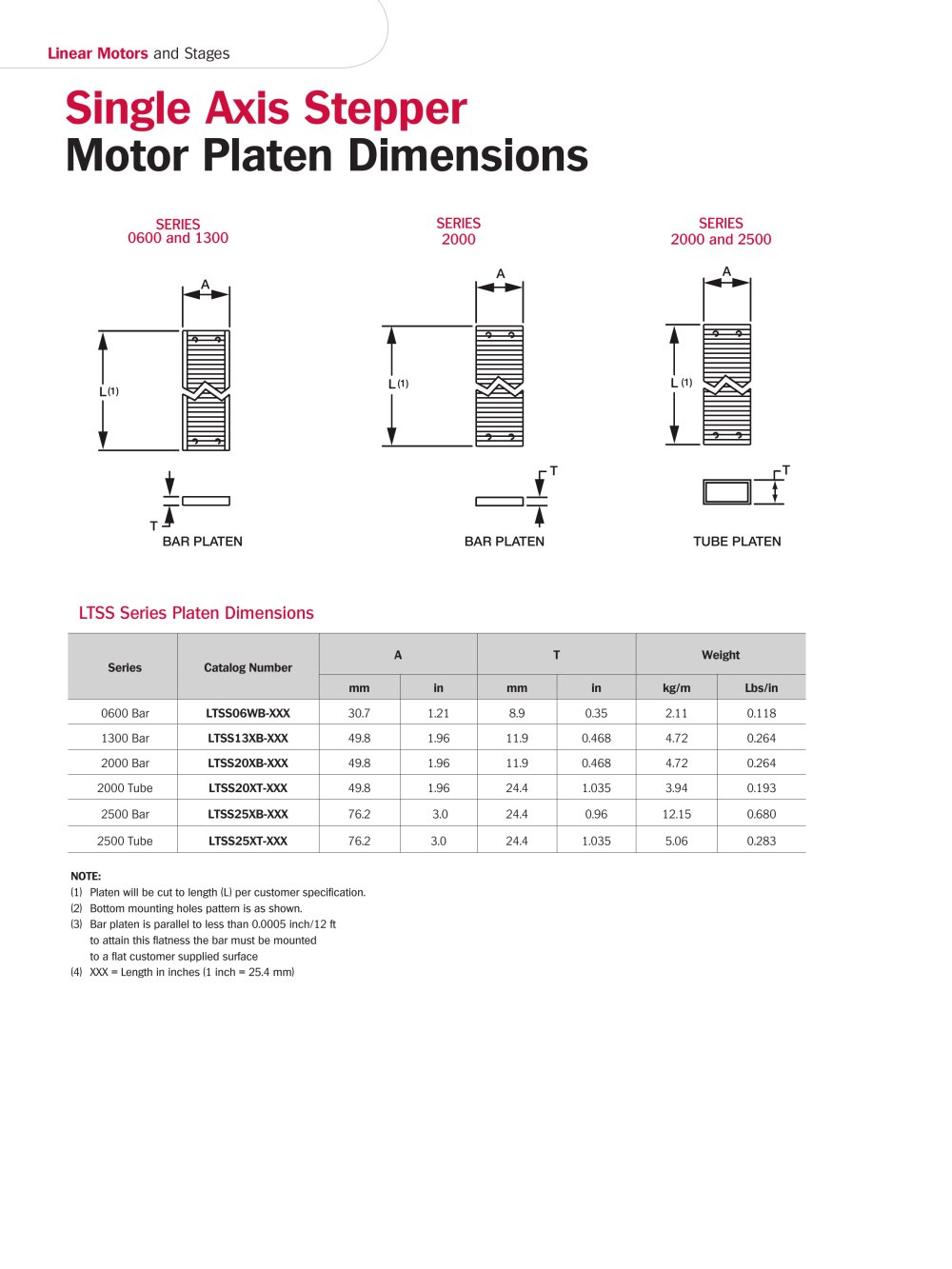

Linear motors and Stages

Single Axis Stepper motor Platen Dimensions

n

n

r-rf

TUBE PLATEN

LTSS Series Platen Dimensions


	Sedes	Catalpg Number	A		T		Weight
	Sedes	Catalpg Number	mm	ta	mm	to	kgrtn	Lhs/ln
	0600 Bar	LTSS06WB-XXX	30.7	1.21	8.9	0.35	2.11	0.118
	1300 Bar	LTSS13XB-XXX	49.8	1.96	11.9	0.468	4.72	0.264
	2000 Bar	LTSS20XB-XXX	49.8	196	11.9	0.468	4.72	0.264
	2000 Tuba	LTSS20XT-XXX	49.8	1.96	24.4	1.035	3.94	0.193
	2500 Bar	LTS525XB-XXX	76.2	3.0	24.4	0.96	12.15	0.680
	2500 rube	LTSS25XT-XXX	76.2	3.0	24.4	1.035	5.06	0.283
