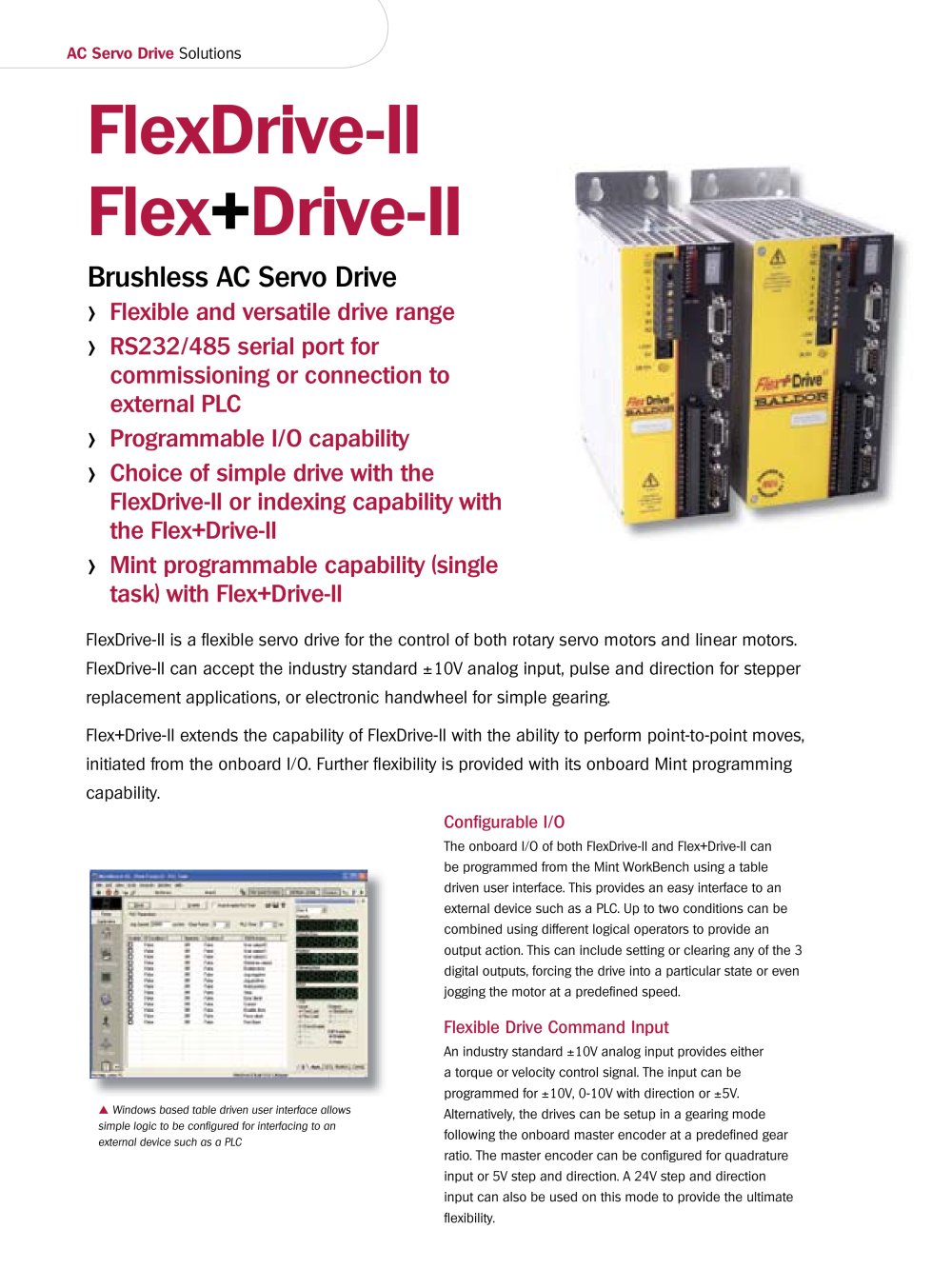

FlexDrive-II is a flexible servo drive for the control of both rotary servo motors and linear motors. FlexDrive-II can accept the industry standard ±10V analog input, pulse and direction for stepper replacement applications, or electronic handwheel for simple gearing. Flex+Drive-II extends the capability of FlexDrive-II with the ability to perform point-to-point moves, initiated from the onboard I/O. Further flexibility is provided with its onboard Mint programming capability. Configurable I/O The onboard I/O of both FlexDrive-II and Flex+Drive-II can be programmed from the Mint WorkBench using a table driven user interface. This provides an easy interface to an external device such as a PLC. Up to two conditions can be combined using different logical operators to provide an output action. This can include setting or clearing any of the 3 digital outputs, forcing the drive into a particular state or even jogging the motor at a predefined speed. Flexible Drive Command Input An industry standard ±10V analog input provides either a torque or velocity control signal. The input can be programmed for ±10V, 0-10V with direction or ±5V. |
