TS - flush diaphragm tank spud seal

TS - flush diaphragm tank spud seal
2Pages

Catalog excerpts

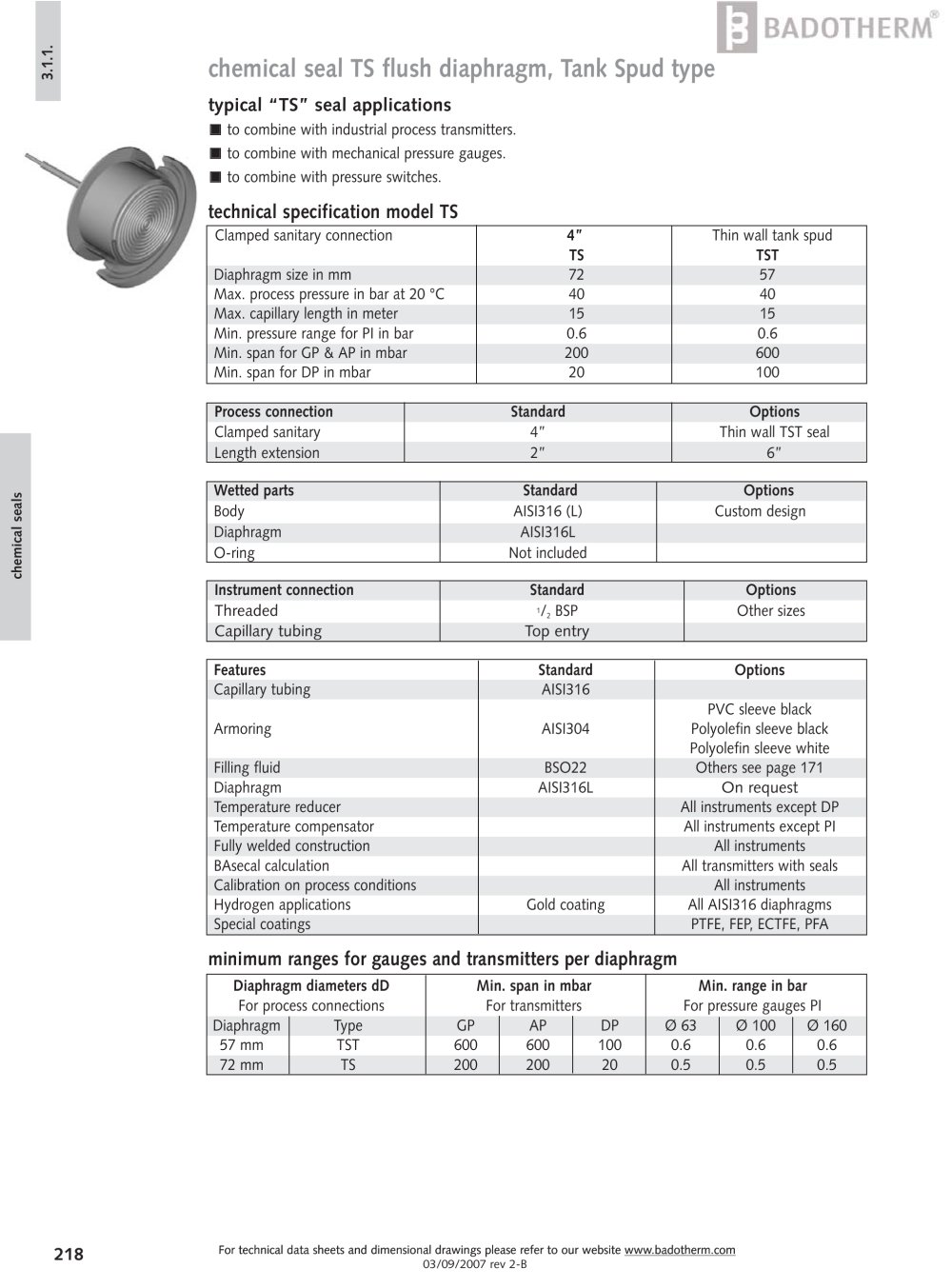

For technical data sheets and dimensional drawings please refer to our website www.badotherm.com 03/09/2007 rev 2-B 218 chemical seals 3.1.1. chemical seal TS flush diaphragm, Tank Spud type typical “TS” seal applications to combine with industrial process transmitters. to combine with mechanical pressure gauges. to combine with pressure switches. technical specification model TS Clamped sanitary connection 4” Thin wall tank spud TS TST Diaphragm size in mm 72 57 Max. process pressure in bar at 20 °C 40 40 Max. capillary length in meter 15 15 Min. pressure range for PI in bar 0.6 0.6 Min. span for GP & AP in mbar 200 600 Min. span for DP in mbar 20 100 Process connection Standard Options Clamped sanitary 4” Thin wall TST seal Length extension 2” 6” Wetted parts Standard Options Body AISI316 (L) Custom design Diaphragm AISI316L O-ring Not included Instrument connection Standard Options Threaded 1/2BSP Other sizes Capillary tubing Top entry Features Standard Options Capillary tubing AISI316 PVC sleeve black Armoring AISI304 Polyolefin sleeve black Polyolefin sleeve white Filling fluid BSO22 Others see page 171 Diaphragm AISI316L On request Temperature reducer All instruments except DP Temperature compensator All instruments except PI Fully welded construction All instruments BAsecal calculation All transmitters with seals Calibration on process conditions All instruments Hydrogen applications Gold coating All AISI316 diaphragms Special coatings PTFE, FEP, ECTFE, PFA minimum ranges for gauges and transmitters per diaphragm Diaphragm diameters dD Min. span in mbar Min. range in bar For process connections For transmitters For pressure gauges PI Diaphragm Type GP AP DP Ø 63 Ø 100 Ø 160 57 mm TST 600 600 100 0.6 0.6 0.6 72 mm TS 200 200 20 0.5 0.5 0.5

Open the catalog to page 1

For technical data sheets and dimensional drawings please refer to our website www.badotherm.com 01/01/2006 rev 2 219 3.1.1. chemical seals Tank spud seal type TS * Weld spuds ( not included ) but available on request Temperature effect is per +10 °C and measured from 20 °C. temperature effect on transmitter, capillary and seal Diaphragm diameters dD Temp. effect in mbar Temp. effect in mbar For process connections For DP transmitters For GP /AP transmitters Diaphragm Type DP Seal Cap /mtr GP/AP Seal Cap / mtr 57 mm TST 0.15 0.66 0.63 1.70 2.65 3.9 72 mm TS 0.10 0.24 0.20 0.55 0.95 1.2...

Open the catalog to page 2
