SA-serie - Sanitary flush diaphragm seal

SA-serie - Sanitary flush diaphragm seal
3Pages

Catalog excerpts

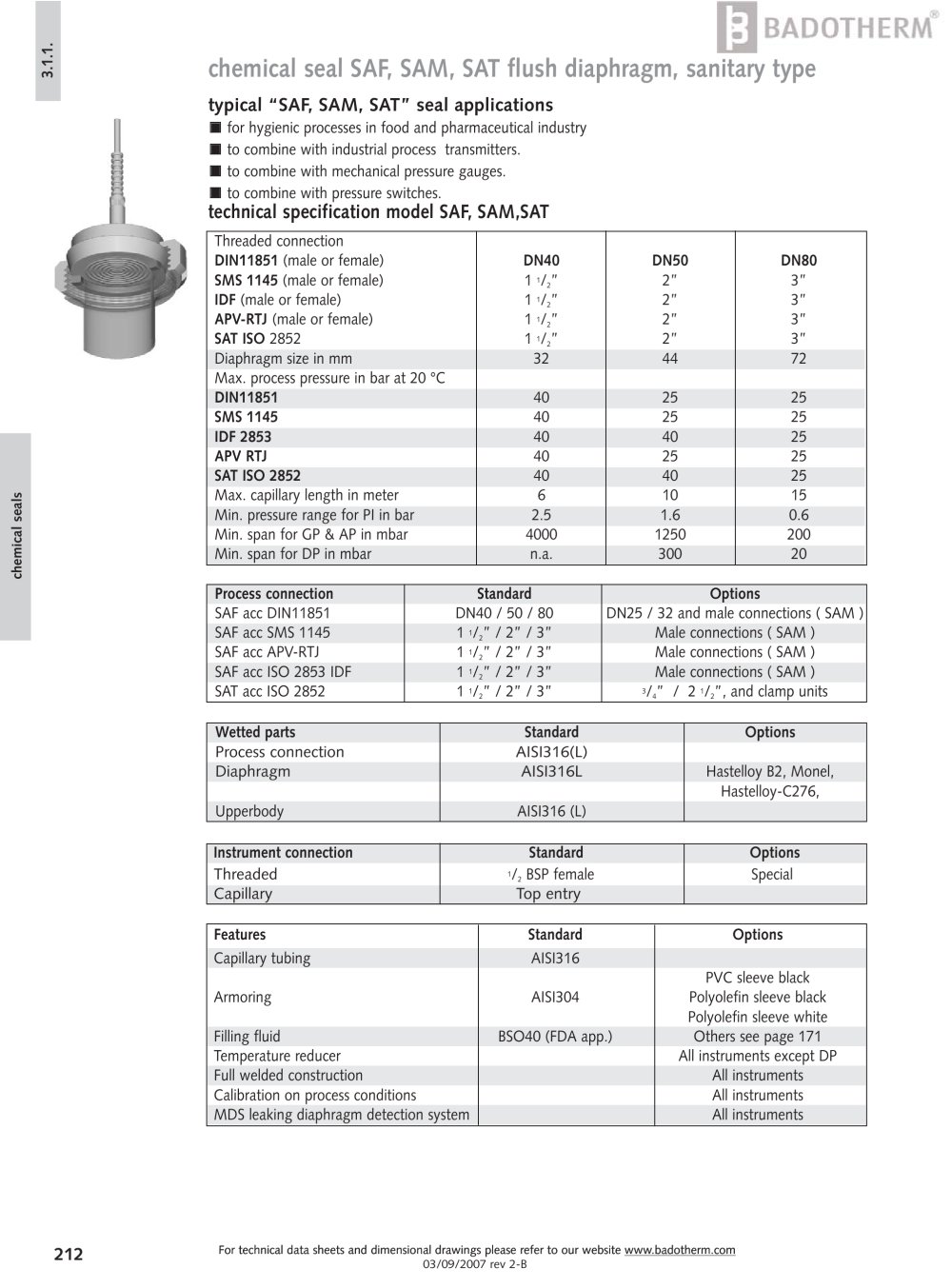

SA-serie - Sanitary flush diaphragm seal - 1

For technical data sheets and dimensional drawings please refer to our website www.badotherm.com 03/09/2007 rev 2-B 212 chemical seals 3.1.1. chemical seal SAF, SAM, SAT flush diaphragm, sanitary type typical “SAF, SAM, SAT” seal applications for hygienic processes in food and pharmaceutical industry to combine with industrial process transmitters. to combine with mechanical pressure gauges. to combine with pressure switches. technical specification model SAF, SAM,SAT Threaded connection DIN11851 (male or female) DN40 DN50 DN80 SMS 1145 (male or female) 1 1/2” 2” 3” IDF (male or female) 1 1/2” 2” 3” APV-RTJ (male or female) 1 1/2” 2” 3” SAT ISO 2852 1 1/2” 2” 3” Diaphragm size in mm 32 44 72 Max. process pressure in bar at 20 °C DIN11851 40 25 25 SMS 1145 40 25 25 IDF 2853 40 40 25 APV RTJ 40 25 25 SAT ISO 2852 40 40 25 Max. capillary length in meter 6 10 15 Min. pressure range for PI in bar 2.5 1.6 0.6 Min. span for GP & AP in mbar 4000 1250 200 Min. span for DP in mbar n.a. 300 20 Process connection Standard Options SAF acc DIN11851 DN40 / 50 / 80 DN25 / 32 and male connections ( SAM ) SAF acc SMS 1145 1 1/2” / 2” / 3” Male connections ( SAM ) SAF acc APV-RTJ 1 1/2” / 2” / 3” Male connections ( SAM ) SAF acc ISO 2853 IDF 1 1/2” / 2” / 3” Male connections ( SAM ) SAT acc ISO 2852 1 1/2” / 2” / 3” 3/4” / 2 1/2”, and clamp units Wetted parts Standard Options Process connection AISI316(L) Diaphragm AISI316L Hastelloy B2, Monel, Hastelloy-C276, Upperbody AISI316 (L) Instrument connection Standard Options Threaded 1/2 BSP female Special Capillary Top entry Features Standard Options Capillary tubing AISI316 PVC sleeve black Armoring AISI304 Polyolefin sleeve black Polyolefin sleeve white Filling fluid BSO40 (FDA app.) Others see page 171 Temperature reducer All instruments except DP Full welded construction All instruments Calibration on process conditions All instruments MDS leaking diaphragm detection system All instruments

Open the catalog to page 1

SA-serie - Sanitary flush diaphragm seal - 2

For technical data sheets and dimensional drawings please refer to our website www.badotherm.com 01/01/2006 rev 2 213 3.1.1. chemical seals Temperature effect is per +10 °C and measured from 20 °C. minimum ranges on gauges and transmitters per diaphragm Diaphragm diameters dD Min. span in mbar Min. range in bar For process connections For transmitters For pressure gauges PI Diaphragm Thread GP AP DP Ø 63 Ø 100 Ø 160 32 mm 1 1/2” / DN40 2000 2000 n.a. 2.5 2.5 n.a. 44 mm 2” / DN50 1250 1250 300 1.6 1.6 1.6 72 mm 3” / DN80 200 200 20 0.6 0.6 0.6 temperature effect on pressure indicators,...
