M5A1 - remotely mounted five valve manifold
2Pages

{{requestButtons}}

Catalog excerpts

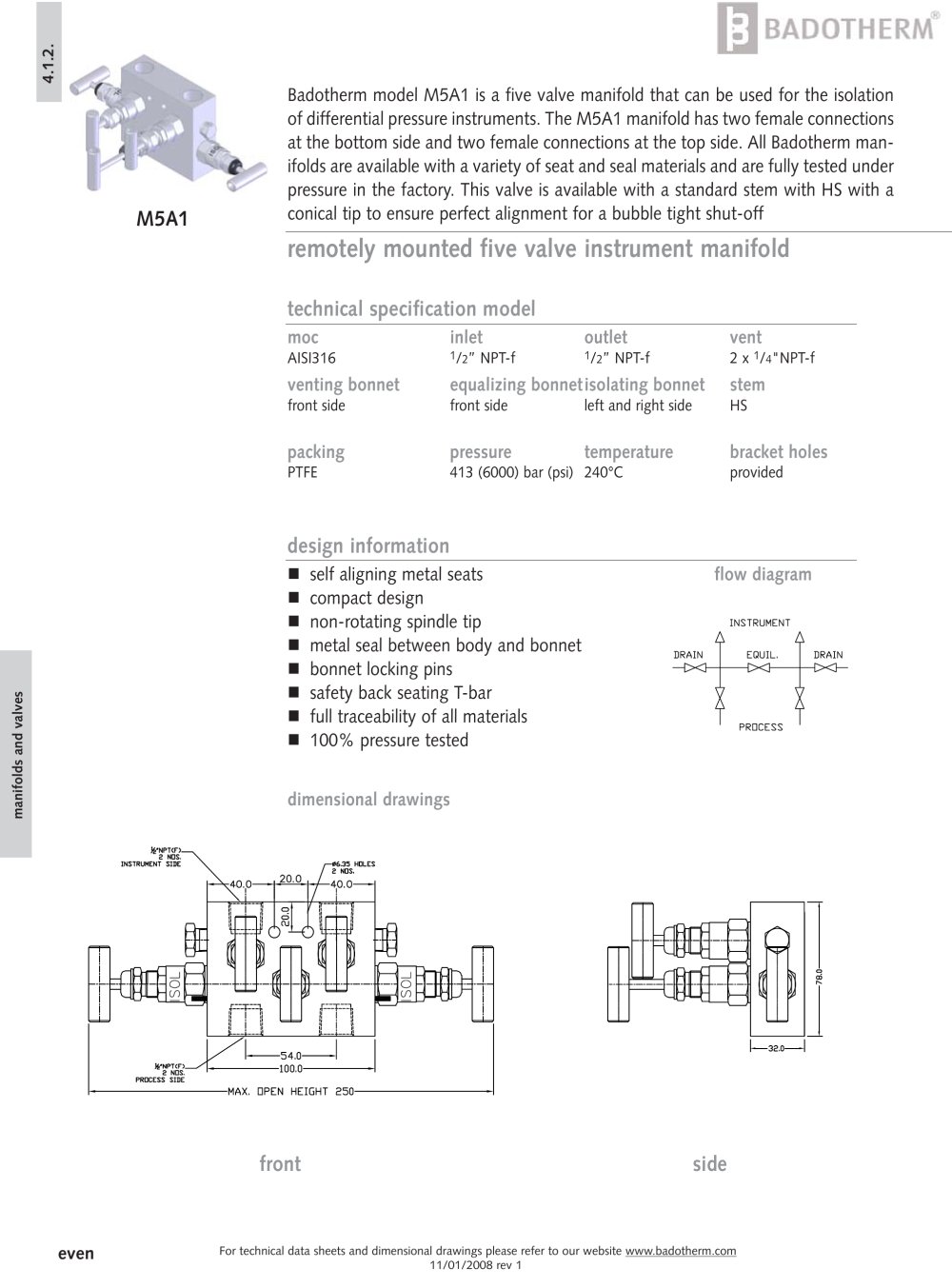

M5A1 - remotely mounted five valve manifold - 1

technical specification model moc inlet outlet vent AISI316 1/2” NPT-f 1/2” NPT-f 2 x 1/4"NPT-f venting bonnet equalizing bonnetisolating bonnet stem front side front side left and right side HS packing pressure temperature bracket holes PTFE 413 (6000) bar (psi) 240°C provided design information .. self aligning metal seats flow diagram .. compact design .. non-rotating spindle tip .. metal seal between body and bonnet .. bonnet locking pins .. safety back seating T-bar .. full traceability of all materials .. 100% pressure tested dimensional drawings For technical data sheets and dimensional drawings please refer to our website www.badotherm.com 11/01/2008 rev 1 even remotely mounted five valve instrument manifold Badotherm model M5A1 is a five valve manifold that can be used for the isolation of differential pressure instruments. The M5A1 manifold has two female connections at the bottom side and two female connections at the top side. All Badotherm manifolds are available with a variety of seat and seal materials and are fully tested under pressure in the factory. This valve is available with a standard stem with HS with a M5A1 conical tip to ensure perfect alignment for a bubble tight shut-off 4.1.2. manifolds and valves front side

Open the catalog to page 1
M5A1 - remotely mounted five valve manifold - 2

M5A1 - additional information options and special execution at extra cost moc carbon steel, AISI316L, AISI304, Monel, Hastelloy inlet other sizes on request outlet other sizes on request stem SO gland packing PTFE glass filled, graphoil pressure up to 700 bar (10.000 psi) temperature up to 550°C handle with anti tamper facility with removable T-bar key plugs hexagon blind plugs support for brackets see bracket datasheet certificates material, test and NACE certificates cleaning for oxygen service design information pressure table metal seal HS type For technical data sheets and dimensional...

Open the catalog to page 2
