M3T - direct mounted three valve manifold

M3T - direct mounted three valve manifold
2Pages

Catalog excerpts

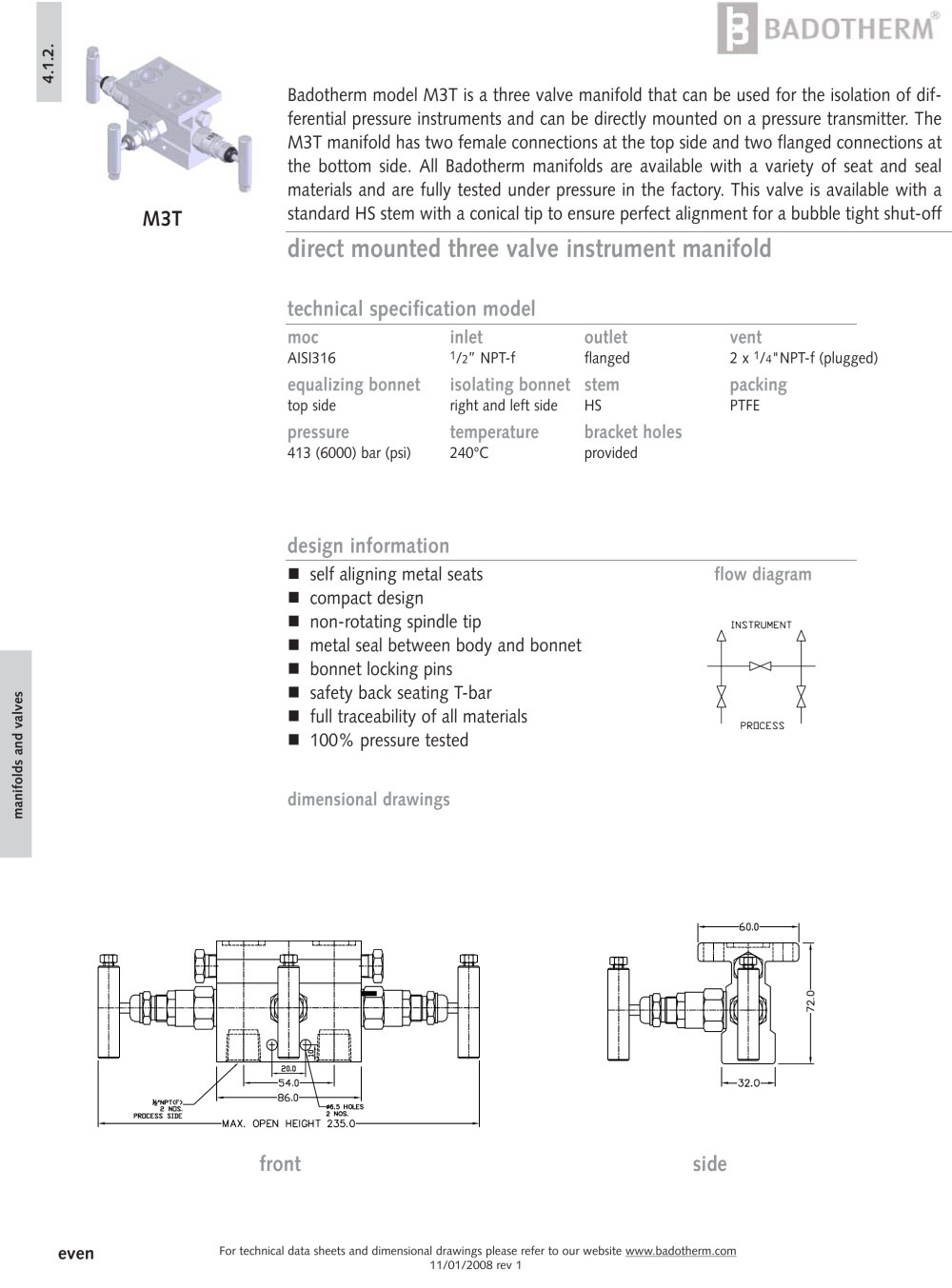

M3T - direct mounted three valve manifold - 1

technical specification model moc inlet outlet vent AISI316 1/2” NPT-f flanged 2 x 1/4"NPT-f (plugged) equalizing bonnet isolating bonnet stem packing top side right and left side HS PTFE pressure temperature bracket holes 413 (6000) bar (psi) 240°C provided design information .. self aligning metal seats flow diagram .. compact design .. non-rotating spindle tip .. metal seal between body and bonnet .. bonnet locking pins .. safety back seating T-bar .. full traceability of all materials .. 100% pressure tested dimensional drawings For technical data sheets and dimensional drawings please refer to our website www.badotherm.com 11/01/2008 rev 1 even direct mounted three valve instrument manifold Badotherm model M3T is a three valve manifold that can be used for the isolation of differential pressure instruments and can be directly mounted on a pressure transmitter. The M3T manifold has two female connections at the top side and two flanged connections at the bottom side. All Badotherm manifolds are available with a variety of seat and seal materials and are fully tested under pressure in the factory. This valve is available with a M3T standard HS stem with a conical tip to ensure perfect alignment for a bubble tight shut-off 4.1.2. manifolds and valves front side

Open the catalog to page 1

M3T - direct mounted three valve manifold - 2

M3T - additional information options and special execution at extra cost moc carbon steel, AISI316L, AISI304, Monel, Hastelloy inlet other sizes on request stem SO gland packing PTFE glass filled, graphoil pressure up to 700 bar (10.000 psi) temperature up to 550°C handle with anti tamper facility with removable T-bar key plugs hexagon blind plugs support for brackets see bracket datasheet certificates material, test and NACE certificates cleaning for oxygen service design information pressure table metal seal HS type For technical data sheets and dimensional drawings please refer to our...
