M2A - remotely mounted two way valve manifold - 1

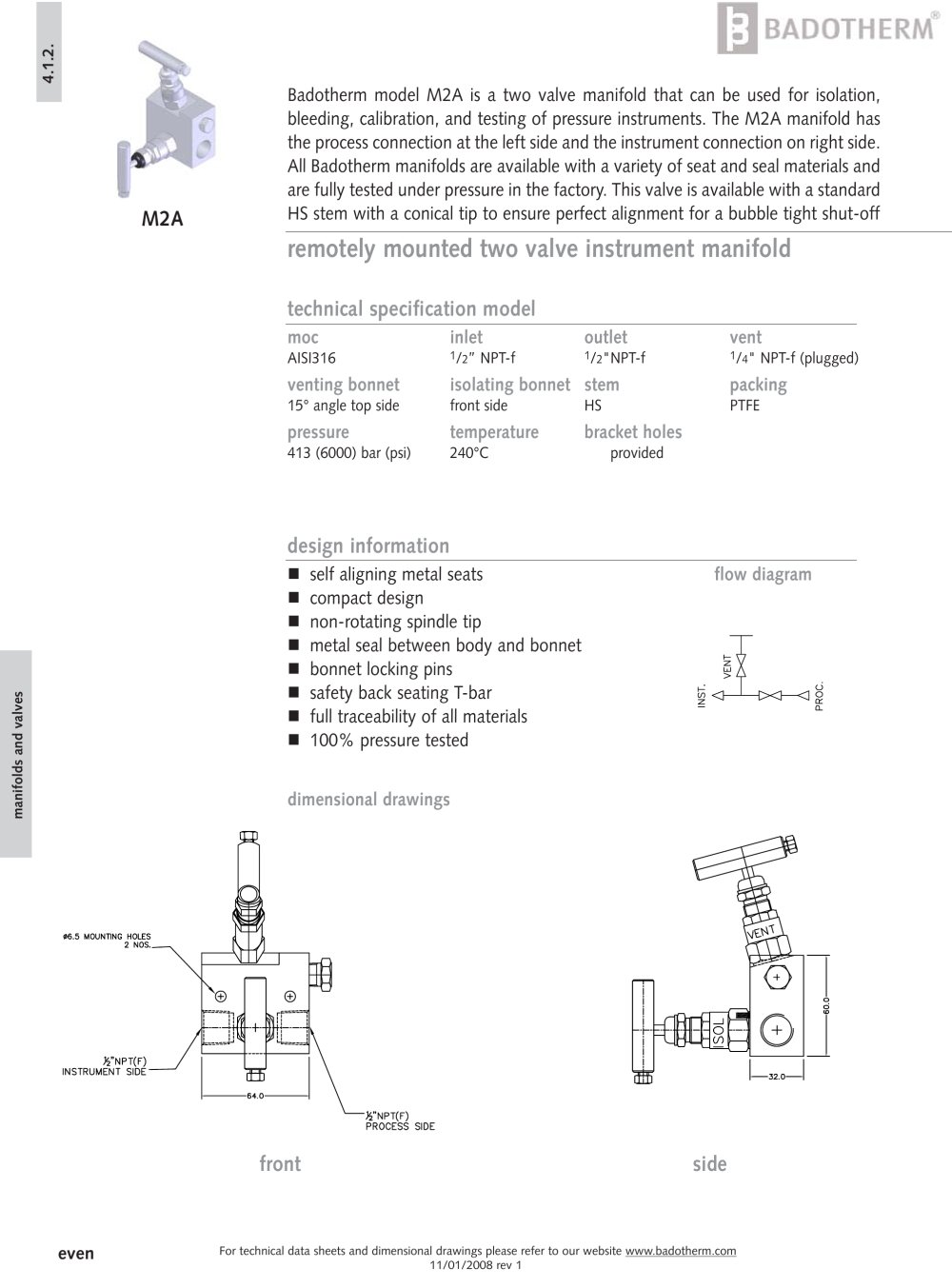

front side technical specification model moc inlet outlet vent AISI316 1/2” NPT-f 1/2"NPT-f 1/4" NPT-f (plugged) venting bonnet isolating bonnet stem packing 15° angle top side front side HS PTFE pressure temperature bracket holes 413 (6000) bar (psi) 240°C provided design information .. self aligning metal seats flow diagram .. compact design .. non-rotating spindle tip .. metal seal between body and bonnet .. bonnet locking pins .. safety back seating T-bar .. full traceability of all materials .. 100% pressure tested dimensional drawings For technical data sheets and dimensional drawings please refer to our website www.badotherm.com 11/01/2008 rev 1 even remotely mounted two valve instrument manifold Badotherm model M2A is a two valve manifold that can be used for isolation, bleeding, calibration, and testing of pressure instruments. The M2A manifold has the process connection at the left side and the instrument connection on right side. All Badotherm manifolds are available with a variety of seat and seal materials and are fully tested under pressure in the factory. This valve is available with a standard M2A HS stem with a conical tip to ensure perfect alignment for a bubble tight shut-off 4.1.2. manifolds and valves

Open the catalog to page 1

M2A - remotely mounted two way valve manifold - 2

M2A - additional information options and special execution at extra cost moc carbon steel, AISI316L, AISI304, Monel, Hastelloy inlet other sizes on request outlet other sizes on request stem SO gland packing PTFE glass filled, graphoil pressure up to 700 bar (10.000 psi) temperature up to 550°C handle with anti tamper facility with removable T-bar key plugs hexagon blind plugs support for brackets see bracket datasheet certificates material, test and NACE certificates cleaning for oxygen service design information pressure table metal seal HS type For technical data sheets and dimensional...
