BF-LGP - Low gauge pressure chemical seal with flush diaphragm - Badotherm Group - #1

Text version of the page

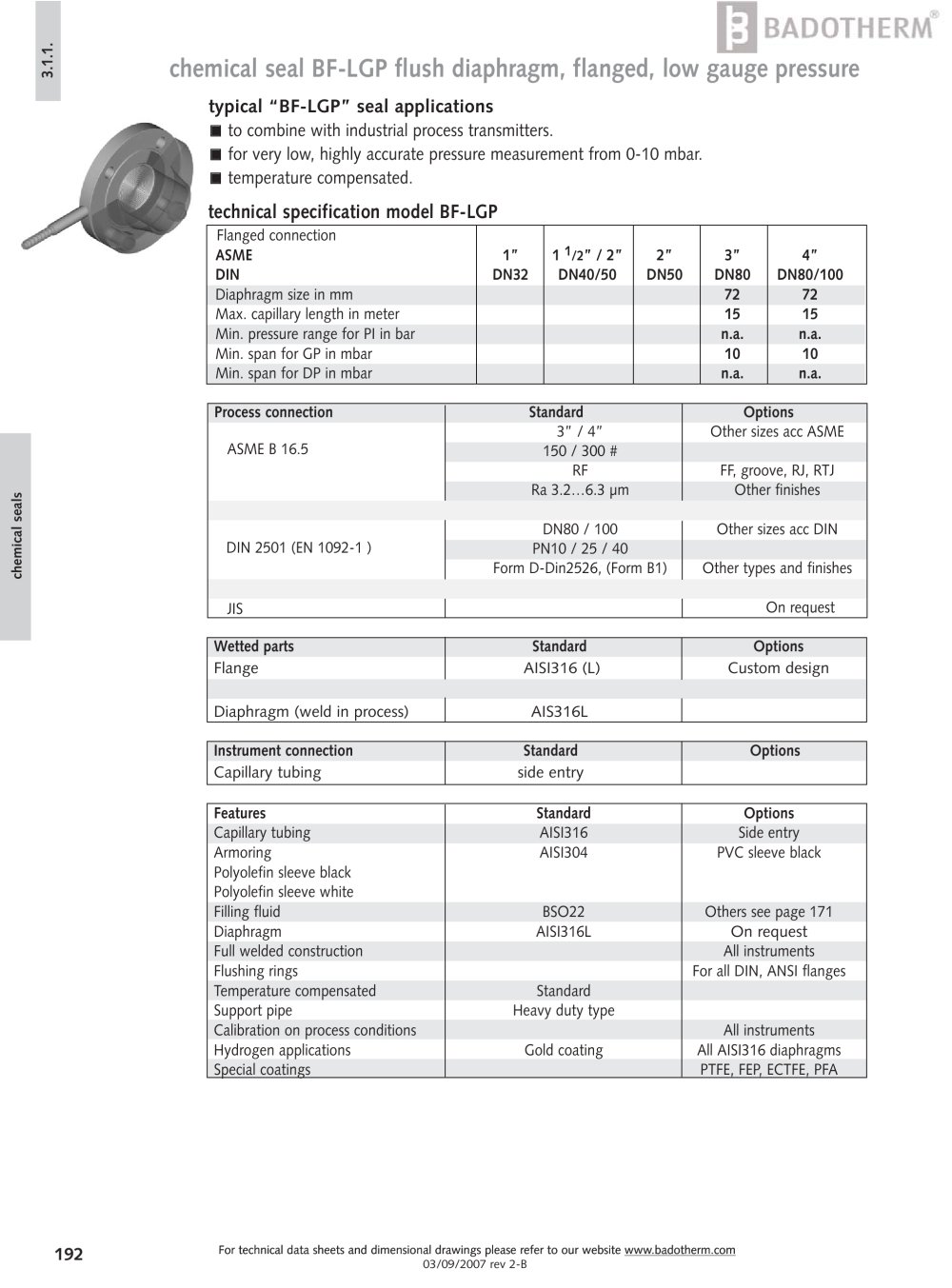

For technical data sheets and dimensional drawings please refer to our website www.badotherm.com 03/09/2007 rev 2-B 192 chemical seals 3.1.1. typical “BF-LGP” seal applications to combine with industrial process transmitters. for very low, highly accurate pressure measurement from 0-10 mbar. temperature compensated. chemical seal BF-LGP flush diaphragm, flanged, low gauge pressure ASME B 16.5 DIN 2501 (EN 1092-1 ) 3” / 4” Other sizes acc ASME 150 / 300 # RF FF, groove, RJ, RTJ Ra 3.2…6.3 ìm Other finishes DN80 / 100 Other sizes acc DIN PN10 / 25 / 40 Form D-Din2526, (Form B1) Other types and finishes JIS On request Process connection Standard Options Wetted parts Standard Options Flange AISI316 (L) Custom design Diaphragm (weld in process) AIS316L Instrument connection Standard Options Capillary tubing side entry Features Standard Options Capillary tubing AISI316 Side entry Armoring AISI304 PVC sleeve black Polyolefin sleeve black Polyolefin sleeve white Filling fluid BSO22 Others see page 171 Diaphragm AISI316L On request Full welded construction All instruments Flushing rings For all DIN, ANSI flanges Temperature compensated Standard Support pipe Heavy duty type Calibration on process conditions All instruments Hydrogen applications Gold coating All AISI316 diaphragms Special coatings PTFE, FEP, ECTFE, PFA technical specification model BF-LGP Flanged connection ASME 1” 1 1/2” / 2” 2” 3” 4” DIN DN32 DN40/50 DN50 DN80 DN80/100 Diaphragm size in mm 72 72 Max. capillary length in meter 15 15 Min. pressure range for PI in bar n.a. n.a. Min. span for GP in mbar 10 10 Min. span for DP in mbar n.a. n.a.
