BDTGE18 - Stainless steel gasfilled thermometer every angle

BDTGE18 - Stainless steel gasfilled thermometer every angle
2Pages

Catalog excerpts

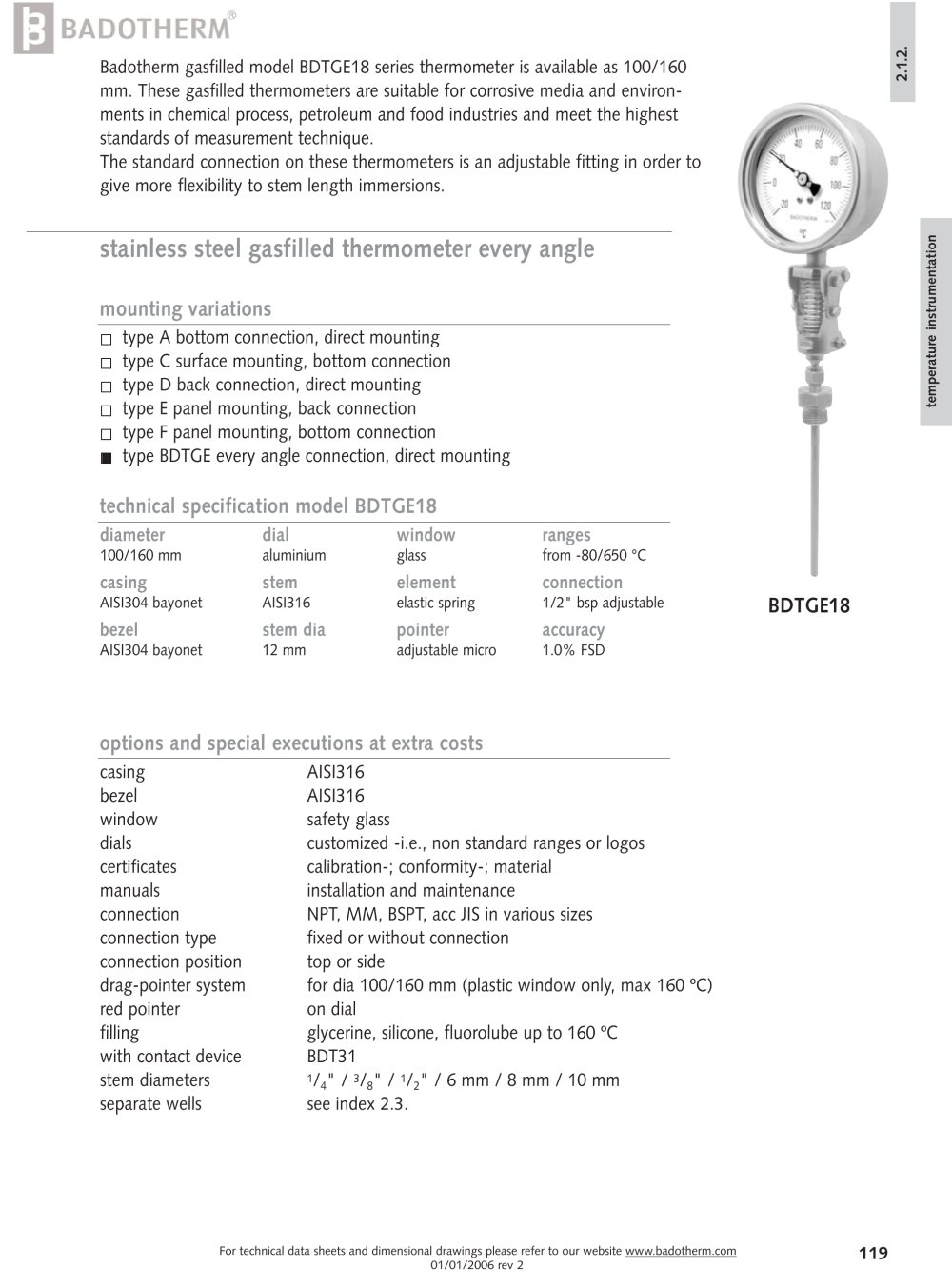

BDTGE18 - Stainless steel gasfilled thermometer every angle - 1

For technical data sheets and dimensional drawings please refer to our website www.badotherm.com 01/01/2006 rev 2 119 BDTGE18 2.1.2. temperature instrumentation Badotherm gasfilled model BDTGE18 series thermometer is available as 100/160 mm. These gasfilled thermometers are suitable for corrosive media and environments in chemical process, petroleum and food industries and meet the highest standards of measurement technique. The standard connection on these thermometers is an adjustable fitting in order to give more flexibility to stem length immersions. mounting variations type A bottom connection, direct mounting type C surface mounting, bottom connection type D back connection, direct mounting type E panel mounting, back connection type F panel mounting, bottom connection type BDTGE every angle connection, direct mounting technical specification model BDTGE18 diameter dial window ranges 100/160 mm aluminium glass from -80/650 °C casing stem element connection AISI304 bayonet AISI316 elastic spring 1/2" bsp adjustable bezel stem dia pointer accuracy AISI304 bayonet 12 mm adjustable micro 1.0% FSD options and special executions at extra costs casing AISI316 bezel AISI316 window safety glass dials customized -i.e., non standard ranges or logos certificates calibration-; conformity-; material manuals installation and maintenance connection NPT, MM, BSPT, acc JIS in various sizes connection type fixed or without connection connection position top or side drag-pointer system for dia 100/160 mm (plastic window only, max 160 ºC) red pointer on dial filling glycerine, silicone, fluorolube up to 160 ºC with contact device BDT31 stem diameters 1/4" / 3/8" / 1/2" / 6 mm / 8 mm / 10 mm separate wells see index 2.3. stainless steel gasfilled thermometer every angle

Open the catalog to page 1

BDTGE18 - Stainless steel gasfilled thermometer every angle - 2

operating details working range temperature limitations ___ bar maximum (without thermowell) pressure rating of stem 25 bar maximum (without termowell) design information ingress protection design IP 54 per EN 60 529 / IEC 529 DIN 13 190 IP 65 per EN 60 529 / IEC 529 (liquid filling only) drawings BDTGE18 - technical data sheet Permanent Short time ( 1 h) limitations measuring range per DIN 13 190 1,2 x measuring range up to 500 ºC 1,1 x measuring range beyond 500 ºC process -80 ºC to 650 ºC 15 ºC to 80 ºC -45 ºC to 250 ºC ambient -40 ºC to 60 ºC -25 ºC to 60 ºC -40 ºC to 60 ºC without...
