BDTG32 - contact stainless steel gasfilled capillary thermometer - 1

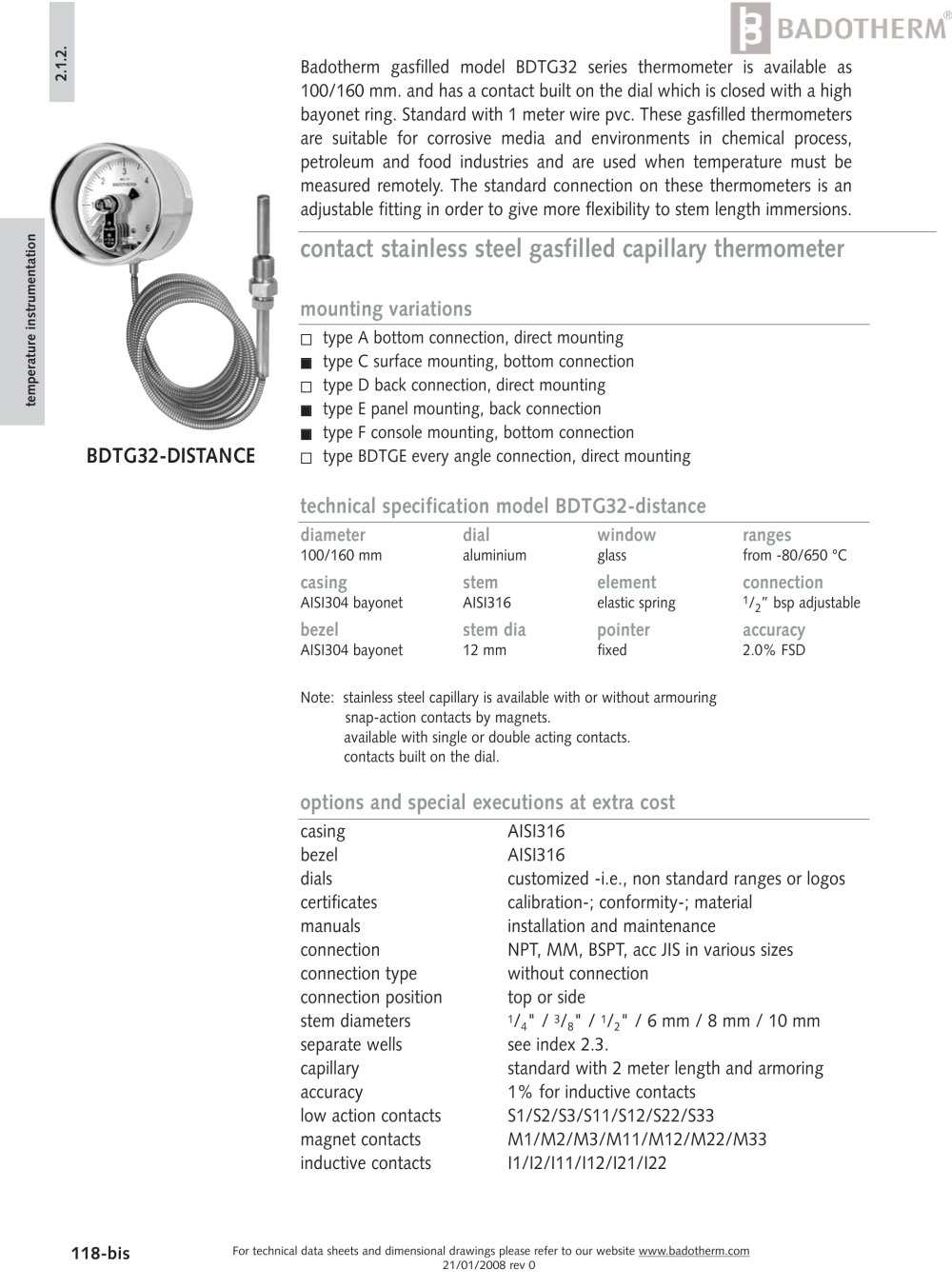

For technical data sheets and dimensional drawings please refer to our website www.badotherm.com 21/01/2008 rev 0 118-bis BDTG32-DISTANCE 2.1.2. contact stainless steel gasfilled capillary thermometer Badotherm gasfilled model BDTG32 series thermometer is available as 100/160 mm. and has a contact built on the dial which is closed with a high bayonet ring. Standard with 1 meter wire pvc. These gasfilled thermometers are suitable for corrosive media and environments in chemical process, petroleum and food industries and are used when temperature must be measured remotely. The standard connection on these thermometers is an adjustable fitting in order to give more flexibility to stem length immersions. mounting variations type A bottom connection, direct mounting type C surface mounting, bottom connection type D back connection, direct mounting type E panel mounting, back connection type F console mounting, bottom connection type BDTGE every angle connection, direct mounting technical specification model BDTG32-distance diameter dial window ranges 100/160 mm aluminium glass from -80/650 °C casing stem element connection AISI304 bayonet AISI316 elastic spring 1/2” bsp adjustable bezel stem dia pointer accuracy AISI304 bayonet 12 mm fixed 2.0% FSD Note: stainless steel capillary is available with or without armouring snap-action contacts by magnets. available with single or double acting contacts. contacts built on the dial. options and special executions at extra cost casing AISI316 bezel AISI316 dials customized -i.e., non standard ranges or logos certificates calibration-; conformity-; material manuals installation and maintenance connection NPT, MM, BSPT, acc JIS in various sizes connection type without connection connection position top or side stem diameters 1/4" / 3/8" / 1/2" / 6 mm / 8 mm / 10 mm separate wells see index 2.3. capillary standard with 2 meter length and armoring accuracy 1% for inductive contacts low action contacts S1/S2/S3/S11/S12/S22/S33 magnet contacts M1/M2/M3/M11/M12/M22/M33 inductive contacts I1/I2/I11/I12/I21/I22 temperature instrumentation

Open the catalog to page 1

BDTG32 - contact stainless steel gasfilled capillary thermometer - 2

type C type E BDTG32-DISTANCE - technical data sheet 118-bis-1 operating details working range temperature limitations ___ bar maximum (without thermowell) pressure rating of stem 25 bar maximum (without termowell) design information ingress protection design IP 54 per EN 60 529 / IEC 529 EN 13 190 drawings Note: wiring side for dia 100 mm wiring back for dia 160 mm front and back flange dimensions are on page 18 and 19 Permanent Short time ( 1 h) limitations measuring range per EN 13 190 1,2 x measuring range up to 500 ºC 1,1 x measuring range beyond 500 ºC process -80 ºC to 650 ºC 15 ºC...

Open the catalog to page 2

BDTG32 - contact stainless steel gasfilled capillary thermometer - 3

118-bis-2 dimensions ns d d1 L S S1 - - 100 102 100 86 to specify 12 - - 160 161,5 159 100 to specify 12 - - Note : dimensions are in mm type F type F BDTG32-DISTANCE - technical data sheet electrical wiring for contact gauges low action/magnetic contacts inductive contacts

Open the catalog to page 3
