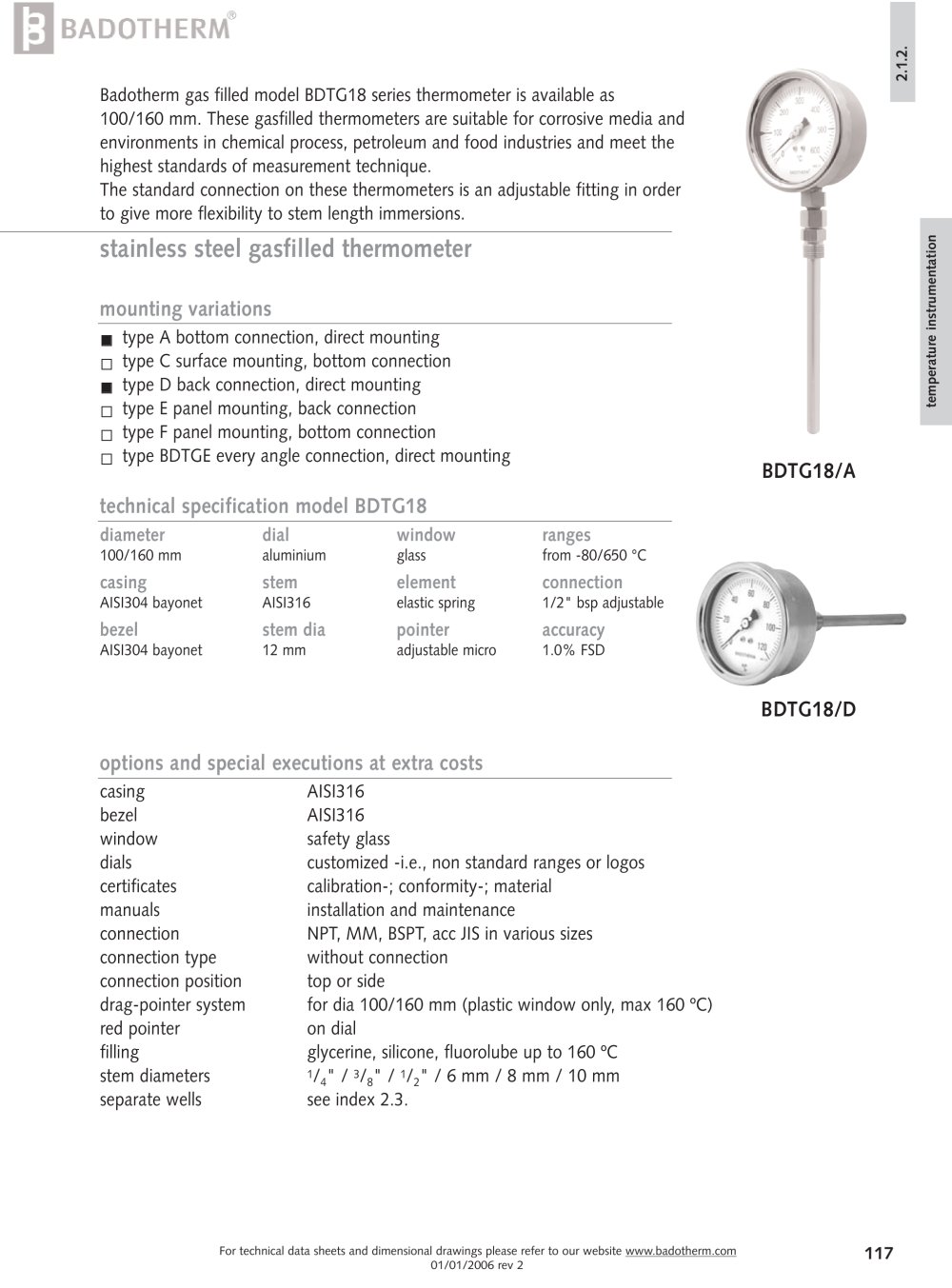

For technical data sheets and dimensional drawings please refer to our website www.badotherm.com 01/01/2006 rev 2 117 2.1.2. temperature instrumentation BDTG18/A BDTG18/D stainless steel gasfilled thermometer Badotherm gas filled model BDTG18 series thermometer is available as 100/160 mm. These gasfilled thermometers are suitable for corrosive media and environments in chemical process, petroleum and food industries and meet the highest standards of measurement technique. The standard connection on these thermometers is an adjustable fitting in order to give more flexibility to stem length immersions. mounting variations type A bottom connection, direct mounting type C surface mounting, bottom connection type D back connection, direct mounting type E panel mounting, back connection type F panel mounting, bottom connection type BDTGE every angle connection, direct mounting technical specification model BDTG18 diameter dial window ranges 100/160 mm aluminium glass from -80/650 °C casing stem element connection AISI304 bayonet AISI316 elastic spring 1/2" bsp adjustable bezel stem dia pointer accuracy AISI304 bayonet 12 mm adjustable micro 1.0% FSD options and special executions at extra costs casing AISI316 bezel AISI316 window safety glass dials customized -i.e., non standard ranges or logos certificates calibration-; conformity-; material manuals installation and maintenance connection NPT, MM, BSPT, acc JIS in various sizes connection type without connection connection position top or side drag-pointer system for dia 100/160 mm (plastic window only, max 160 ºC) red pointer on dial filling glycerine, silicone, fluorolube up to 160 ºC stem diameters 1/4" / 3/8" / 1/2" / 6 mm / 8 mm / 10 mm separate wells see index 2.3.
