BDT36-18 - All stainless steel contact pressure gauge - 1

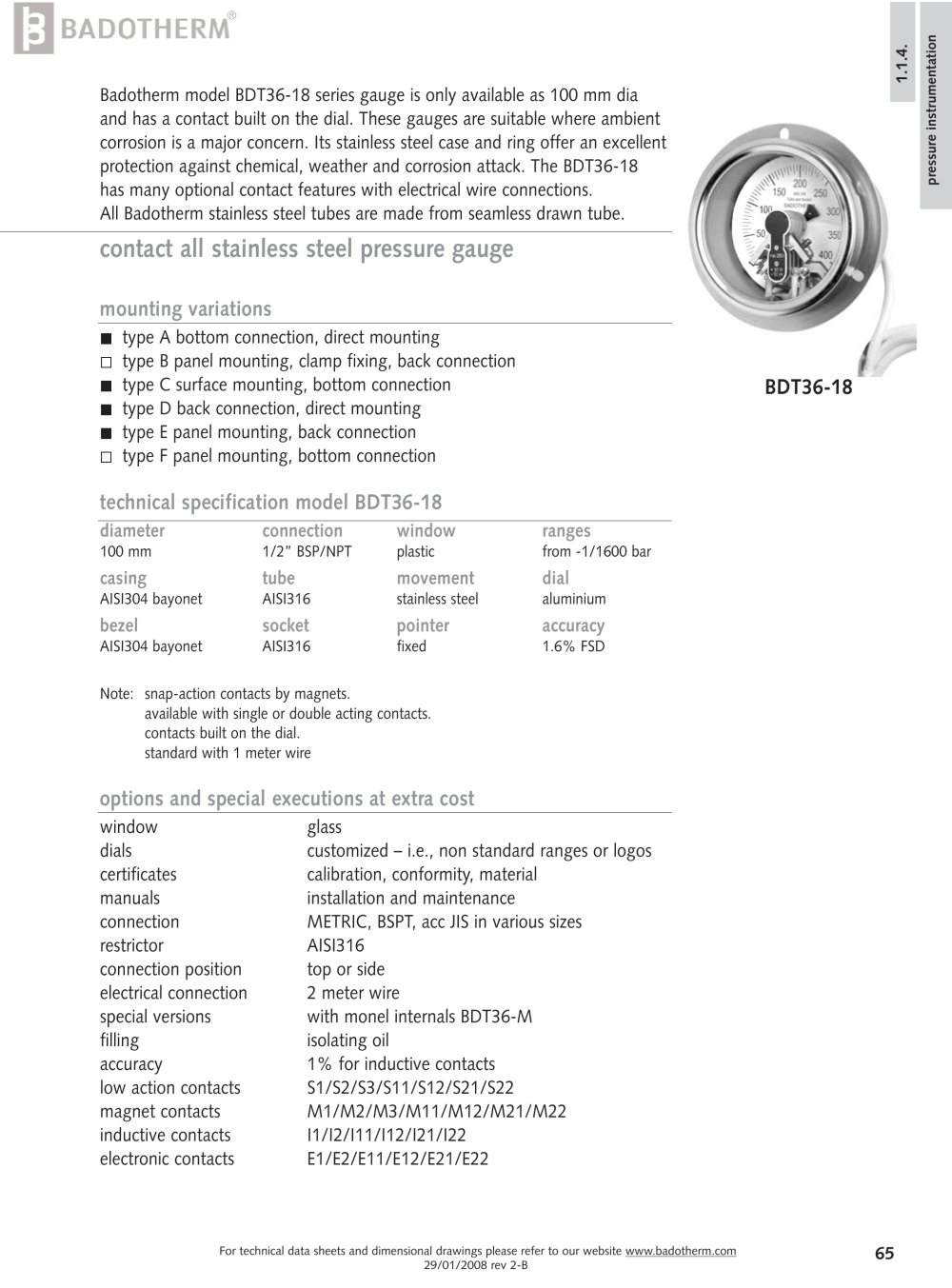

For technical data sheets and dimensional drawings please refer to our website www.badotherm.com 29/01/2008 rev 2-B 65 pressure instrumentation 1.1.4. BDT36-18 contact all stainless steel pressure gauge Badotherm model BDT36-18 series gauge is only available as 100 mm dia and has a contact built on the dial. These gauges are suitable where ambient corrosion is a major concern. Its stainless steel case and ring offer an excellent protection against chemical, weather and corrosion attack. The BDT36-18 has many optional contact features with electrical wire connections. All Badotherm stainless steel tubes are made from seamless drawn tube. mounting variations type A bottom connection, direct mounting type B panel mounting, clamp fixing, back connection type C surface mounting, bottom connection type D back connection, direct mounting type E panel mounting, back connection type F panel mounting, bottom connection technical specification model BDT36-18 diameter connection window ranges 100 mm 1/2” BSP/NPT plastic from -1/1600 bar casing tube movement dial AISI304 bayonet AISI316 stainless steel aluminium bezel socket pointer accuracy AISI304 bayonet AISI316 fixed 1.6% FSD Note: snap-action contacts by magnets. available with single or double acting contacts. contacts built on the dial. standard with 1 meter wire options and special executions at extra cost window glass dials customized – i.e., non standard ranges or logos certificates calibration, conformity, material manuals installation and maintenance connection METRIC, BSPT, acc JIS in various sizes restrictor AISI316 connection position top or side electrical connection 2 meter wire special versions with monel internals BDT36-M filling isolating oil accuracy 1% for inductive contacts low action contacts S1/S2/S3/S11/S12/S21/S22 magnet contacts M1/M2/M3/M11/M12/M21/M22 inductive contacts I1/I2/I11/I12/I21/I22 electronic contacts E1/E2/E11/E12/E21/E22

Open the catalog to page 1

BDT36-18 - All stainless steel contact pressure gauge - 2

pressure details working pressure pressure element over-pressure temperature details temperature limitations The variation of indication caused by the effects of temperature shall not exceed : ±0,04 x (ambient temperature-reference temperature)% of the span design information ingress protection design IP 65 per EN 60 529 / IEC 529 EN 837-1 drawings BDT36-18 - technical data sheet type A type D Note : dimensions are in mm dimensions ns d d1 L H h weight 100 110 100 82 140 112 0,8 kg BDT36-18 <100 bar AISI316 ..100 bar AISI316 process 100 ºC 90 ºC ambient -40 ºC to 60 ºC -40 ºC to 60 ºC...
