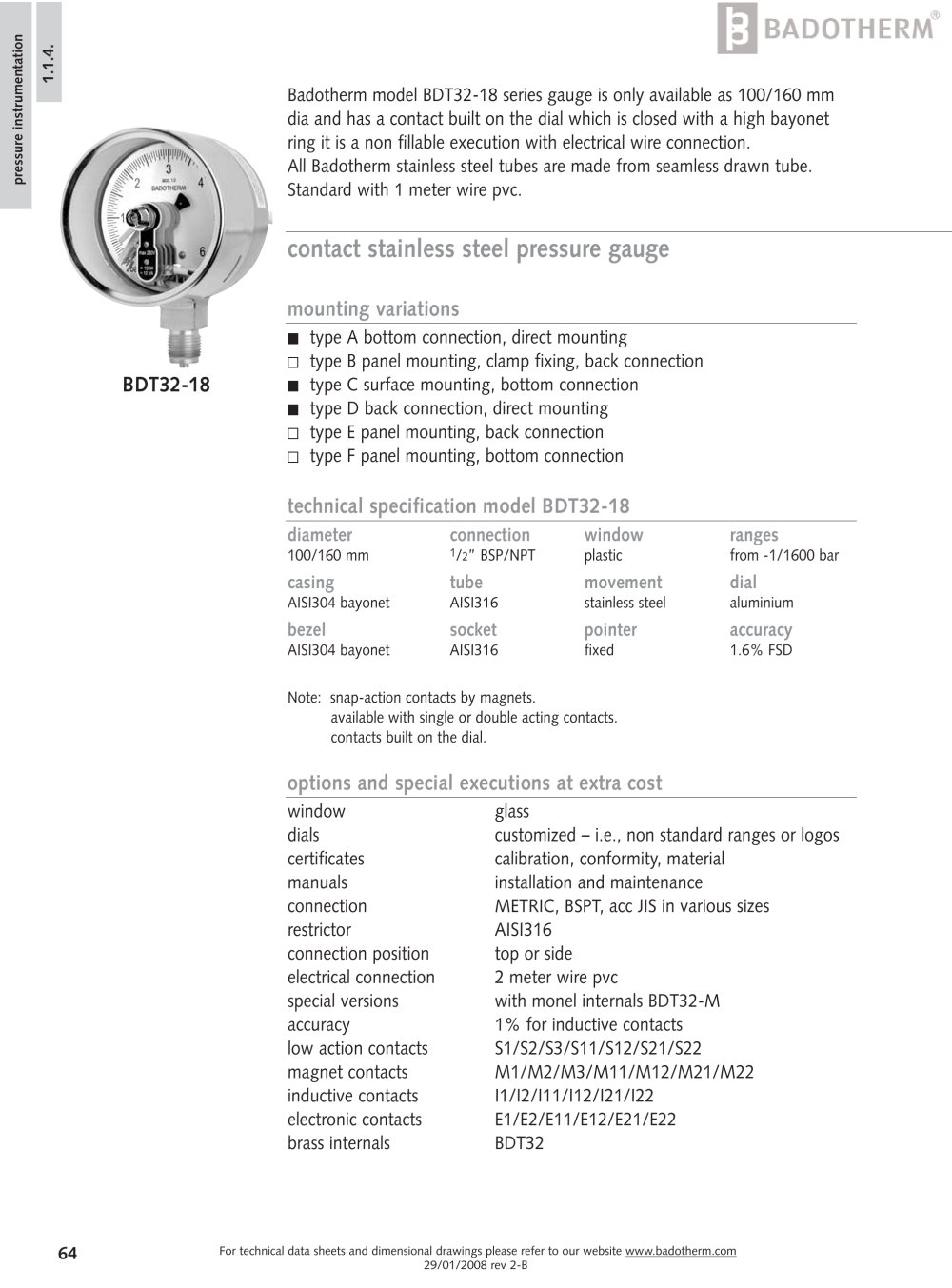

For technical data sheets and dimensional drawings please refer to our website www.badotherm.com 29/01/2008 rev 2-B contact stainless steel pressure gauge Badotherm model BDT32-18 series gauge is only available as 100/160 mm dia and has a contact built on the dial which is closed with a high bayonet ring it is a non fillable execution with electrical wire connection. All Badotherm stainless steel tubes are made from seamless drawn tube. Standard with 1 meter wire pvc. mounting variations type A bottom connection, direct mounting type B panel mounting, clamp fixing, back connection type C surface mounting, bottom connection type D back connection, direct mounting type E panel mounting, back connection type F panel mounting, bottom connection technical specification model BDT32-18 diameter connection window ranges 100/160 mm 1/2” BSP/NPT plastic from -1/1600 bar casing tube movement dial AISI304 bayonet AISI316 stainless steel aluminium bezel socket pointer accuracy AISI304 bayonet AISI316 fixed 1.6% FSD Note: snap-action contacts by magnets. available with single or double acting contacts. contacts built on the dial. options and special executions at extra cost window glass dials customized – i.e., non standard ranges or logos certificates calibration, conformity, material manuals installation and maintenance connection METRIC, BSPT, acc JIS in various sizes restrictor AISI316 connection position top or side electrical connection 2 meter wire pvc special versions with monel internals BDT32-M accuracy 1% for inductive contacts low action contacts S1/S2/S3/S11/S12/S21/S22 magnet contacts M1/M2/M3/M11/M12/M21/M22 inductive contacts I1/I2/I11/I12/I21/I22 electronic contacts E1/E2/E11/E12/E21/E22 brass internals BDT32 64 BDT32-18 1.1.4. pressure instrumentation
