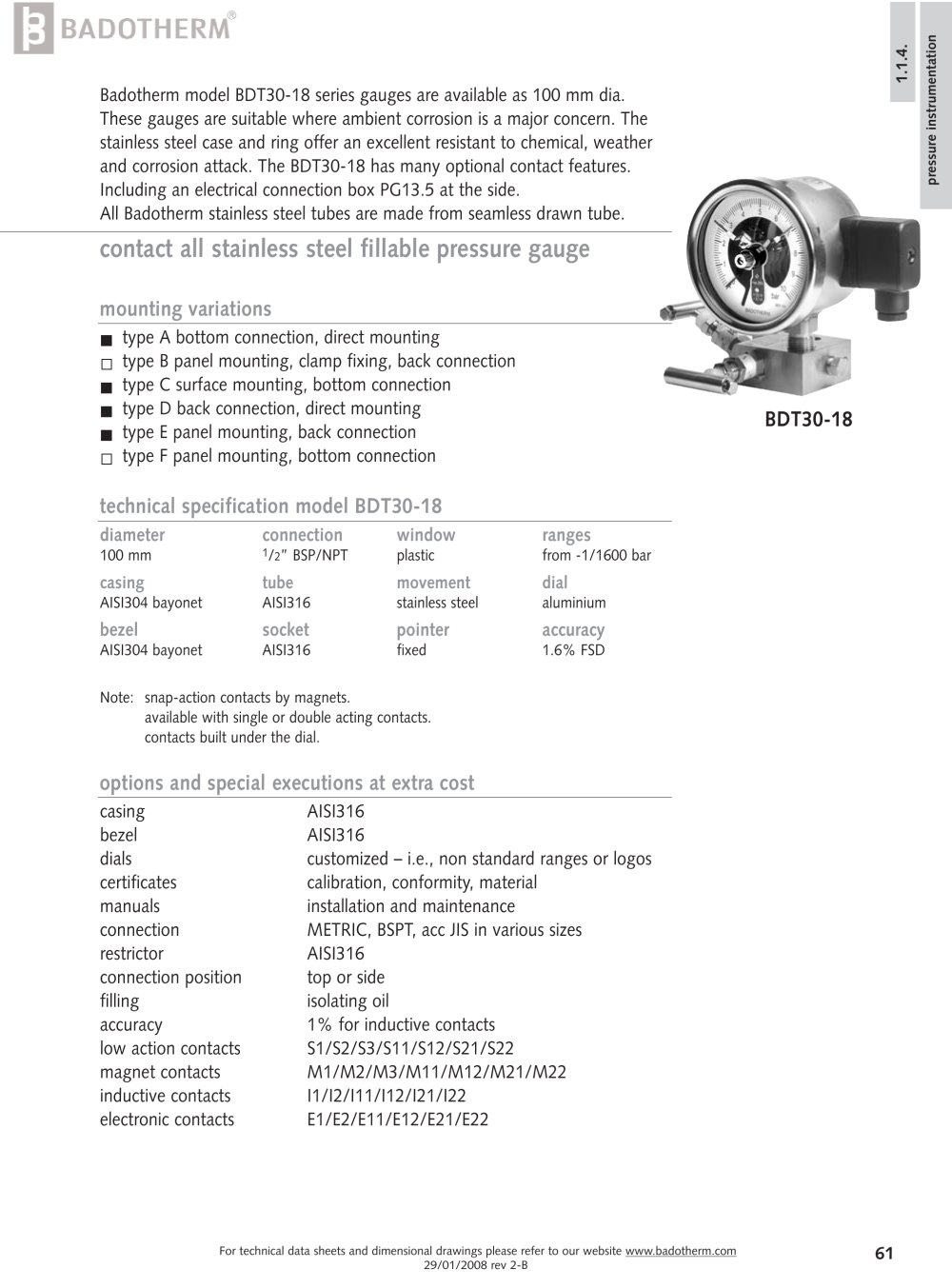

For technical data sheets and dimensional drawings please refer to our website www.badotherm.com 29/01/2008 rev 2-B 61 pressure instrumentation 1.1.4. BDT30-18 contact all stainless steel fillable pressure gauge Badotherm model BDT30-18 series gauges are available as 100 mm dia. These gauges are suitable where ambient corrosion is a major concern. The stainless steel case and ring offer an excellent resistant to chemical, weather and corrosion attack. The BDT30-18 has many optional contact features. Including an electrical connection box PG13.5 at the side. All Badotherm stainless steel tubes are made from seamless drawn tube. mounting variations type A bottom connection, direct mounting type B panel mounting, clamp fixing, back connection type C surface mounting, bottom connection type D back connection, direct mounting type E panel mounting, back connection type F panel mounting, bottom connection technical specification model BDT30-18 diameter connection window ranges 100 mm 1/2” BSP/NPT plastic from -1/1600 bar casing tube movement dial AISI304 bayonet AISI316 stainless steel aluminium bezel socket pointer accuracy AISI304 bayonet AISI316 fixed 1.6% FSD Note: snap-action contacts by magnets. available with single or double acting contacts. contacts built under the dial. options and special executions at extra cost casing AISI316 bezel AISI316 dials customized – i.e., non standard ranges or logos certificates calibration, conformity, material manuals installation and maintenance connection METRIC, BSPT, acc JIS in various sizes restrictor AISI316 connection position top or side filling isolating oil accuracy 1% for inductive contacts low action contacts S1/S2/S3/S11/S12/S21/S22 magnet contacts M1/M2/M3/M11/M12/M21/M22 inductive contacts I1/I2/I11/I12/I21/I22 electronic contacts E1/E2/E11/E12/E21/E22

Open the catalog to page 1

BDT30-18 - All stainless steel fillable contact gauge - 2

BDT30-18 <100 bar AISI316 ..100 bar AISI316 pressure details working pressure pressure element over-pressure temperature details temperature limitations The variation of indication caused by the effects of temperature shall not exceed : ±0,04 x (ambient temperature-reference temperature)% of the span design information ingress protection design IP 65 per EN 60 529 / IEC 529 EN 837-1 drawings BDT30-18 - technical data sheet process 100 ºC 90 ºC ambient -40 ºC to 60 ºC -40 ºC to 60 ºC without filling silicone filling type A type A type D dimensions ns d d1 L H h weight 100 110 100 82 140 122...
