BDT20-P - Overpressure protected stainless steel solid front gauge
2Pages

{{requestButtons}}

Catalog excerpts

BDT20-P - Overpressure protected stainless steel solid front gauge - 1

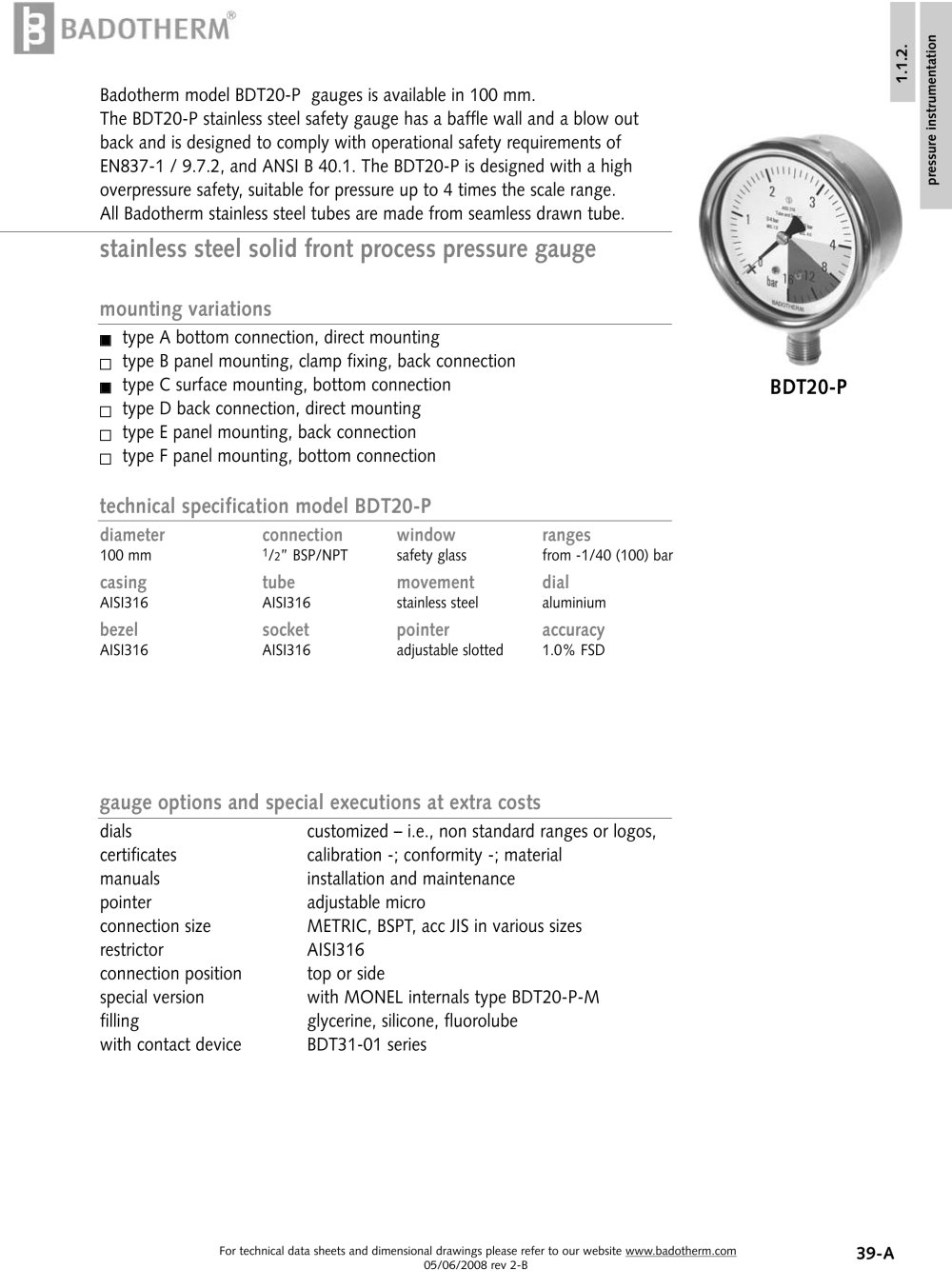

For technical data sheets and dimensional drawings please refer to our website www.badotherm.com 05/06/2008 rev 2-B mounting variations type A bottom connection, direct mounting type B panel mounting, clamp fixing, back connection type C surface mounting, bottom connection type D back connection, direct mounting type E panel mounting, back connection type F panel mounting, bottom connection technical specification model BDT20-P diameter connection window ranges 100 mm 1/2” BSP/NPT safety glass from -1/40 (100) bar casing tube movement dial AISI316 AISI316 stainless steel aluminium bezel socket pointer accuracy AISI316 AISI316 adjustable slotted 1.0% FSD gauge options and special executions at extra costs dials customized – i.e., non standard ranges or logos, certificates calibration -; conformity -; material manuals installation and maintenance pointer adjustable micro connection size METRIC, BSPT, acc JIS in various sizes restrictor AISI316 connection position top or side special version with MONEL internals type BDT20-P-M filling glycerine, silicone, fluorolube with contact device BDT31-01 series 1.1.2. 39-A pressure instrumentation BDT20-P stainless steel solid front process pressure gauge Badotherm model BDT20-P gauges is available in 100 mm. The BDT20-P stainless steel safety gauge has a baffle wall and a blow out back and is designed to comply with operational safety requirements of EN837-1 / 9.7.2, and ANSI B 40.1. The BDT20-P is designed with a high overpressure safety, suitable for pressure up to 4 times the scale range. All Badotherm stainless steel tubes are made from seamless drawn tube.

Open the catalog to page 1
BDT20-P - Overpressure protected stainless steel solid front gauge - 2

BDT20-P - technical data sheet dimensions ns d d1 L H h weight 100 110 100 63 142 100 0,65 kg Note : dimensions are in mm type A type D Ø 100 mm only pressure details working pressure over-pressure pressure element temperature details temperature limitations The variation of indication caused by the effects of temperature shall not exceed : ±0,04 x (ambient temperature-reference temperature)% of the span design information ingress protection design IP 65 per EN 60 529 / IEC 529 EN 837-1 drawings process 200 ºC 60 ºC 90 ºC ambient -40 ºC to 60 ºC -25 ºC to 60 ºC -40 ºC to 60 ºC without...

Open the catalog to page 2
