BDT19 - All stainless steel reduced volume pressure gauge

BDT19 - All stainless steel reduced volume pressure gauge
2Pages

Catalog excerpts

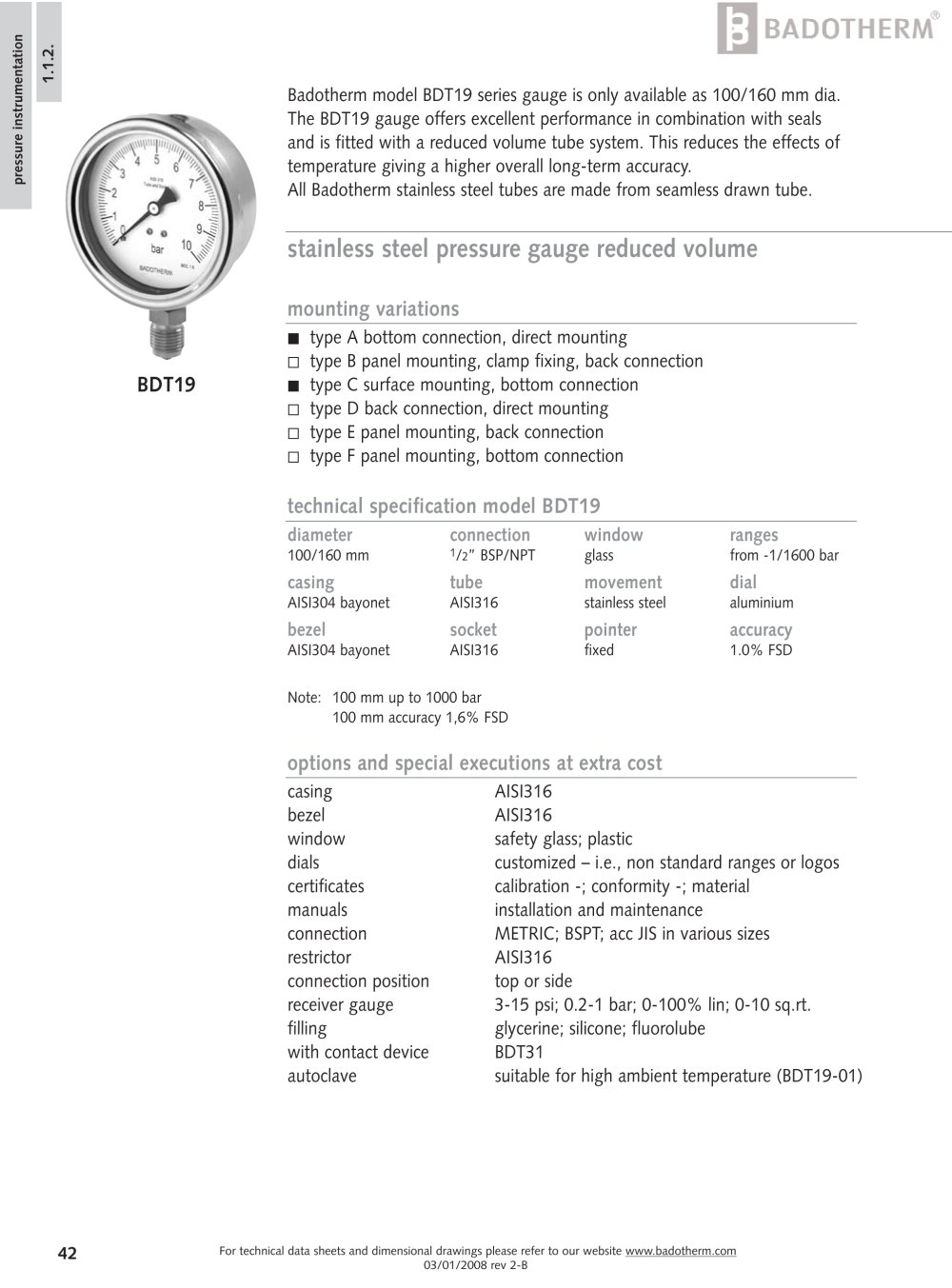

BDT19 - All stainless steel reduced volume pressure gauge - 1

For technical data sheets and dimensional drawings please refer to our website www.badotherm.com 03/01/2008 rev 2-B pressure instrumentation 1.1.2. 42 BDT19 stainless steel pressure gauge reduced volume Badotherm model BDT19 series gauge is only available as 100/160 mm dia. The BDT19 gauge offers excellent performance in combination with seals and is fitted with a reduced volume tube system. This reduces the effects of temperature giving a higher overall long-term accuracy. All Badotherm stainless steel tubes are made from seamless drawn tube. mounting variations type A bottom connection, direct mounting type B panel mounting, clamp fixing, back connection type C surface mounting, bottom connection type D back connection, direct mounting type E panel mounting, back connection type F panel mounting, bottom connection technical specification model BDT19 diameter connection window ranges 100/160 mm 1/2” BSP/NPT glass from -1/1600 bar casing tube movement dial AISI304 bayonet AISI316 stainless steel aluminium bezel socket pointer accuracy AISI304 bayonet AISI316 fixed 1.0% FSD Note: 100 mm up to 1000 bar 100 mm accuracy 1,6% FSD options and special executions at extra cost casing AISI316 bezel AISI316 window safety glass; plastic dials customized – i.e., non standard ranges or logos certificates calibration -; conformity -; material manuals installation and maintenance connection METRIC; BSPT; acc JIS in various sizes restrictor AISI316 connection position top or side receiver gauge 3-15 psi; 0.2-1 bar; 0-100% lin; 0-10 sq.rt. filling glycerine; silicone; fluorolube with contact device BDT31 autoclave suitable for high ambient temperature (BDT19-01)

Open the catalog to page 1

BDT19 - All stainless steel reduced volume pressure gauge - 2

pressure details working pressure pressure element over-pressure temperature details temperature limitations The variation of indication caused by the effects of temperature shall not exceed : ±0,04 x (ambient temperature-reference temperature)% of the span design information ingress protection design IP 65 per EN 60 529 / IEC 529 EN 837-1 drawings BDT19 - technical data sheet process 200 ºC 60 ºC 90 ºC ambient -40 ºC to 60 ºC -25 ºC to 60 ºC -40 ºC to 60 ºC without filling glycerine filling silicone filling dimensions ns d d1 L H h weight Note : BDT19-01 up to 120ºC ambient temperature...
