BDT18 - All stainless steel pressure gauge

BDT18 - All stainless steel pressure gauge
2Pages

Catalog excerpts

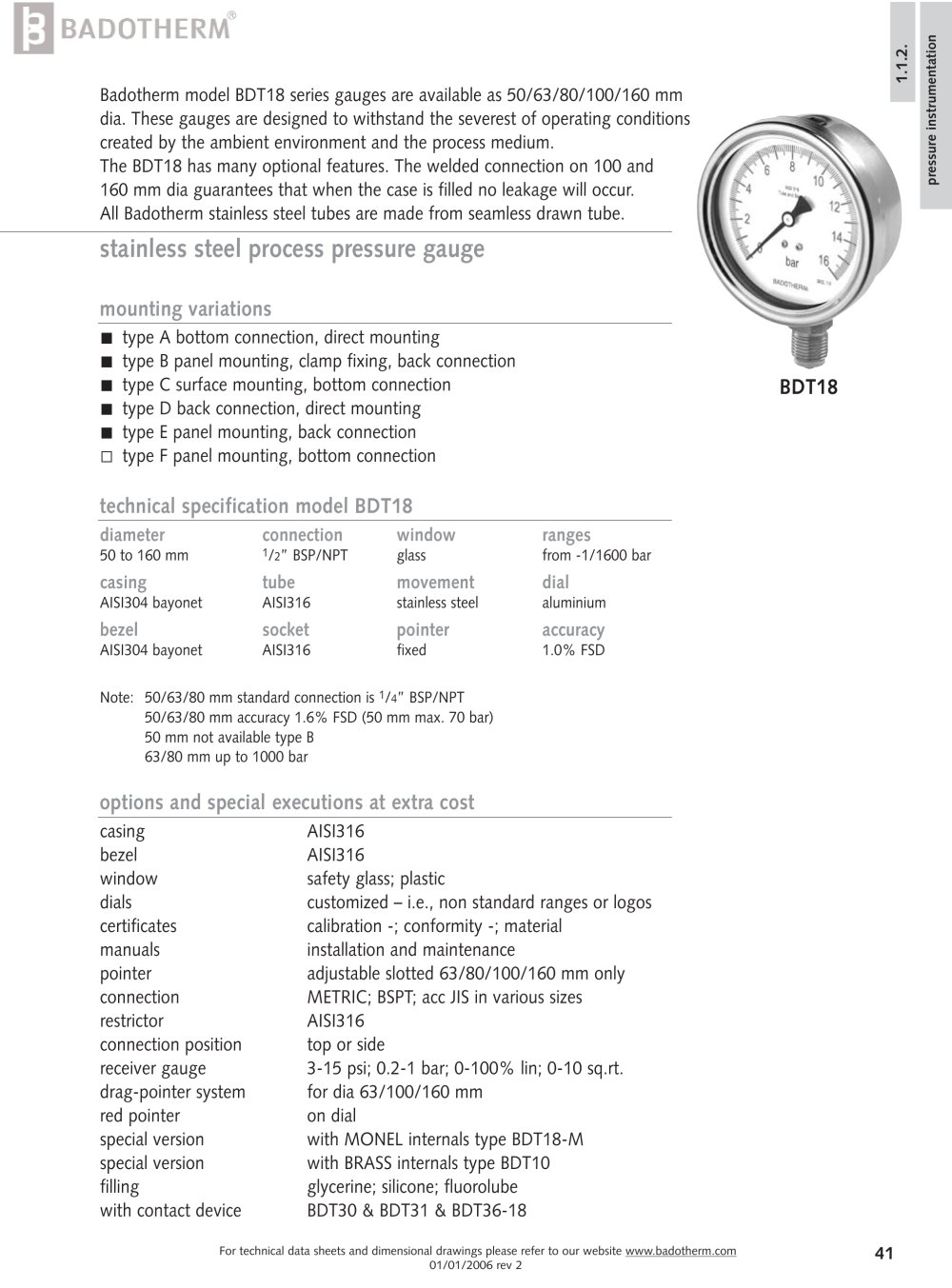

BDT18 - All stainless steel pressure gauge - 1

For technical data sheets and dimensional drawings please refer to our website www.badotherm.com 01/01/2006 rev 2 1.1.2. 41 pressure instrumentation BDT18 stainless steel process pressure gauge Badotherm model BDT18 series gauges are available as 50/63/80/100/160 mm dia. These gauges are designed to withstand the severest of operating conditions created by the ambient environment and the process medium. The BDT18 has many optional features. The welded connection on 100 and 160 mm dia guarantees that when the case is filled no leakage will occur. All Badotherm stainless steel tubes are made from seamless drawn tube. mounting variations type A bottom connection, direct mounting type B panel mounting, clamp fixing, back connection type C surface mounting, bottom connection type D back connection, direct mounting type E panel mounting, back connection type F panel mounting, bottom connection technical specification model BDT18 diameter connection window ranges 50 to 160 mm 1/2” BSP/NPT glass from -1/1600 bar casing tube movement dial AISI304 bayonet AISI316 stainless steel aluminium bezel socket pointer accuracy AISI304 bayonet AISI316 fixed 1.0% FSD Note: 50/63/80 mm standard connection is 1/4” BSP/NPT 50/63/80 mm accuracy 1.6% FSD (50 mm max. 70 bar) 50 mm not available type B 63/80 mm up to 1000 bar options and special executions at extra cost casing AISI316 bezel AISI316 window safety glass; plastic dials customized – i.e., non standard ranges or logos certificates calibration -; conformity -; material manuals installation and maintenance pointer adjustable slotted 63/80/100/160 mm only connection METRIC; BSPT; acc JIS in various sizes restrictor AISI316 connection position top or side receiver gauge 3-15 psi; 0.2-1 bar; 0-100% lin; 0-10 sq.rt. drag-pointer system for dia 63/100/160 mm red pointer on dial special version with MONEL internals type BDT18-M special version with BRASS internals type BDT10 filling glycerine; silicone; fluorolube with contact device BDT30 & BDT31 & BDT36-18

Open the catalog to page 1

BDT18 - All stainless steel pressure gauge - 2

type A pressure details working pressure pressure element over-pressure temperature details temperature limitations The variation of indication caused by the effects of temperature shall not exceed : ±0,04 x (ambient temperature-reference temperature)% of the span design information ingress protection design IP 65 per EN 60 529 / IEC 529 EN 837-1 drawings BDT18 - technical data sheet process 200 ºC 60 ºC 90 ºC ambient -40 ºC to 60 ºC -25 ºC to 60 ºC -40 ºC to 60 ºC without filling glycerine filling silicone filling type D Ø 50 mm dimensions ns d d1 L H h weight 50 56 51 30 75 52 0,10 kg 63...
