BDT17-08 - Test pressure gauge 0.25%

BDT17-08 - Test pressure gauge 0.25%
2Pages

Catalog excerpts

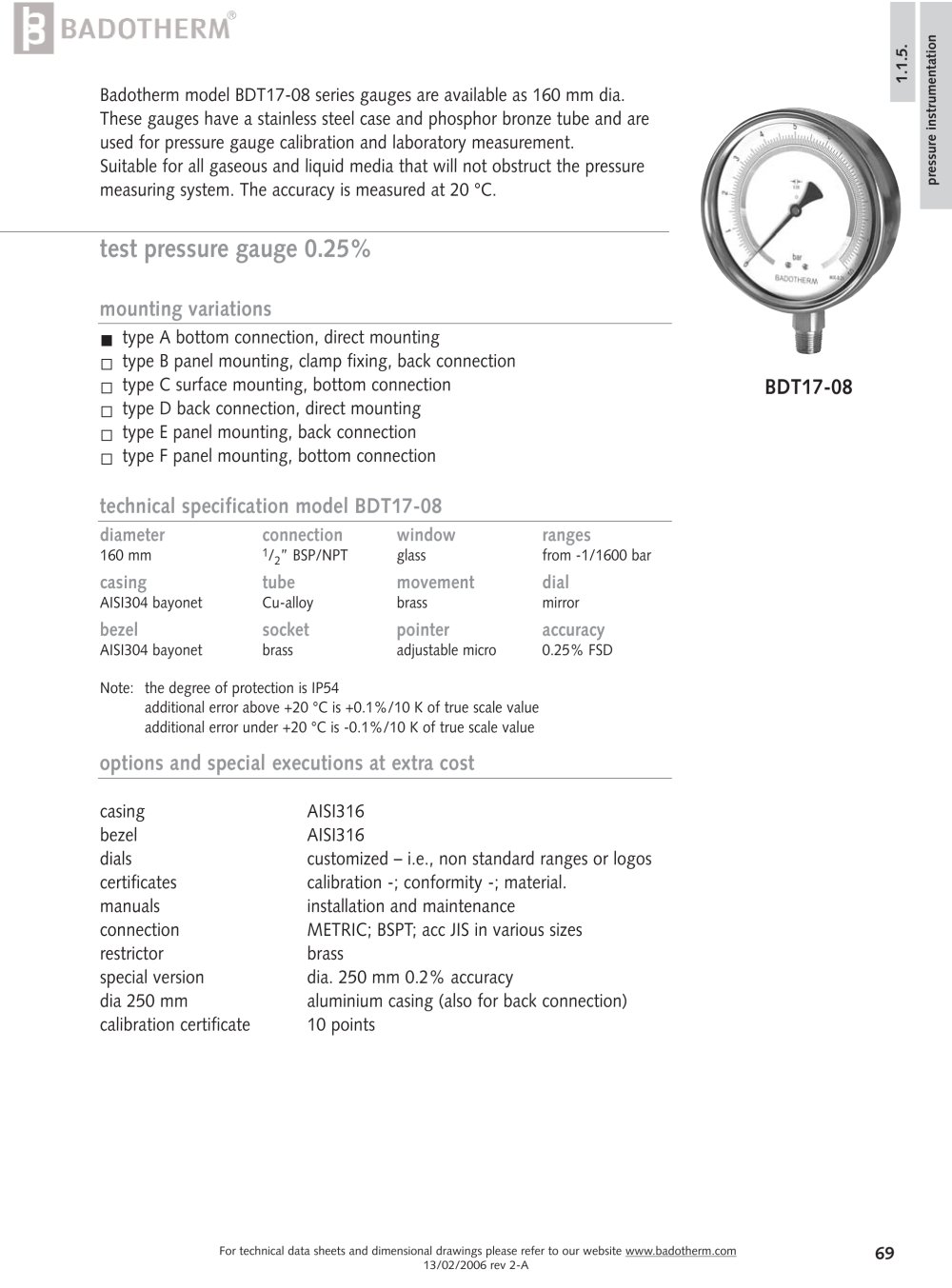

BDT17-08 - Test pressure gauge 0.25% - 1

For technical data sheets and dimensional drawings please refer to our website www.badotherm.com 13/02/2006 rev 2-A 69 pressure instrumentation BDT17-08 test pressure gauge 0.25% Badotherm model BDT17-08 series gauges are available as 160 mm dia. These gauges have a stainless steel case and phosphor bronze tube and are used for pressure gauge calibration and laboratory measurement. Suitable for all gaseous and liquid media that will not obstruct the pressure measuring system. The accuracy is measured at 20 °C. mounting variations type A bottom connection, direct mounting type B panel mounting, clamp fixing, back connection type C surface mounting, bottom connection type D back connection, direct mounting type E panel mounting, back connection type F panel mounting, bottom connection technical specification model BDT17-08 diameter connection window ranges 160 mm 1/2” BSP/NPT glass from -1/1600 bar casing tube movement dial AISI304 bayonet Cu-alloy brass mirror bezel socket pointer accuracy AISI304 bayonet brass adjustable micro 0.25% FSD Note: the degree of protection is IP54 additional error above +20 °C is +0.1%/10 K of true scale value additional error under +20 °C is -0.1%/10 K of true scale value options and special executions at extra cost casing AISI316 bezel AISI316 dials customized – i.e., non standard ranges or logos certificates calibration -; conformity -; material. manuals installation and maintenance connection METRIC; BSPT; acc JIS in various sizes restrictor brass special version dia. 250 mm 0.2% accuracy dia 250 mm aluminium casing (also for back connection) calibration certificate 10 points 1.1.5.

Open the catalog to page 1

BDT17-08 - Test pressure gauge 0.25% - 2

pressure details working pressure pressure element temperature details temperature limitations design information ingress protection design IP 54 per EN 60 529 / IEC 529 EN 837-1 drawings BDT17-08 - technical data sheet process 65 ºC ambient standard -40 ºC to 60 ºC type A type A dimensions ns d d1 L H h weight 160 160 149 50 200 - 1,10 kg Note : dimensions are in mm Steady Fluctuating 3/4 x full scale value 2/3 x full scale value BDT17-08 100 bar Copper alloy >100 bar Copper alloy
