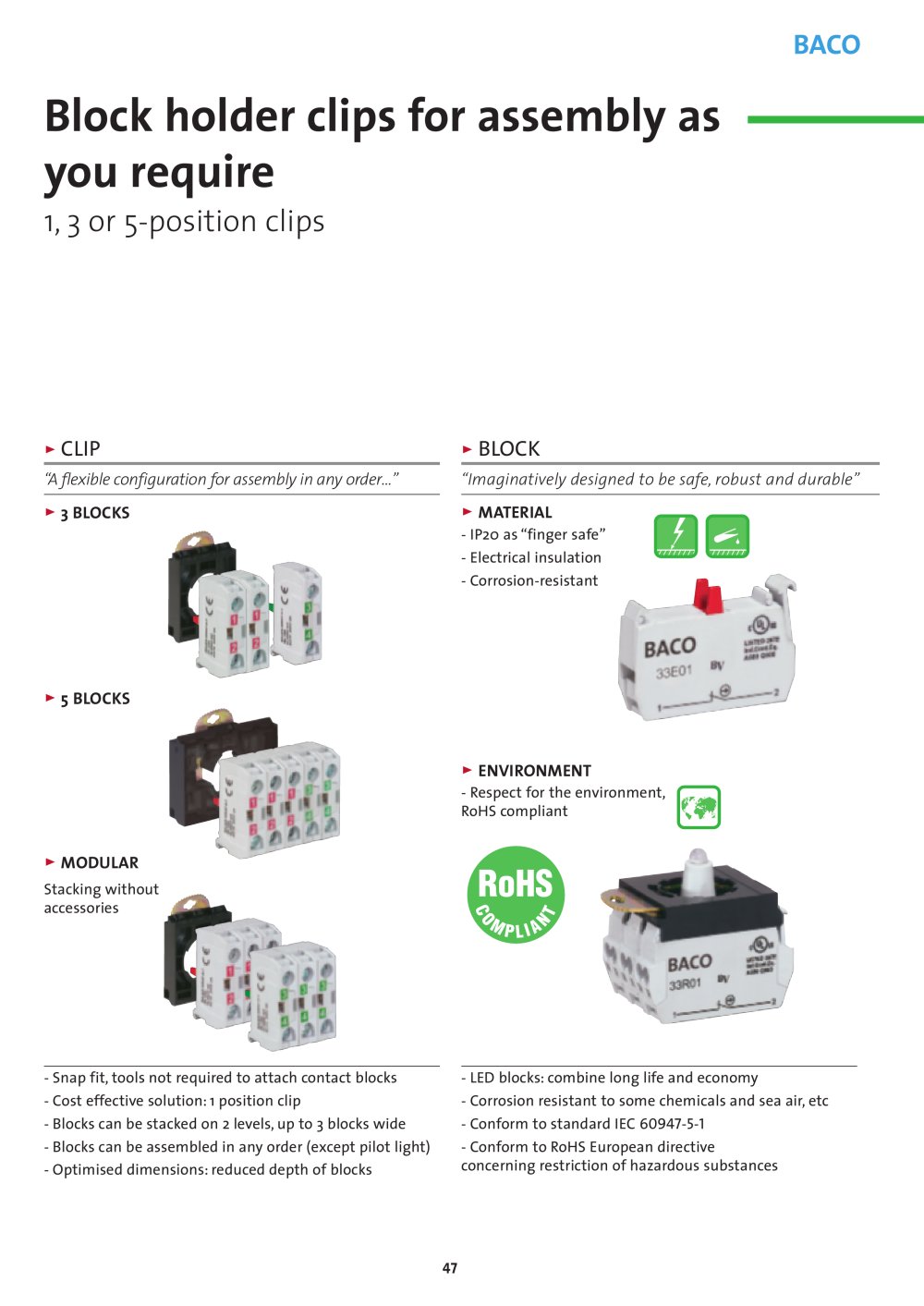

BACO_001-016_GB.pdf table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Lucida Sans Unicode", sans-serif; } .font1 { font:9.00pt "Lucida Sans Unicode", sans-serif; } .font2 { font:11.00pt "Lucida Sans Unicode", sans-serif; } .font3 { font:12.00pt "Lucida Sans Unicode", sans-serif; } .font4 { font:14.00pt "Lucida Sans Unicode", sans-serif; } .font5 { font:15.00pt "Lucida Sans Unicode", sans-serif; } .font6 { font:16.00pt "Lucida Sans Unicode", sans-serif; } .font7 { font:27.00pt "Lucida Sans Unicode", sans-serif; } BACO Block holder clips for assembly as you require 1,3 or 5-position clips ► CLIP ► BLOCK "A flexible configuration for assembly in any order..." "Imaginatively designed to be safe, robust and durable" 3 blocks ► material IP20 as "finger safe" ■ Electrical insulation ■ Corrosion-resistant ► 5 blocks ► environment - Respect for the environment, RoHS compliant ► modular Stacking without accessories Snap fit, tools not required to attach contact blocks Cost effective solution: 1 position clip Blocks can be stacked on 2 levels, up to 3 blocks wide Blocks can be assembled in any order (except pilot light) Optimised dimensions: reduced depth of blocks - LED blocks: combine long life and economy - Corrosion resistant to some chemicals and sea air, etc - Conform to standard EN IEC 60947-5-1 - Conform to RoHS European directive concerning restriction of hazardous substances 47
