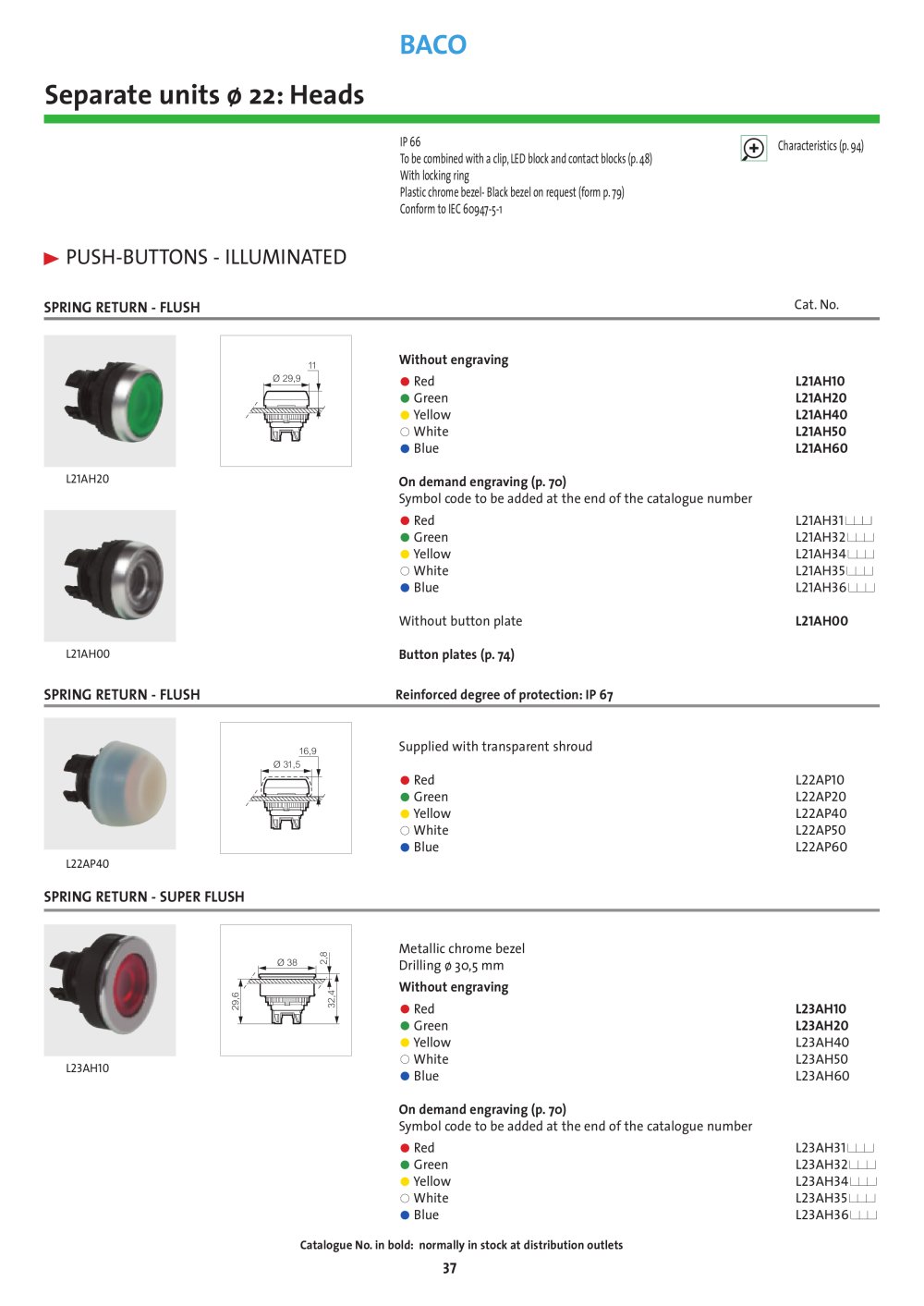

BACO_001-016_GB.pdf table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:45.00pt "Impact", sans-serif; } .font1 { font:5.30pt "Lucida Sans Unicode", sans-serif; } .font2 { font:5.95pt "Lucida Sans Unicode", sans-serif; } .font3 { font:7.00pt "Lucida Sans Unicode", sans-serif; } .font4 { font:8.00pt "Lucida Sans Unicode", sans-serif; } .font5 { font:9.00pt "Lucida Sans Unicode", sans-serif; } .font6 { font:11.00pt "Lucida Sans Unicode", sans-serif; } .font7 { font:15.00pt "Lucida Sans Unicode", sans-serif; } .font8 { font:16.00pt "Lucida Sans Unicode", sans-serif; } BACO Separate units 0 22: Heads ip66 To be combined with a clip, LED block and contact blocks (p.48) With locking ring Plastic chrome bezel- Black bezel on request (form p. 79) Conformto IEC 60947-5-1 Characteristics (p. 94) Cross reference list (p. 311) PUSH-BUTTONS - ILLUMINATED SPRING RETURN - FLUSH Cat. No. Without engraving • Red • Green • Yellow OWhite • Blue On demand engraving (p. 79) Symbol code to be added at the end of the catalogue number • Red • Green • Yellow OWhite • Blue Without button plate Button plates (p. 74) L21AH10 L21AH20 L21AH40 L21AH50 L21AH60 L21AH20 L21AH31 L21AH32 L21AH34 L21AH35 L21AH36 L21AH00 €0 L21AH00 SPRING RETURN - FLUSH Reinforced degree of protection: IP 67 Supplied with transparent shroud • Red • Green • Yellow OWhite • Blue L22AP10 L22AP20 L22AP40 L22AP50 L22AP60 L22AP40 SPRING RETURN - SUPER FLUSH Metallic chrome bezel Drilling 0 30 mm Without engraving • Red • Green • Yellow OWhite • Blue On demand engraving (p. 79) Symbol code to be added at the end of the catalogue number • Red • Green • Yellow OWhite • Blue L23AH10 L23AH20 L23AH40 L23AH50 L23AH60 L23AH10 L23AH31 L23AH32 L23AH34 L23AH35 L23AH36 Catalogue No. in bold: normally in stock at distribution outlets 37
