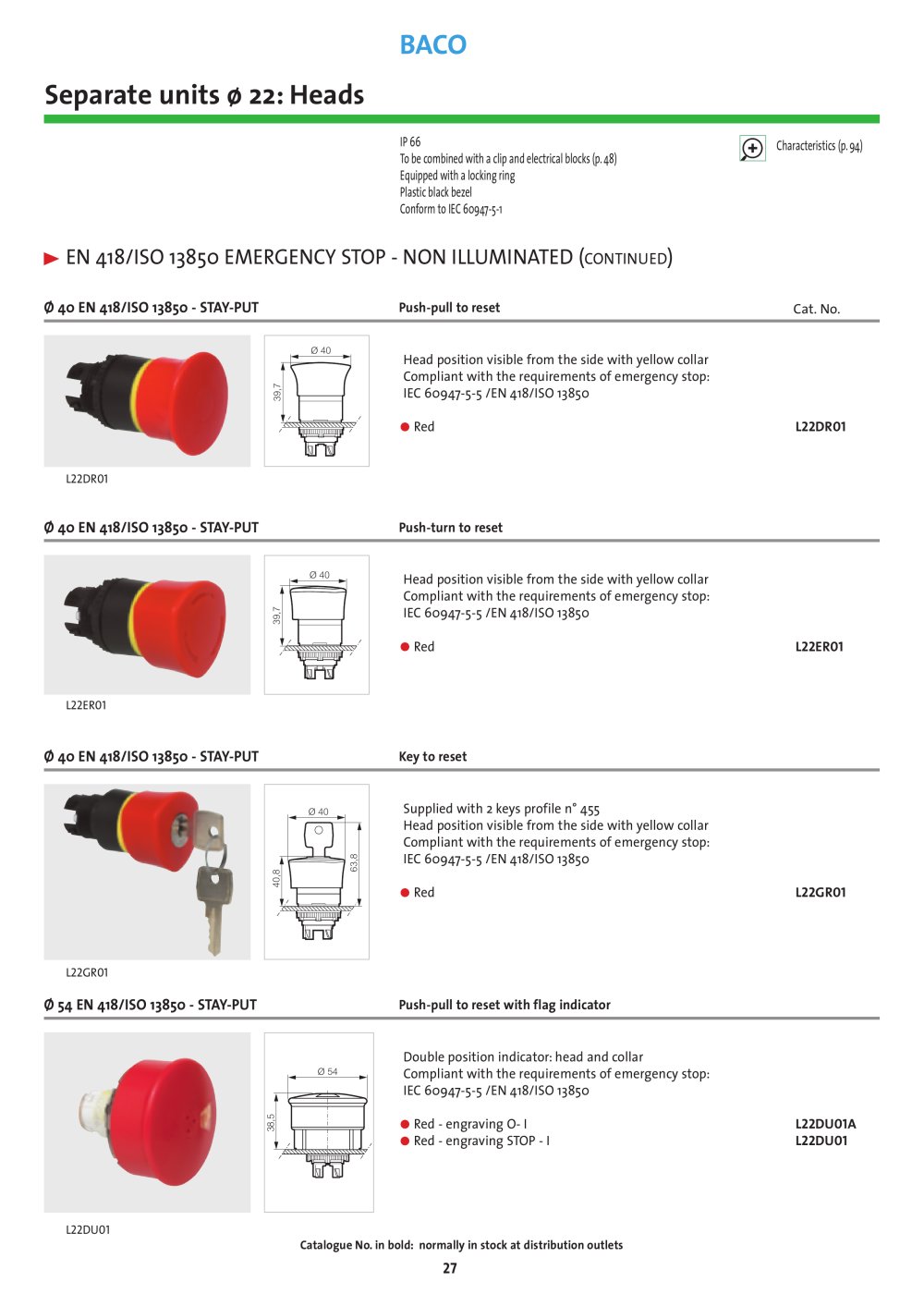

BACO_001-016_GB.pdf table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Georgia", serif; } .font1 { font:5.00pt "Lucida Sans Unicode", sans-serif; } .font2 { font:5.30pt "Lucida Sans Unicode", sans-serif; } .font3 { font:5.95pt "Lucida Sans Unicode", sans-serif; } .font4 { font:7.00pt "Lucida Sans Unicode", sans-serif; } .font5 { font:8.00pt "Lucida Sans Unicode", sans-serif; } .font6 { font:9.00pt "Lucida Sans Unicode", sans-serif; } .font7 { font:10.00pt "Lucida Sans Unicode", sans-serif; } .font8 { font:11.00pt "Lucida Sans Unicode", sans-serif; } .font9 { font:14.00pt "Lucida Sans Unicode", sans-serif; } .font10 { font:16.00pt "Lucida Sans Unicode", sans-serif; } BACO Separate units 0 22: Heads ip66 To be combined with a clip and electrical blocks (p. 48) Equipped with a locking ring Plastic black bezel Conformto IEC 60947-5-1 (+) Characteristics (p. 94) Cross reference list (p. 311) en 418/iso 13850 emergency stop - non illuminated (continued) 0 40 en 418/iso 13850 - stay-put Push-pull toreset Cat. No. Head position visible from the side with yellow collar Compliant with the requirements of emergency stop: IEC 60947-5-5 /EN 418/ISO 13850 l22dr01 0 40 en 418/iso 13850 - stay-put Push-turn to reset Head position visible from the side with yellow collar Compliant with the requirements of emergency stop: IEC 60947-5-5 /EN 418/ISO 13850 Red l22er01 l22er01 0 40 en 418/iso 13850 - stay-put Key to reset Supplied with 2 keys profile n° 455 Head position visible from the side with yellow collar Compliant with the requirements of emergency stop: IEC 60947-5-5 /EN 418/ISO 13850 Red l22gr01 l22gr01 0 54 en 418/iso 13850 - stay-put Push-pull to reset with flag indicator 0 54 Double position indicator: head and collar Compliant with the requirements of emergency stop: IEC 60947-5-5 /EN 418/ISO 13850 • Red - engraving O- I • Red - engraving STOP - I l22du01a l22du01 l22du01 Catalogue No. in bold: normally in stock at distribution outlets 27
