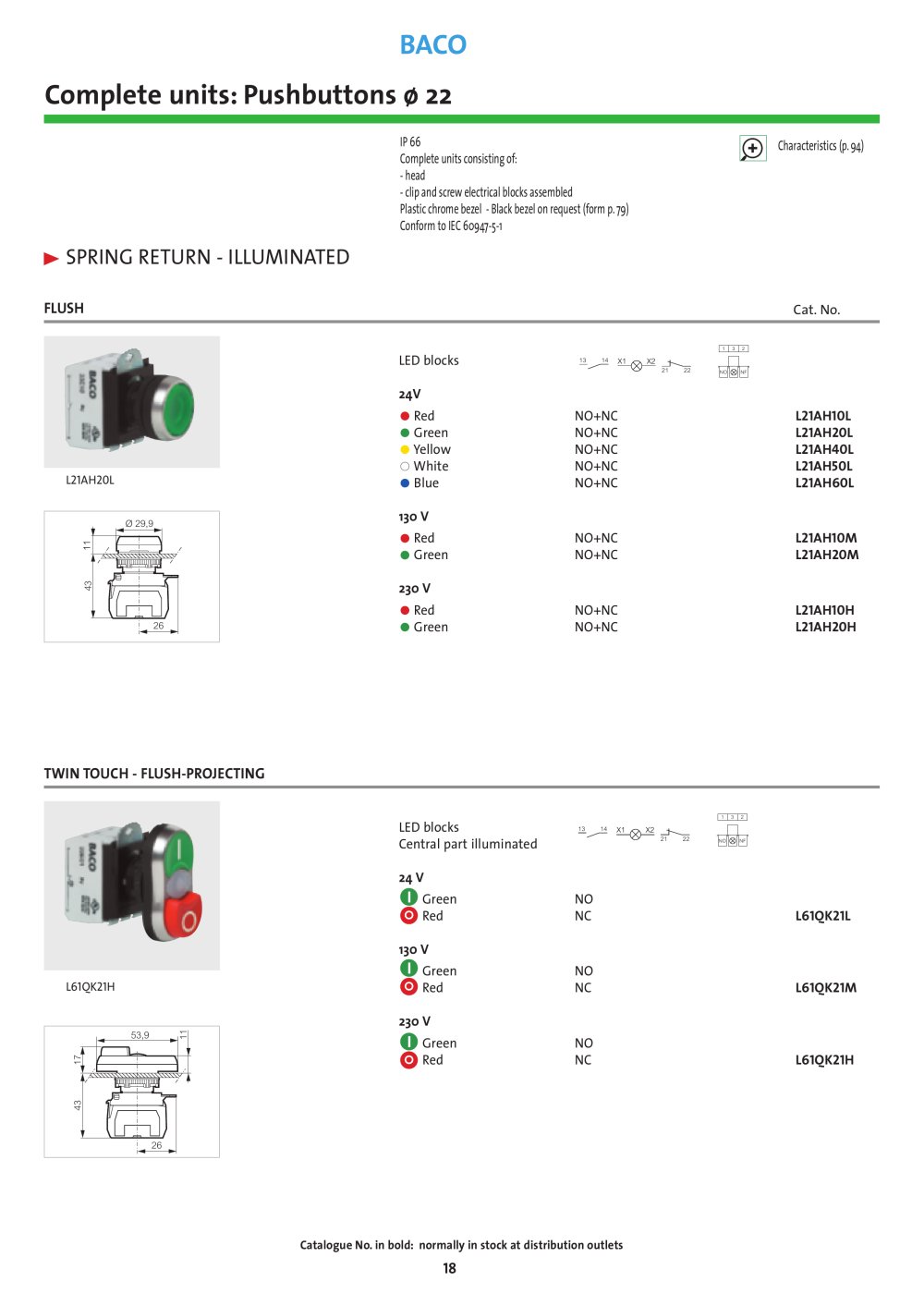

BACO_001-016_GB.pdf table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.30pt "Lucida Sans Unicode", sans-serif; } .font1 { font:7.00pt "Lucida Sans Unicode", sans-serif; } .font2 { font:8.00pt "Lucida Sans Unicode", sans-serif; } .font3 { font:11.00pt "Lucida Sans Unicode", sans-serif; } .font4 { font:16.00pt "Lucida Sans Unicode", sans-serif; } BACO Complète units: Pushbuttons 0 22 IP66 (+) Characteristics (p. 94) Complète units consisting of: Cross reference list(p 311) - head - clip andscrew electrical blocks assembled Plastic chrome bezel - Black bezel on request (form p. 79) Conformto IEC 60947-5-1 SPRING RETURN - ILLUMINATED FLUSH Cat. No. LED blocks 24V • Red NO+NC L21AH10L • Green NO+NC L21AH20L • Yellow NO+NC L21AH40L OWhite NO+NC L21AH50L • Blue NO+NC L21AH60L 130 V • Red NO+NC L21AH10M • Green NO+NC L21AH20M 230 V • Red NO+NC L21AH10H • Green NO+NC L21AH20H l21ah20l TWIN TOUCH - FLUSH-PROJECTING LED blocks Central part illuminated 24 V O Green NO 0 Red NC 130 V O Green NO O Red NC 230 V O Green NO Q Red NC L61QK21L l61qk21h L61QK21M L61QK21H Catalogue No. in bold: normally in stock at distribution outlets 18
