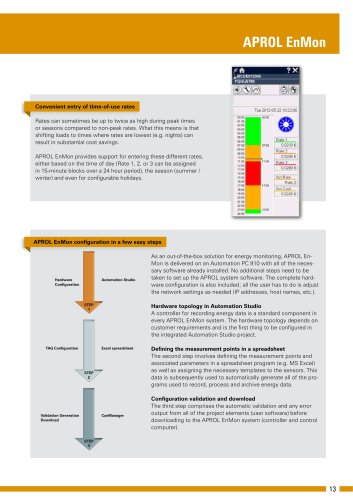

Convenient entry of time-of-use rates
Rates can sometimes be up to twice as high during peak times
or seasons compared to non-peak rates. What this means is that
shifting loads to times where rates are lowest (e.g. nights) can
result in substantial cost savings.
APROL EnMon provides support for entering these different rates,
either based on the time of day (Rate 1, 2, or 3 can be assigned
in 15-minute blocks over a 24 hour period), the season (summer /
winter) and even for configurable holidays.
APROL EnMon configuration in a few easy steps
Hardware
Configuration
Automation Studio
STEP
1
TAG Configuration
Hardware topology in Automation Studio
A controller for recording energy data is a standard component in
every APROL EnMon system. The hardware topology depends on
customer requirements and is the first thing to be configured in
the integrated Automation Studio project.
Excel spreadsheet
STEP
2
CaeManager
Validation Generation
Download
As an out-of-the-box solution for energy monitoring, APROL EnMon is delivered on an Automation PC 910 with all of the necessary software already installed. No additional steps need to be
taken to set up the APROL system software. The complete hardware configuration is also included; all the user has to do is adjust
the network settings as needed (IP addresses, host names, etc.).
Defining the measurement points in a spreadsheet
The second step involves defining the measurement points and
associated parameters in a spreadsheet program (e.g. MS Excel)
as well as assigning the necessary templates to the sensors. This
data is subsequently used to automatically generate all of the programs used to record, process and archive energy data.
Configuration validation and download
The third step comprises the automatic validation and any error
output from all of the project elements (user software) before
downloading to the APROL EnMon system (controller and control
computer).
STEP
3
