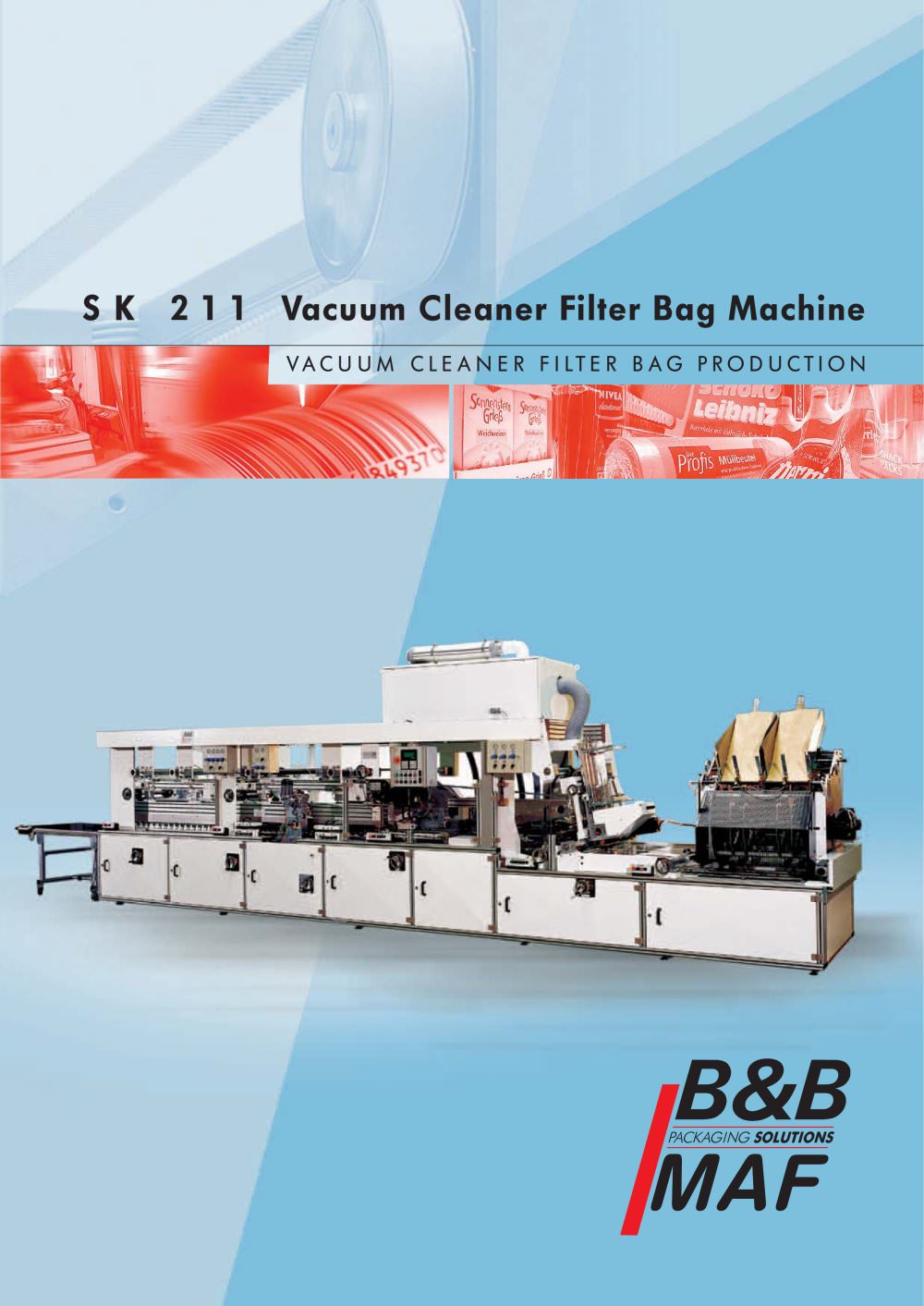

Vacuum Cleaner Filter Bag Machine - B&B - MAF GmbH & Co. KG - #1

Text version of the page

20 Machine frame with transport system 30 Aligment cam belt 40 Vacuum belt – bag transport 50 Pressing belts 60 Vacuum belt – cardboard feeding 70 Transport double fold 80 Transport and pressing belt double fold 90 Cardboard transport and pressing belt 1 100 Cardboard transport and pressing belt 2 200 Rotary double bag feeder 210 Cardboard magazine – adjustable 220 Cardboard glue unit 230 Scoring unit 240 First folding unit – double fold 250 Glue unit double fold 260 Second folding unit – double fold 300 Delivery belt with counter 500 Electronic control with control panel B&B-MAF GmbH & Co. KG Kupferstraße 18 D-48496 Hopsten Tel. +49 54 58/793-0 · Fax +49 54 58/793-50 info@bub-maf.de www.bub-maf.de
