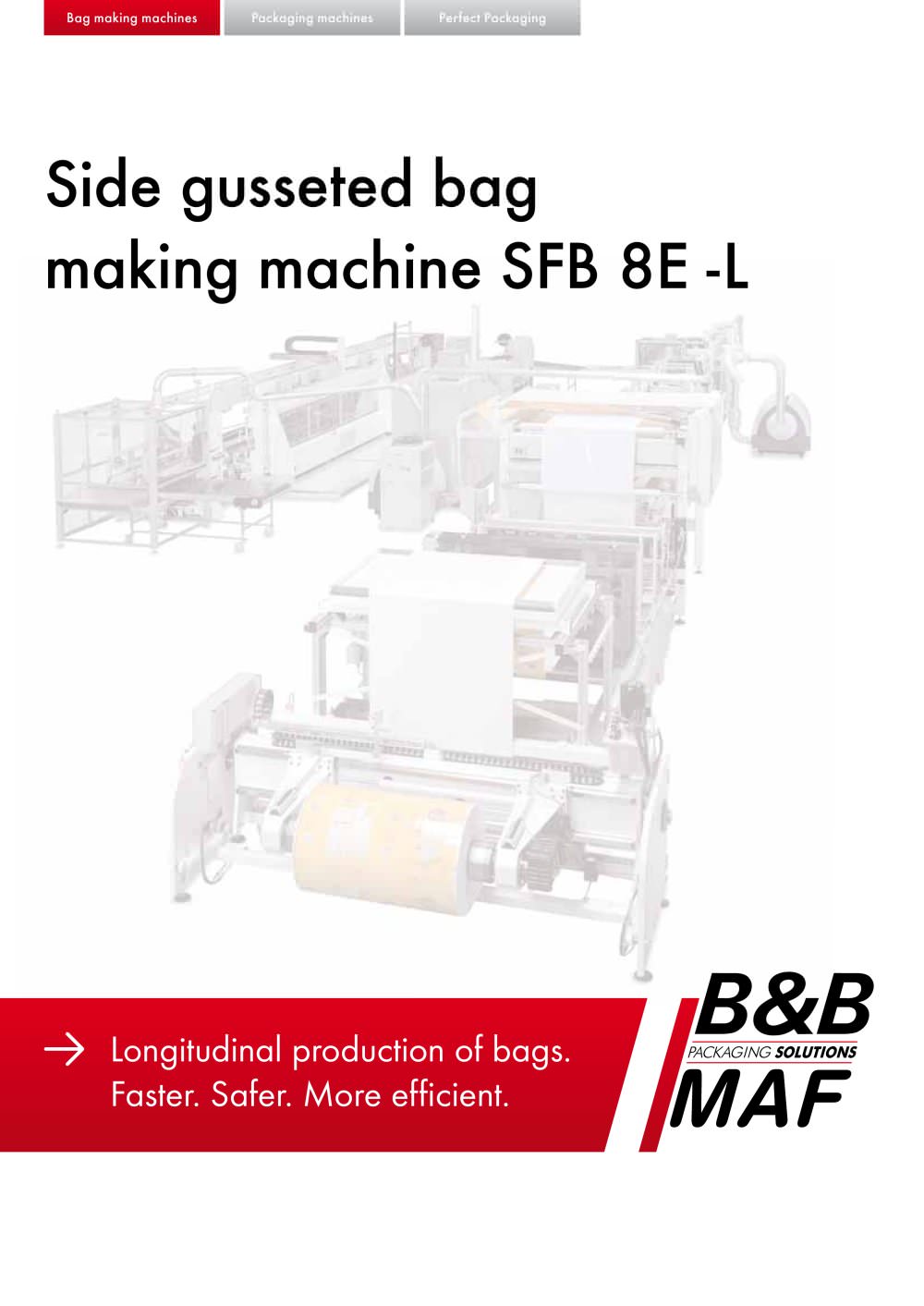

SFB 8 E-L Side Gusset Bag Machine - B&B - MAF GmbH & Co. KG - #1

Text version of the page

S F B 8 E-L Bottom Seal Side Gusset Bag Machine F L E X I B L E F I L M BAG P ROD U C T ION B&B-MAF GmbH & Co. KG Kupferstraße 18 D-48496 Hopsten Tel. +49 54 58/793-0 · Fax +49 54 58/793-50 info@bub-maf.de www.bub-maf.de LÖ K G H S AAP U ZW =Q (( § " Bag Processing from one Roll in Direction of Machine Flow 1 Side Gusseted Bag Making Machine 2 Shaftless Unwind 3 Base Frame Element 1600 mm 4 Dancer 5 Edge Guidance Control 1600 mm 6 Hole Die Cutting for Bottom Area Sealing 7 Digital Draw with Print Mark Control 8 “Zipper“/Slider-Applicator 9 Longitudinal Cutter 10 SFB Folding 1600 mm 11 SFB Folding 900 mm 12 Base Frame 800 mm x 14000 mm 13 Web Draw with Dancer 14 Double Digital Draw with Print Mark Control and Register 15 Beam Lift Unit 16 Longitudinal Seam Sealing 17 Longitudinal Seam Cooling 18 Digital Draw with Dancer Accumulator 19 Beam Lift Unit 50 20 Corner (Mitred) Sealing 21 Transversal Seam and “Zipper“ Sealing 22 Transversal Seam Cooling 23 Longitudinal Cutter 24 Side Trimmings Disposal System 25 Double Digital Draw With Print Mark Control 26 Transversal Cutter 27 Vacuum Belt with Shred Disposal 28 Bottom Folding with Hotmelt-Spot Glueing 29 Delivery-Vacuum Belt Stacking 30 Stacker Cassette with 90° Delivery Belt System 35 Eccentric Die Cutter “Easy Opening” 50 Electr. Control With Operator Control Panel
