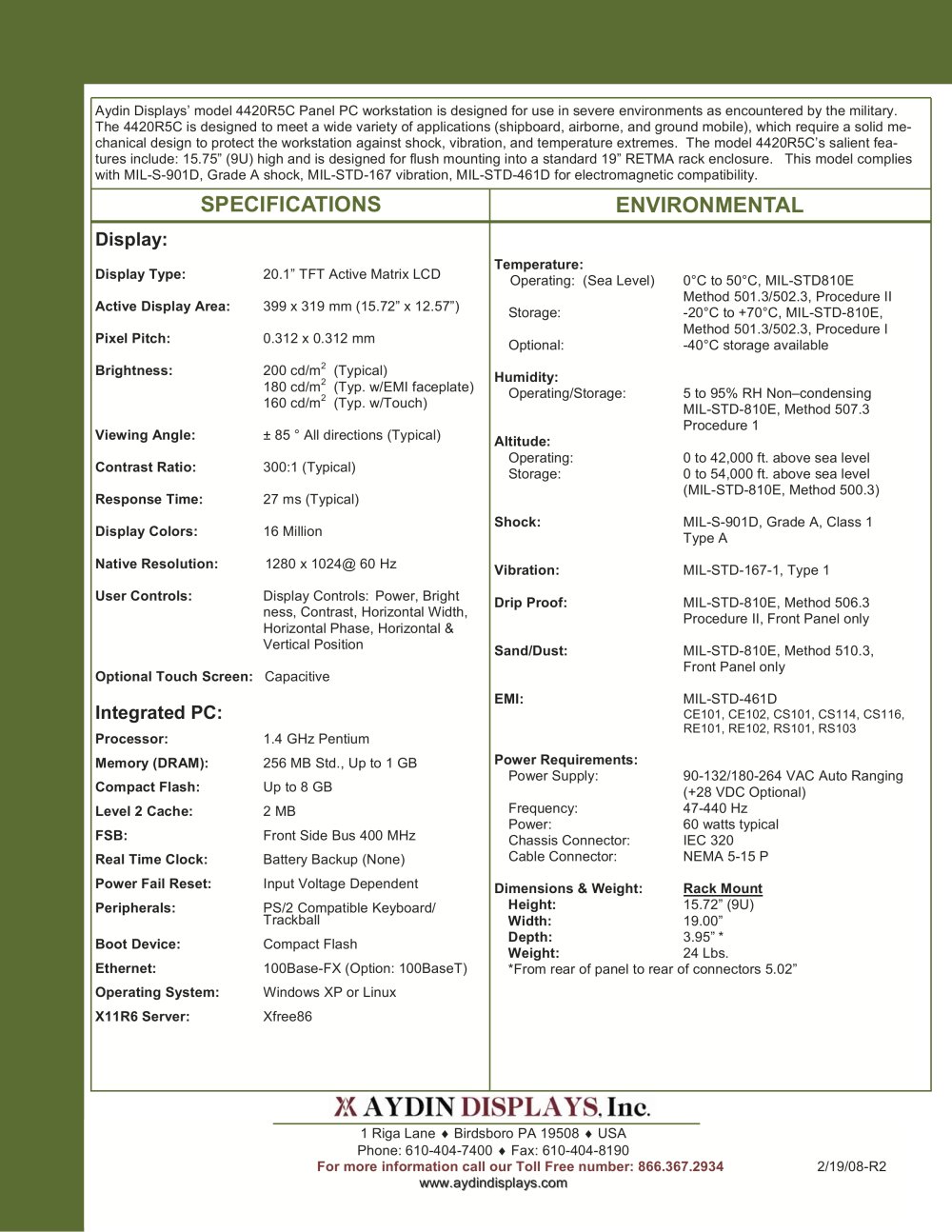

Aydin Displays’ model 4420R5C Panel PC workstation is designed for use in severe environments as encountered by the military. The 4420R5C is designed to meet a wide variety of applications (shipboard, airborne, and ground mobile), which require a solid me-chanical design to protect the workstation against shock, vibration, and temperature extremes. The model 4420R5C’s salient fea-tures include: 15.75” (9U) high and is designed for flush mounting into a standard 19” RETMA rack enclosure. This model complies with MIL-S-901D, Grade A shock, MIL-STD-167 vibration, MIL-STD-461D for electromagnetic compatibility.

Specifically Designed for Severe Environments - 13597 SPECIFICATIONS ENVIRONMENTAL

Display:

Display Type: 20.1” TFT Active Matrix LCD Temperature: Operating: (Sea Level) 0°C to 50°C, MIL-STD810E Method 501.3/502.3, Procedure II Storage: -20°C to +70°C, MIL-STD-810E, Method 501.3/502.3, Procedure I Optional: -40°C storage available Active Display Area: 399 x 319 mm (15.72” x 12.57”) Pixel Pitch: 0.312 x 0.312 mm Brightness: 200 cd/m
2 2 (Typical) 180 cd/m
2 (Typ. w/EMI faceplate) 160 cd/m Humidity: (Typ. w/Touch) Operating/Storage: 5 to 95% RH Non–condensing MIL-STD-810E, Method 507.3 Procedure 1 Viewing Angle: ± 85 ° All directions (Typical) Altitude: Contrast Ratio: 300:1 (Typical) Operating: 0 to 42,000 ft. above sea level Storage: 0 to 54,000 ft. above sea level (MIL-STD-810E, Method 500.3) Response Time: 27 ms (Typical) Display Colors: 16 Million Shock: MIL-S-901D, Grade A, Class 1 Type A Native Resolution: 1280 x 1024@ 60 Hz Vibration: MIL-STD-167-1, Type 1 User Controls: Display Controls: Power, Brightness, Contrast, Horizontal Width, Horizontal Phase, Horizontal & Vertical Position Drip Proof: MIL-STD-810E, Method 506.3 Procedure II, Front Panel only Sand/Dust: MIL-STD-810E, Method 510.3, Front Panel only Optional Touch Screen: Capacitive EMI: MIL-STD-461D
