CAMBRIDGE SERIES

S

PECIFICALLY

D

ESIGNED

S

OLUTIONS FOR

A

LL

I

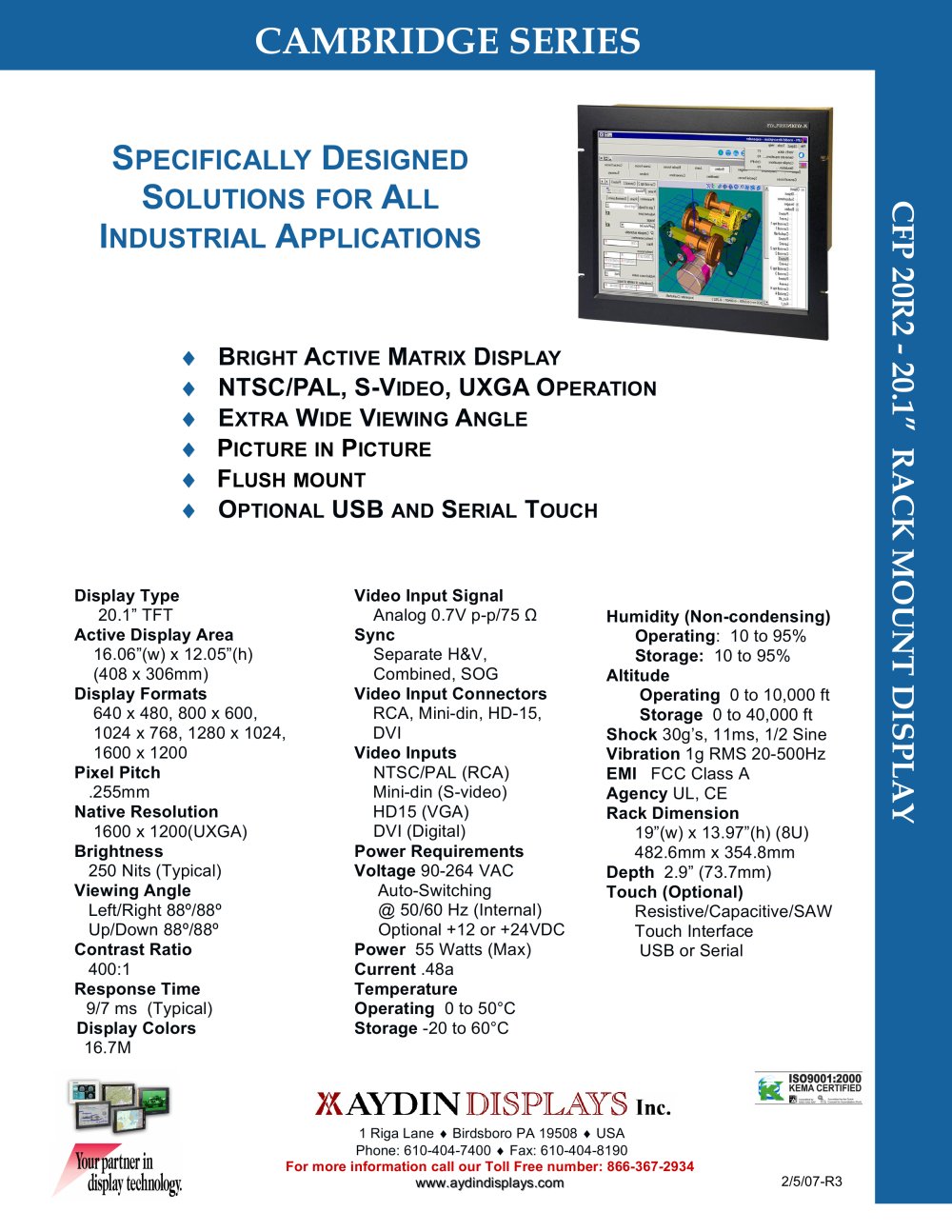

CFP 20R2 - 20.1” RACK MOUNT DISPLAY

NDUSTRIAL

A

PPLICATIONS

B

RIGHT

A

CTIVE

M

ATRIX

D

ISPLAY

NTSC/PAL, S-V

IDEO

, UXGA O

PERATION

E

XTRA

W

IDE

V

IEWING

A

NGLE

P

ICTURE IN

P

ICTURE

F

LUSH MOUNT

O

PTIONAL

USB

AND

S

ERIAL

T

OUCH

Display Type Video Input Signal Analog 0.7V p-p/75 20.1” TFT Sync Humidity (Non-condensing) Operating Active Display Area Separate H&V, Combined, SOG : 10 to 95% 16.06”(w) x 12.05”(h) (408 x 306mm) Storage: 10 to 95% Video Input Connectors Altitude Operating Display Formats RCA, Mini-din, HD-15, DVI 0 to 10,000 ft 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200 Storage 0 to 40,000 ft Pixel Pitch Video Inputs Shock 30g’s, 11ms, 1/2 Sine .255mm NTSC/PAL (RCA) Mini-din (S-video) HD15 (VGA) DVI (Digital) Vibration 1g RMS 20-500Hz Native Resolution EMI FCC Class A 1600 x 1200(UXGA) Agency UL, CE Brightness Rack Dimension 250 Nits (Typical) Power Requirements Voltage 19”(w) x 13.97”(h) (8U) Viewing Angle 90-264 VAC Auto-Switching 482.6mm x 354.8mm Depth Left/Right 88º/88º Up/Down 88º/88º 2.9” (73.7mm) Touch (Optional) @ 50/60 Hz (Internal) Optional +12 or +24VDC Contrast Ratio Resistive/Capacitive/SAW 400:1 Power 55 Watts (Max) Touch Interface USB or Serial Response Time Current .48a 9/7 ms (Typical) Temperature Operating Display Colors 0 to 50°C 16.7M Storage -20 to 60°C
1 Riga Lane Birdsboro PA 19508 USA Phone: 610-404-7400 Fax: 610-404-8190 For more information call our Toll Free number: 866-367-2934 www.aydindisplays.comwww.aydindisplays.com 2/5/07-R3
