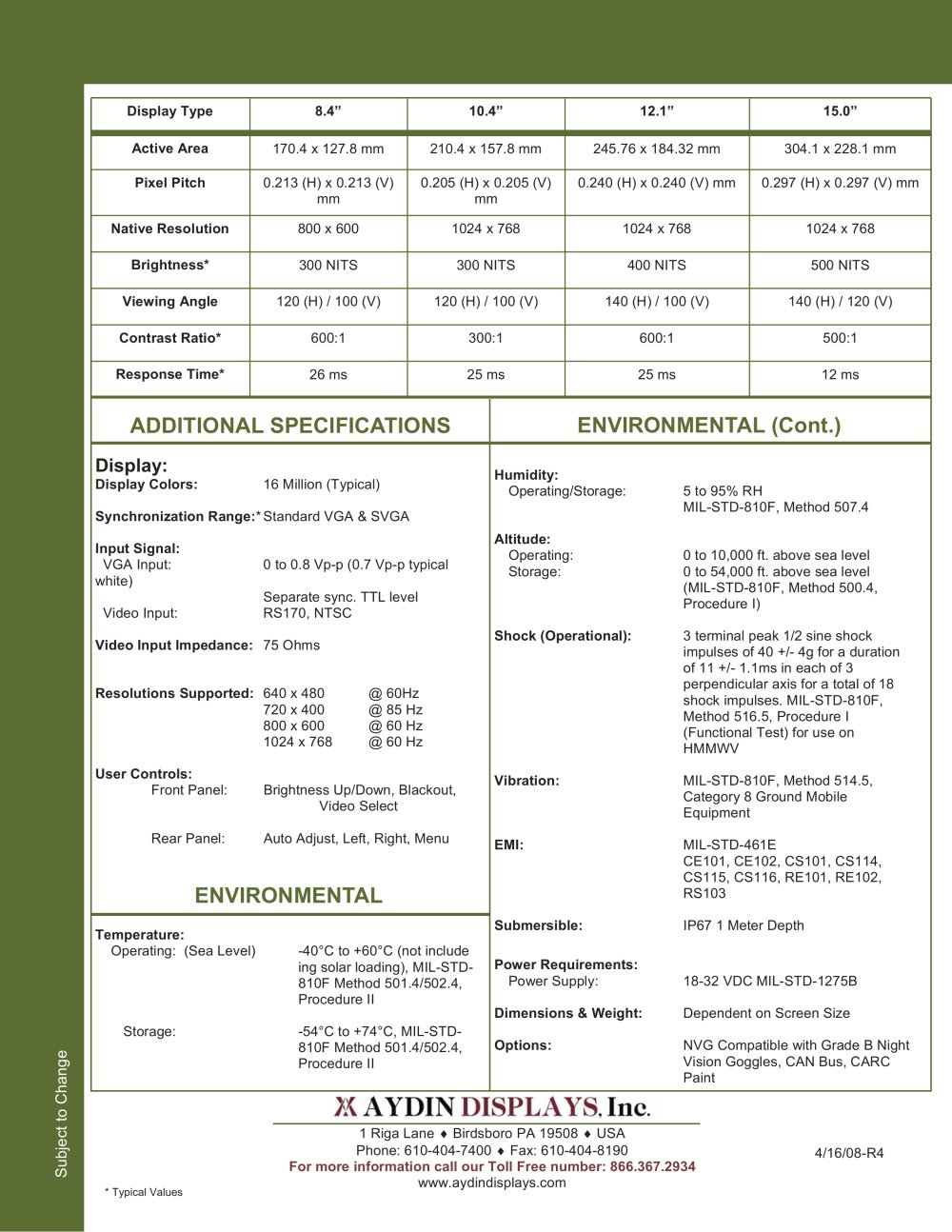

Display Type 8.4”10.4”12.1”15.0”Active Area 170.4 x 127.8 mm 210.4 x 157.8 mm 245.76 x 184.32 mm304.1 x 228.1 mm Pixel Pitch 0.213 (H) x 0.213 (V) mm0.205 (H) x 0.205 (V) mm0.240 (H) x 0.240 (V) mm 0.297 (H) x 0.297 (V) mm Native Resolution 800 x 600 1024 x 768 1024 x 768 1024 x 768 Brightness* 300 NITS300 NITS 400 NITS 500 NITS Viewing Angle 120 (H) / 100 (V) 120 (H) / 100 (V) 140 (H) / 100 (V) 140 (H) / 120 (V) Contrast Ratio* 600:1300:1600:1500:1 Response Time* 26 ms 25 ms 25 ms 12 ms

Rugged Monitor, Military Ground Mobile Display - 13597 ADDITIONAL SPECIFICATIONS ENVIRONMENTAL (Cont.)

Display:

Display Colors: 16 Million (Typical) Humidity: Operating/Storage: 5 to 95% RH MIL-STD-810F, Method 507.4 Synchronization Range: * Standard VGA & SVGA Input Signal: Altitude: VGA Input: 0 to 0.8 Vp-p (0.7 Vp-p typical white) Separate sync. TTL level Video Input: RS170, NTSC Operating: 0 to 10,000 ft. above sea level Storage: 0 to 54,000 ft. above sea level (MIL-STD-810F, Method 500.4, Procedure I) Video Input Impedance: 75 Ohms Shock (Operational): 3 terminal peak 1/2 sine shock impulses of 40 +/- 4g for a duration of 11 +/- 1.1ms in each of 3 perpendicular axis for a total of 18 shock impulses. MIL-STD-810F, Method 516.5, Procedure I (Functional Test) for use on HMMWV Resolutions Supported: 640 x 480 @ 60Hz 720 x 400 @ 85 Hz 800 x 600 @ 60 Hz 1024 x 768 @ 60 Hz User Controls: Front Panel: Brightness Up/Down, Blackout, Video Select Rear Panel: Auto Adjust, Left, Right, Menu Vibration: MIL-STD-810F, Method 514.5, Category 8 Ground Mobile Equipment EMI: MIL-STD-461E CE101, CE102, CS101, CS114, CS115, CS116, RE101, RE102, RS103 Temperature: Operating: (Sea Level) -40°C to +60°C (not include ing solar loading), MIL-STD- 810F Method 501.4/502.4, Procedure II Storage: -54°C to +74°C, MIL-STD- 810F Method 501.4/502.4, Procedure II

ENVIRONMENTAL

Submersible: IP67 1 Meter Depth Power Requirements: Power Supply: 18-32 VDC MIL-STD-1275B Dimensions & Weight: Dependent on Screen Size Options: NVG Compatible with Grade B Night Vision Goggles, CAN Bus, CARC Paint 1 Riga Lane Birdsboro PA 19508 USAPhone: 610-404-7400 Fax: 610-404-8190 4/16/08-R4
Subject to Change For more information call our Toll Free number: 866.367.2934 www.aydindisplays.com
* Typical Values
