VECTOR SERIES

1U D

ISPLAY

D

ESIGNED

F

OR ALL

I

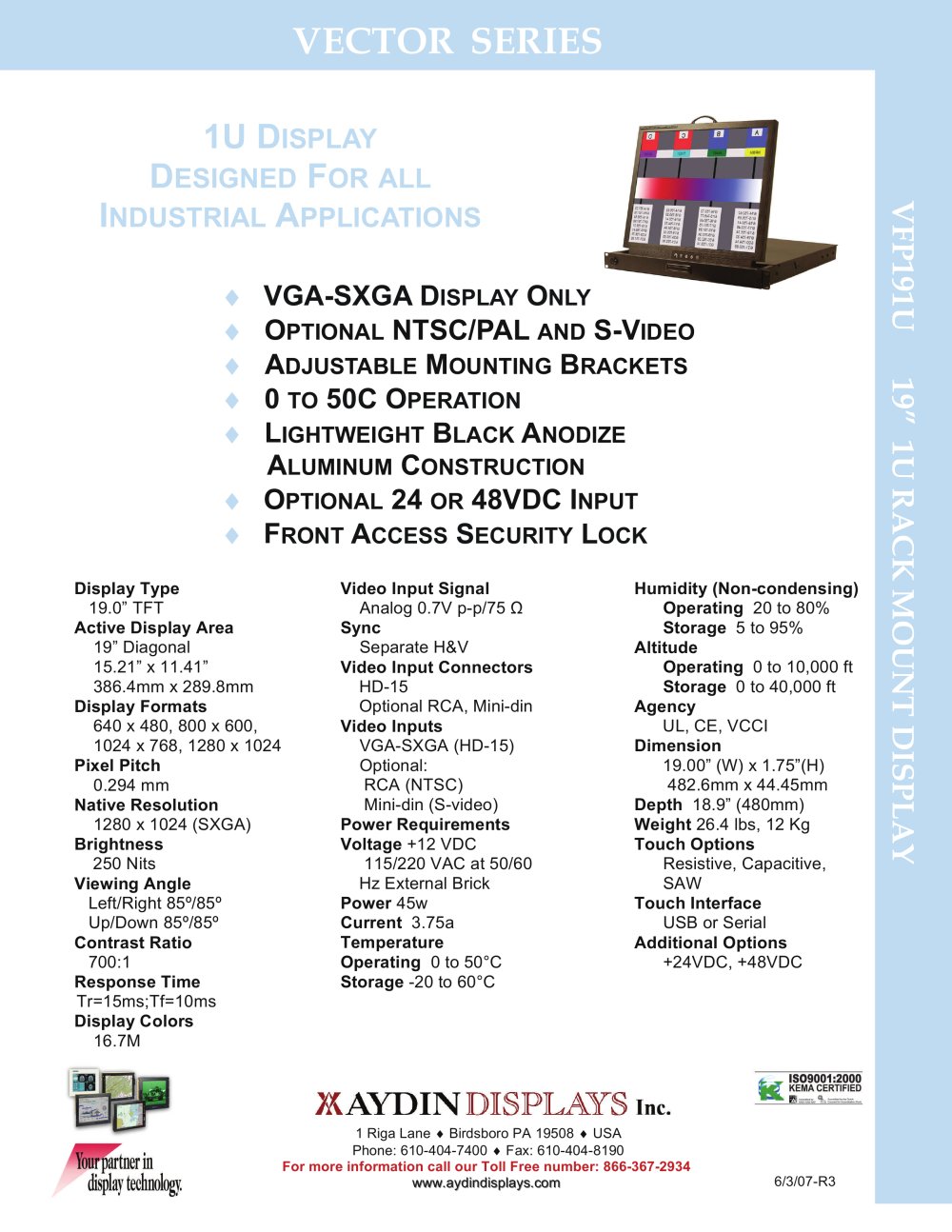

VFP191U 19” 1U RACK MOUNT DISPLAY

NDUSTRIAL

A

PPLICATIONS

VGA-SXGA D

ISPLAY

O

NLY

O

PTIONAL

NTSC/PAL

AND

S-V

IDEO

A

DJUSTABLE

M

OUNTING

B

RACKETS

TO

50C O

PERATION

L

IGHTWEIGHT

B

LACK

A

NODIZE

A

LUMINUM

C

ONSTRUCTION

O

PTIONAL

24

OR

48VDC I

NPUT

F

RONT

A

CCESS

S

ECURITY

L

OCK

Display Type Video Input Signal Humidity (Non-condensing) Operating 19.0” TFT Analog 0.7V p-p/75 20 to 80% Active Display Area Sync Storage 5 to 95% 19” Diagonal 15.21” x 11.41” 386.4mm x 289.8mm Separate H&V Altitude Operating Display Formats Video Input Connectors 0 to 10,000 ft Storage 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024 HD-15 Optional RCA, Mini-din 0 to 40,000 ft Agency Pixel Pitch Video Inputs UL, CE, VCCI 0.294 mm VGA-SXGA (HD-15) Optional: RCA (NTSC) Mini-din (S-video) Dimension Native Resolution 19.00” (W) x 1.75”(H) 1280 x 1024 (SXGA) Power Requirements Voltage 482.6mm x 44.45mm Brightness +12 VDC 115/220 VAC at 50/60 Hz External Brick Depth 18.9” (480mm) 250 Nits Weight 26.4 lbs, 12 Kg Touch Options Viewing Angle Left/Right 85º/85º Up/Down 85º/85º Power 45w Current Resistive, Capacitive, SAW 3.75a Contrast Ratio Temperature Operating Touch Interface 700:1 0 to 50°C USB or Serial Response Time Storage -20 to 60°C Additional Options Tr=15ms;Tf=10ms +24VDC, +48VDC Display Colors 16.7M
1 Riga Lane Birdsboro PA 19508 USA Phone: 610-404-7400 Fax: 610-404-8190 For more information call our Toll Free number: 866-367-2934 www.aydindisplays.comwww.aydindisplays.com 6/3/07-R3
