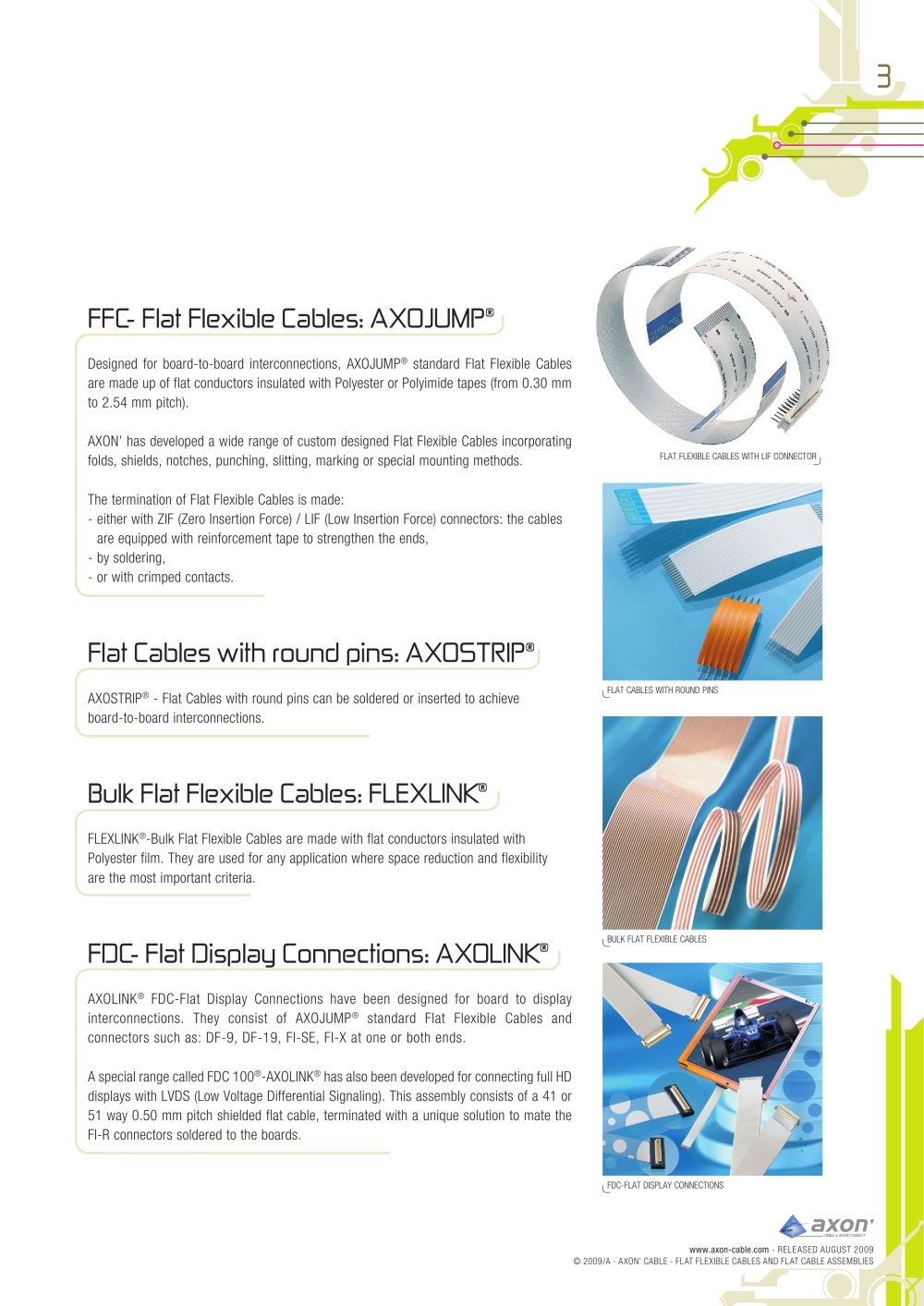

www.axon-cable.com - RELEASED AUGUST 2009 © 2009/A - AXON’ CABLE - FLAT FLEXIBLE CABLES AND FLAT CABLE ASSEMBLIES 3 BULk FLAT FLEXIBLE CABLES FDC-FLAT DISPLAy CONNECTIONS FLAT CABLES wITh ROUND PINS FFC- Flat Flexible Cables: AXOJUMP® Designed for board-to-board interconnections, AXOJUMP® standard Flat Flexible Cables are made up of flat conductors insulated with Polyester or Polyimide tapes (from 0.30 mm to 2.54 mm pitch). AXON’ has developed a wide range of custom designed Flat Flexible Cables incorporating folds, shields, notches, punching, slitting, marking or special mounting methods. The termination of Flat Flexible Cables is made: - either with ZIF (Zero Insertion Force) / LIF (Low Insertion Force) connectors: the cables are equipped with reinforcement tape to strengthen the ends, - by soldering, - or with crimped contacts. Flat Cables with round pins: AXOSTRIP® AXOSTRIP® - Flat Cables with round pins can be soldered or inserted to achieve board-to-board interconnections. Bulk Flat Flexible Cables: FLEXLINK® FLEXLINk®-Bulk Flat Flexible Cables are made with flat conductors insulated with Polyester film. They are used for any application where space reduction and flexibility are the most important criteria. FDC- Flat Display Connections: AXOLINK® AXOLINk® FDC-Flat Display Connections have been designed for board to display interconnections. They consist of AXOJUMP® standard Flat Flexible Cables and connectors such as: DF-9, DF-19, FI-SE, FI-X at one or both ends. A special range called FDC 100®-AXOLINk® has also been developed for connecting full hD displays with LVDS (Low Voltage Differential Signaling). This assembly consists of a 41 or 51 way 0.50 mm pitch shielded flat cable, terminated with a unique solution to mate the FI-R connectors soldered to the boards. FLAT FLEXIBLE CABLES wITh LIF CONNECTOR
