| n ► ► flHIOMTEK's Industrial Ethernet Solutions for Applied Communication Platforms | ||||||||||||||||||||||||||||||||||||||||||||||||||||

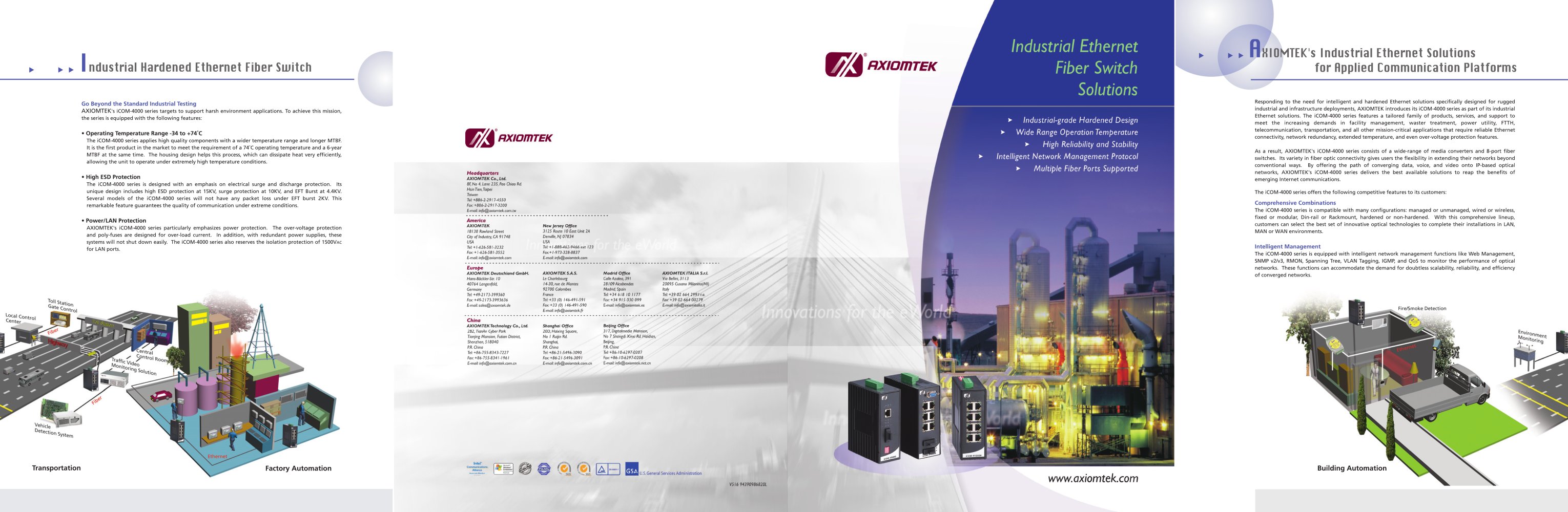

| Industrial Ethernet Fiber Switch Solutions | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| I ndustrial Hardened Ethernet Fiber Switch | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| RXIOmTEK | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| i | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Responding to the need for intelligent and hardened Ethernet solutions specifically designed for rugged industrial and infrastructure deployments, AXIOMTEK introduces its iCOM-4000 series as part of its industrial Ethernet solutions. The iCOM-4000 series features a tailored family of products, services, and support to meet the increasing demands in facility management, waster treatment, power utility, FTTH, telecommunication, transportation, and all other mission-critical applications that require reliable Ethernet connectivity, network redundancy, extended temperature, and even over-voltage protection features. As a result, AXIOMTEK's iCOM-4000 series consists of a wide-range of media converters and 8-port fiber switches. Its variety in fiber optic connectivity gives users the flexibility in extending their networks beyond conventional ways. By offering the path of converging data, voice, and video onto IP-based optical networks, AXIOMTEK's iCOM-4000 series delivers the best available solutions to reap the benefits of emerging Internet communications. The iCOM-4000 series offers the following competitive features to its customers: Comprehensive Combinations The iCOM-4000 series is compatible with many configurations: managed or unmanaged, wired or wireless, fixed or modular. Din-rail or Rackmount, hardened or non-hardened. With this comprehensive lineup, customers can select the best set of innovative optical technologies to complete their installations in LAN, MAN or WAN environments. Intelligent Management The iCOM-4000 series is equipped with intelligent network management functions like Web Management, SNMP v2/v3, RMON, Spanning Tree, VLAN Tagging, IGMP, and QoS to monitor the performance of optical networks. These functions can accommodate the demand for doubtless scalability, reliability, and efficiency of converged networks. | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Go Beyond the Standard Industrial Testing AXIOMTEK's iCOM-4000 series targets to support harsh environment applications. To achieve this mission, the series is equipped with the following features: ■ Operating Temperature Range -34 to +74'C The iCOM-4000 series applies high quality components with a wider temperature range and longer MTBF. It is the first product in the market to meet the requirement of a 74*C operating temperature and a 6-year MTBF at the same time. The housing design helps this process, which can dissipate heat very efficiently, allowing the unit to operate under extremely high temperature conditions. " High ESD Protection The iCOM-4000 series is designed with an emphasis on electrical surge and discharge protection. Its unique design includes high ESD protection at 15KV, surge protection at 10KV, and EFT Burst at 4.4KV. Several models of the iCOM-4000 series will not have any packet loss under EFT burst 2KV. This remarkable feature guarantees the quality of communication under extreme conditions. • Power/LAN Protection AXIOMTEK's iCOM-4000 series particularly emphasizes power protection. The over-voltage protection and poly-fuses are designed for over-load current. In addition, with redundant power supplies, these systems will not shut down easily. The iCOM-4000 series also reserves the isolation protection of 1500Vac for LAN ports. | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| > Industrial-grade Hardened Design ► Wide Range Operation Temperature ► High Reliability and Stability intelligent Network Management Protocol > Multiple Fiber Ports Supported | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| RXIOiTÌTEK | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Headquarters AXIOMTEK Co., Ltd. 8F, No 4, Lone 235, Pao Chiao Rrf. Hsinîkrt.îaipçi Taiwan Tel:+886-2-2917-4550 Fax:+8S6-2-29f7-320Q E-mail: infa@axiomtek com. rw | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| America AXIOMTEK t$H$ RgwbmJ Street Gty of Industry. CAP! 7+6 USA Tel: + 1-626-581-3232 Fax+ 1-626-58 i-3552 E-mail: ¡nfo@axiormek.cam | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| New Jersey Office 3!2S Raute 10 East Urti! 2A Pernze, H) 07334 USA Tel:*-!-888-462-9466 M ¡23 Fa»:+1-973-328-8837 E-moff: ¡nfo@axiomiek.com | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Europe AXIOMTEK DetmeWdnd GmbH. Hans-fioefcter-Str. tQ 40764 Langenfeld. Germany Tel:+49-21 73-399360 hr.+49-2173-3993636 E-mail: sdei@miomtek.de | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| AXIOMTEK S.A.S. Le Chaiìebaurg 14-30, rae de Mantes 9270O Colambes francs Tel:+33{0¡ I46A9I-S9I Fux;+33(0) 140-491-590 E-mail; ¡nfa@ax\amlek.fr | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Madrid Office Catte Azoto. 391 28l09Alíabendai Madrid, Spain Tel:+34 618 10 i J 77 rw:+34 915 030099 E-mail: info@axiomtek.s¡ | AXIOMTEK ITALIA S.rl Wo acuti. 3t 13 20095 Cusano Mtbnina(Ml) Italy Tel- +39 02 664 299.1 ta. Fax:+39 02 664 00279 E-mail: mfo@axiamitalia,it | |||||||||||||||||||||||||||||||||||||||||||||||||||
| Fire/Smoke Detection | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| !:0Câl Control Centa? - | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| China AXIQMTEKTechnofogf Co.. Ltd. 2B2, TwnAnCyòer Park Tianjing Mansion. Futían District, Shenzhen, S18040 PR. Chine Tel.+86-755-8343-7227 Fax:+86-755-8341-1961 E-m ori: info @ o «io-m tek. certi, en | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Betßtg Office 317, OiptalmesJia Mansiion, Ho 7 Shangdi Xmxi ftd. Haidian Äerj'Jrtg. PR. Chino Tel; +86-10-6297-0207 Fax: +86-10-629 7-Qî OS E-mail: info@axiomtek.net.tr> | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Shanghai Office 2QÙ, Htrrxirig Square, No J Rftfjjf? Rd Shanghai, P.k Chino Tel:+86-21-S496-3090 Fax:+86-21-5496-3091 E-mail: ¡nfa@axiotmek.eam.cn | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| IntelI "-J-r| r|-.l -11^,iT-L-lliz Alka»« | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Transportation | Building Automation | |||||||||||||||||||||||||||||||||||||||||||||||||||
| Factory Automation | A | |||||||||||||||||||||||||||||||||||||||||||||||||||
| U.S.General Services Administration | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| www.axiomtek.com | ||||||||||||||||||||||||||||||||||||||||||||||||||||
