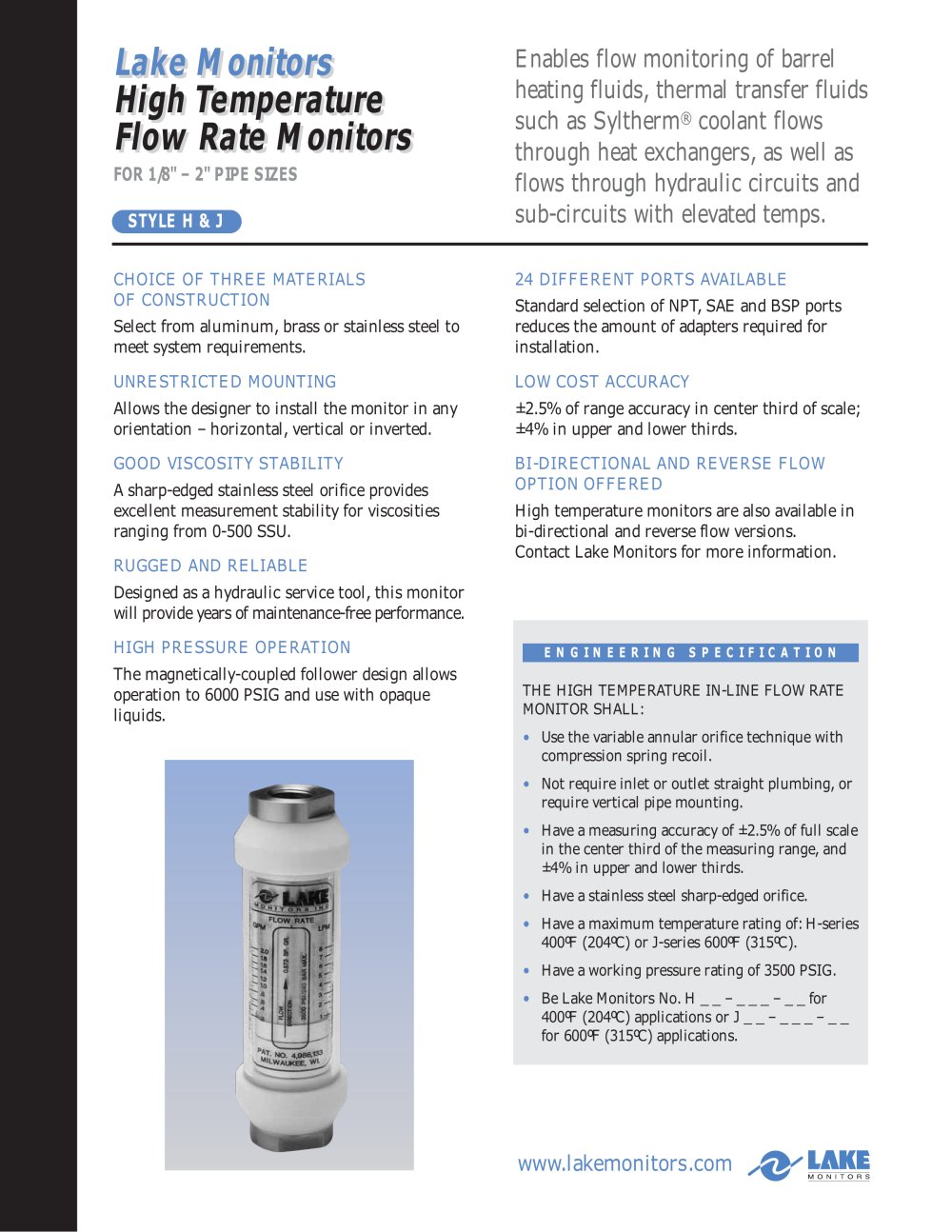

Lake Monitorsi TeeratureFlow Rate Monitors Lake Monitors i Teerature Flow Rate Monitors

Enables flow monitoring of barrelheating fluids, thermal transfer fluids such as Sylthermcoolant flows through heat echangers, as well as flows through hydraulic circuits and sub-circuits with eleated temps.

FOR 1/8" – 2" PIPE SIZES STYLE

CHOICE OF THREE MATERIALS OF CONSTRUCTION 24 DIFFERENT PORTS AVAILABLE Standard selection of NPT, SAE and BSP portsreduces the amount of adapters required for installation. Select from aluminum, brass or stainless steel tomeet system requirements. LOW COST ACCURACY ±2.5% of range accuracy in center third of scale;±4% in upper and lower thirds. UNRESTRICTED MOUNTING Allows the designer to install the monitor in anyorientation – horizontal, vertical or inverted. BI-DIRECTIONAL AND REVERSE FLOWOPTION OFFERED GOOD VISCOSITY STABILITY High temperature monitors are also available inbi-directional and reverse flow versions. Contact Lake Monitors for more information. A sharp-edged stainless steel orifice providesexcellent measurement stability for viscosities ranging from 0-500 SSU. RUGGED AND RELIABLE Designed as a hydraulic service tool, this monitorwill provide years of maintenance-free performance. HIGH PRESSURE OPERATION The magnetically-coupled follower design allowsoperation to 6000 PSIG and use with opaque liquids.
ENGINEERING SPECIFICATION THE HIGH TEMPERATURE IN-LINE FLOW RATE MONITOR SHALL: ? Use the variable annular orifice technique with compression spring recoil. ? Not require inlet or outlet straight plumbing, or require vertical pipe mounting. ? Have a measuring accuracy of ±2.5% of full scale in the center third of the measuring range, and ±4% in upper and lower thirds. ? Have a stainless steel sharp-edged orifice. ? Have a maximum temperature rating of: H-series 400F 204C or -series 600F 5C. ? Have a working pressure rating of 500 PSIG. ? Be Lake Monitors No. H _ _ – _ _ _ – _ _ for 400F 204C applications or _ _ – _ _ _ – _ _ for 600F 5C applications.

www.lakemonitors.com
